Chroma

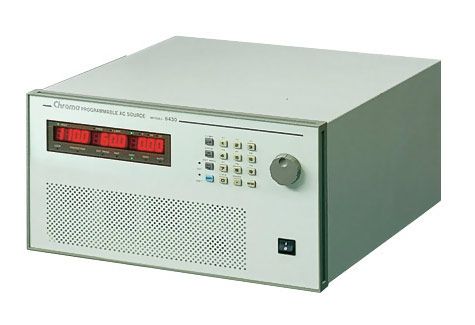

Chroma 6430
Programmable AC Source 1PH 375VA
0 – 31,8 V Rango de Voltaje de Salida
0 – 3,18 A Rango de Corriente de Salida
101 W Potencia Máxima de Salida
1 mV Resolución de Voltaje
0,1 mA Resolución de Corriente
| Atributo | Valor |
|---|---|
| Rango de Voltaje de Salida | 0 – 31,8 V |
| Rango de Corriente de Salida | 0 – 3,18 A |
| Potencia Máxima de Salida | 101 W |
| Resolución de Voltaje | 1 mV |
| Resolución de Corriente | 0,1 mA |
| Interfaz de Comunicación | GPIB / RS-232 |
| Número de Canales de Salida | 1 canal independiente |
| Tensión de Alimentación de Entrada | 100 – 240 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 213 mm x 88 mm x 380 mm |
| Peso | 5,5 kg |
| Model | 6430 |
|---|
Single Phase
Power/Phase: 3000VA
Voltage
Range/Phase-150V/300V/Auto
Accuracy- 0.2% of F.S (45-1KHz)
Resolution: 0.1V
Distortion: 0.5% for (45-500Hz)
1% for (>500-1KHz)
Line Regulation: 0.1%
Load Regulation: 0.1%
Temperature Coefficient: 0.02% per ?C
Maximum Current rms: 30A/15
Peak Current/ Phase-Crest Factor: 3(45-100Hz)
2.5(>100-1KHz)
Frequency
Range: 45-1000Hz
Accuracy; 01.%
Resolution: 01.Hz
Voltage range: 190-250V, 1?
Frequency range: 47-63Hz
Current: 23A Max.
Power Factor 0.98 Min.
Voltage/Phase
Range: 0-150V/O-300V
Accuracy (rms): 0.1% F.S. + 0.25%
Resolution: 0.1V
Current/Phase
Range: 0-140A
Accuracy (rms): 0.1% F.S. + 0.4%
Resolution: 0.01A
Power/Phase
Range: 0-3000W
Accuracy; 1% F.S. (CF<6)
Resolution: 0.1 W for P<1000W, 1W for P>1000W
Frequency
Range: 45-1000Hz
Accuracy: 0.02%
Resolution: 0.1Hz
Effieciency: 80% (Typical)
Protection: UVP, OVP, OVP, OPP, OTP, Short
