| Model | PV623 |
|---|

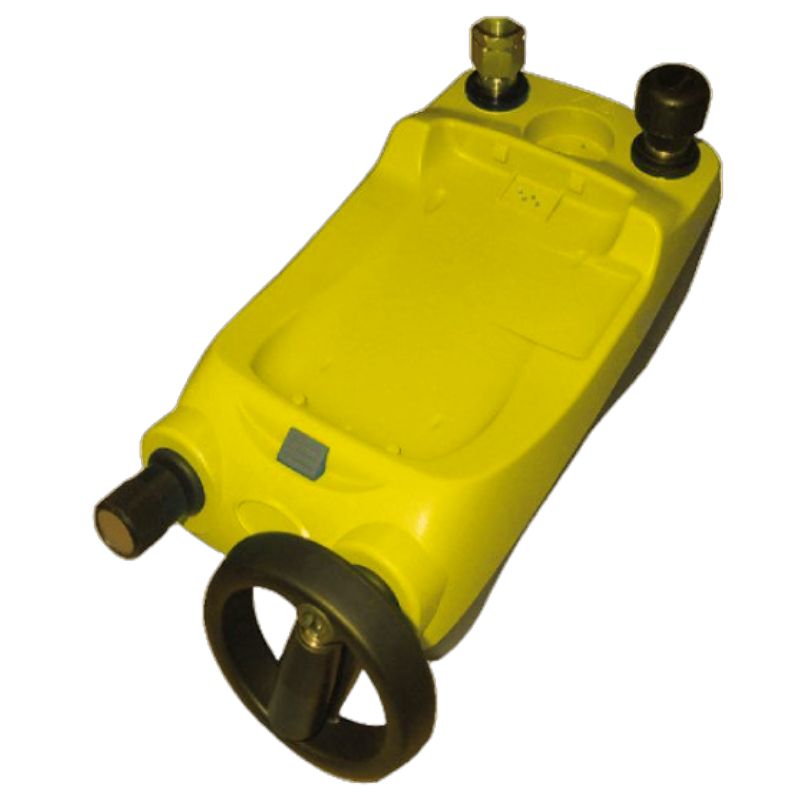

Druck PV623 Hydraulic Station
Druck PV623 Hydraulic Station is a high performance pressure-generating station which can generate pressure quickly and efficiently, without the need for system priming. This station is ATEX approved for stand-alone use in hazardous areas and designed for easy transportation and use in various settings. When combined with a reference instrument, such as the DPI104, Druck PV623 Hydraulic Station can be used as gauge comparator and pressure calibrator.
Druck PV623 Hydraulic Station have been designed for use with the DPI620 advanced multifunction calibrator and PM620 interchangeable pressure modules to provide a multi-parameter calibration system with unique pressure generation and measurement capabilities. Druck PV623 Hydraulic Station solves many of the problems associated with hydraulic pressure generation by generating pressure to 1000 bar (15000 psi) without the need for system priming and by providing a stable pressure within 1 minute.
Specifications for the Druck PV623 Hydraulic Station Include:
| Maximum pressure | 1000 bar (15000 psi) hydraulic |
| Pressure media | de-mineralized water or mineral oil |
| Operating temperature | -10 ° to 50 °C (14 ° to 122 °F) |
| Shock and vibration | BS EN 61010:2001; Def stan 66-31, 8.4 cat III |
