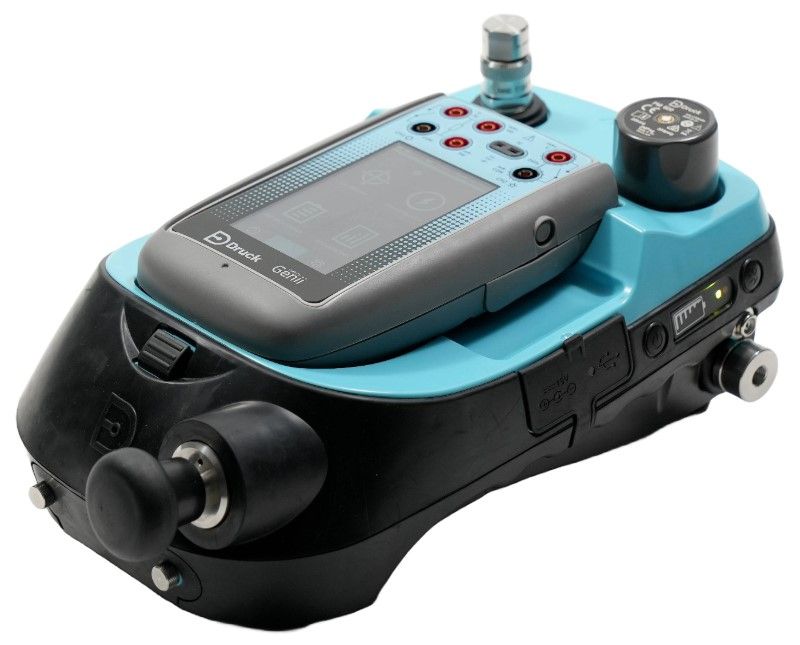

Druck PV624 Portable Hybrid Pressure Controller (Bluetooth)
Druck PV624 Portable Hybrid Pressure Controller (Bluetooth) Options:
- PV624 - B0 - Standard electrical connection to DPI620G
- PV624 - B1 - Standard electrical connection plus Bluetooth® wireless connectivity to DPI620G
| Model | PV624 |
|---|
Druck PV624 Portable Hybrid Pressure Controller
Druck PV624 Portable Hybrid Pressure Controller combines the advantages of manual pressure generation with fully automatic pressure generation and control. It is a part of the Genni advanced modular calibration system and can be used with a DPI620G electrical calibrator and interchangeable PM620/PM620T pressure modules. Druck PV624 Portable Hybrid Pressure Controller offers an easy and fast method to accurately maintain pressure set points. Hybrid pressure control also supports large test volumes and long battery life.
Druck PV624 Portable Hybrid Pressure Controller automatically selects between fast high volume manual pressure generation and fully automatic precise pressure generation to quickly achieve and accurately maintain a stable setpoint. PV624 is rugged, weatherproof, and suitable for the harshest environments. It can be used with a variety of pressure modules to cover a wide range of pressure ranges. With a robust design and tool-less pressure connection, Druck PV624 Portable Hybrid Pressure Controller is ideally suited to perform pressure testing and calibrations in the field.
Specifications for the Druck PV624 Portable Hybrid Pressure Controller Include:
| Hybrid pressure control range | -0.9barg (-13 psig) to 20barg (300 psig) |
| Maximum over range pressure | 120%FS |
| Barometer pressure measurement range | 800-1100 mbar abs |
| Pressure control stability | 50ppm of PM620 Full Scale |
