EA Elektro-Automatik BT21000-80
| Atributo | Valor |
|---|---|
| Tensión de entrada | 21000 V |
| Corriente máxima | 80 A |
| Potencia máxima | Hasta 1680 kW |
| Tipo de equipo | Banco de pruebas de baterías |
| Modos de operación | Carga y descarga regenerativa |
| Interfaz de comunicación | CAN, Ethernet, RS-232/RS-485 |
| Eficiencia energética | Alta eficiencia con retroalimentación regenerativa a la red |
| Rango de temperatura de operación | 0 °C a 40 °C |
| Protecciones integradas | Sobretensión, sobrecorriente, sobretemperatura y cortocircuito |
| Normativas y certificaciones | CE, conforme a normativas de seguridad IEC/EN |
EA Elektro-Automatik BT21000-80 Options:
- BT21000-80 - 02113018 - Standard (no water cooling)
- BT21000-80 - 02123008 - Standard + Water Cooling (stainless steel)
| Model | BT21000-80 |
|---|

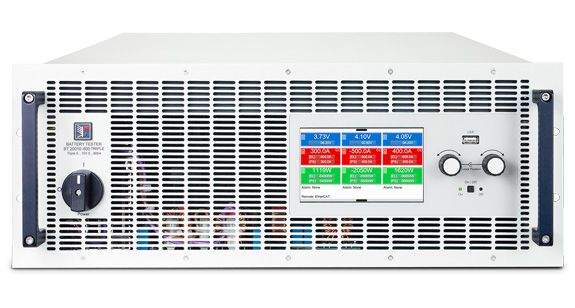

ELEKTRO-AUTOMATIK BT21000-80 Battery Tester
The Elektro-Automatik BT21000-80 are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 95%. The output per channel of the battery tester with regenerative energy recovery BT21000-80 Triple with a DC voltage of up to 1000 V allows positive and negative currents of up to 80 A as a two quadrant device. The flexible output stages (autoranging) provide the user with a wide voltage, cur and power range and hence a wider field of working than traditional battery tester.
A typical application for the Elektro-Automatik BT21000-80 battery tester with regenerative energy recovery from Elektro-Automatik is the testing of the electrical characteristics of a battery. The wide application spectrum covers cell, module or pack tests, the determination of the SOH (State-of-Health) for a second life classification as well as the End-of-Line (EOL) test. These applications put many demands on power electronics which are fulfilled by the BT21000-80 range. The excellent features of this device range are: measurement of voltage and cur with the required accuracy and performance, reproducibility and reliability of these data and the flexible usability. Additional applications include the simulation of batteries as single cells, modules, or packs. These simulations aid in the optimal configuration of energy storage as well as the supplied components under test.
Specifications for the ELEKTRO-AUTOMATIK BT21000-80 Battery Tester Include:
| Voltage Range | 0 - 1000 V |
| Cur Range | ± 80 A |
| Max Power Range | ± 30kW |
| Efficiency Sink/Source (up to) | 95.8 % |
