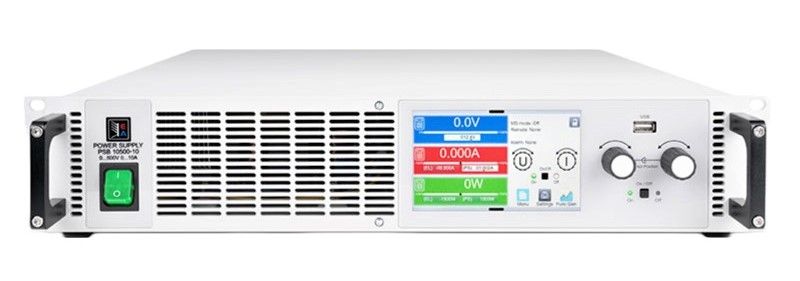

EA Elektro-Automatik PSB10060-60
| Atributo | Valor |
|---|---|
| Tensión de salida máxima | 60 V |
| Corriente de salida máxima | 60 A |
| Potencia máxima | 10.000 W |
| Tensión de entrada | 400 V CA trifásico (3L/N/PE), 50/60 Hz |
| Función bidireccional | Fuente de alimentación y carga electrónica en un solo equipo |
| Interfaz de comunicación | USB, Ethernet, RS-232; compatible con SCPI y ModBus RTU |
| Factor de potencia | > 0,99 |
| Eficiencia | Hasta un 95% |
| Dimensiones (An x Al x Pr) | 19" / 4U (unidad de rack estándar) |
| Regulación de salida | Modos CV, CC y CP (tensión constante, corriente constante y potencia constante) |
| Model | PSB10060-60 |
|---|
ELEKTRO-AUTOMATIK PSB10060-60 Bi-Directional Power Supply
The Elektro-Automatik PSB10060-60 is available as a laboratory power supply, electronic load with power feedback and a bi-directional power supply. The unit is programmable via analogue and digital interfaces as well as via the 5 " TFT touch display. They offer the same configuration and functionality as those in this series with higher power. The EA PSB10060-60 has an AC mains input with an extended range, from 110V to 240VAC. The PSB10060-60 bidirectional DC power supply features 5 €³ s touchscreen display for intuitive control and programming. The intelligent interface allows you to configure and test quickly.
The EA PSB10060-60 bidirectional dc power supplies come standard with an arbitrary waveform function generator, swappable digital interface module and built-in test routines for battery test, fuel cell simulation, photovoltaic simulation with MPP tracking, and more. All EA bidirectional DC power supplies offer true autoranging which means that the full source and sink power of the devices is available over a wider operating range. The lower the cur required in these ranges the higher the voltage available to maintain full power output. This allows a wider range of DUTs to be tested with a single power supply. EA's autoranging feature provides full power, output as well as input, all the way down to 33% of system voltage and current.
Specifications for the ELEKTRO-AUTOMATIK PSB10060-60 Bi-Directional Power Supply Include:
| Voltage | 0 - 60V |
| Current | 0 - 60A |
| Total Power | 1500W |
| Power factor | >0.99 |
