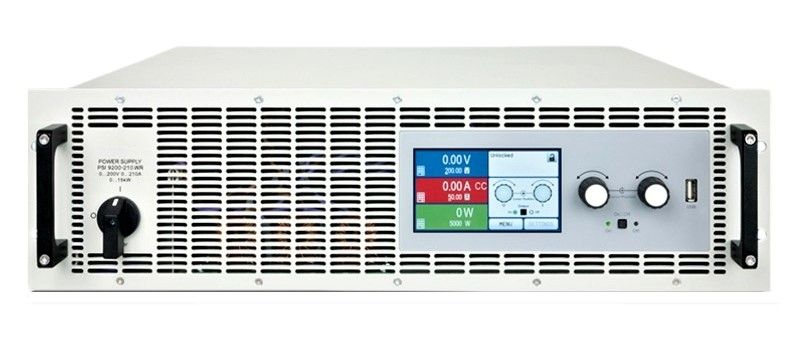

EA Elektro-Automatik PSI9750-60
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 – 750 V CC |
| Corriente de salida | 0 – 60 A |
| Potencia de salida | 15000 W (15 kW) |
| Tensión de entrada | 3 fases, 400 V CA (±10%), 50/60 Hz |
| Interfaz de comunicación | USB, RS-232, Analógica (estándar); opcional GPIB, Ethernet, CAN, Profibus |
| Rendimiento (eficiencia) | Hasta un 95% |
| Regulación de tensión | < 0,05% del valor nominal |
| Regulación de corriente | < 0,05% del valor nominal |
| Dimensiones (An x Al x Pr) | 483 mm x 133 mm (3U) x 640 mm |
| Temperatura de funcionamiento | 0 °C – 50 °C |
EA Elektro-Automatik PSI9750-60 Options:
- PSI9750-60 - 06238368 - 208 V model (188...229 V AC input)
- PSI9750-60 - 06270368 - Wide Range model (342...528 V AC input)
| Model | PSI9750-60 |
|---|
ELEKTRO-AUTOMATIK PSI9750-60 DC Power Supply
The Elektro-Automatik PSI9750-60 DC power supply is a microprocessor-controlled high efficient power supply which offers multiple functions and features in it's standard version. User-friendly, interactive menu navigation makes the use of this equipment remarkably easy and most effective. PSI9750-60 is equipped with a flexible autoranging output stage which provides a higher output voltage at lower output current, or a higher output cur at lower output voltage, always limited to the adjustable power set value or the rated power. Therefore, by the use of just Elektro-Automatik PSI9750-60 DC power supply, a wide range of applications can be covered.
The Elektro-Automatik PSI9750-60 DC power supply includes a software based function generator which can generate typical functions, and apply them to either the output voltage or the output current. The generator can be completely configured and controlled by using the touch panel on the front of the device, or by remote control via one of the digital interfaces. PSI9750-60 is included with a control software for Windows PC, which allows for the remote control of multiple identical or even diffe types of devices. It has a clear interface for all set and actual values, a direct input mode for SCPI and ModBus RTU commands, a firmware update feature and the semi-automatic table control named €œSequencing ". For protection of the equipment connected, it's possible to set an overvoltage protection threshold (OVP), as well as one for overcur (OCP) and overpower (OPP).
Specifications for the ELEKTRO-AUTOMATIK PSI9750-60 DC Power Supply Include:
| Voltage | 0 to 750V |
| Current | 0 to 60A |
| Total Power | 15kW |
| Efficiency | 94% |
