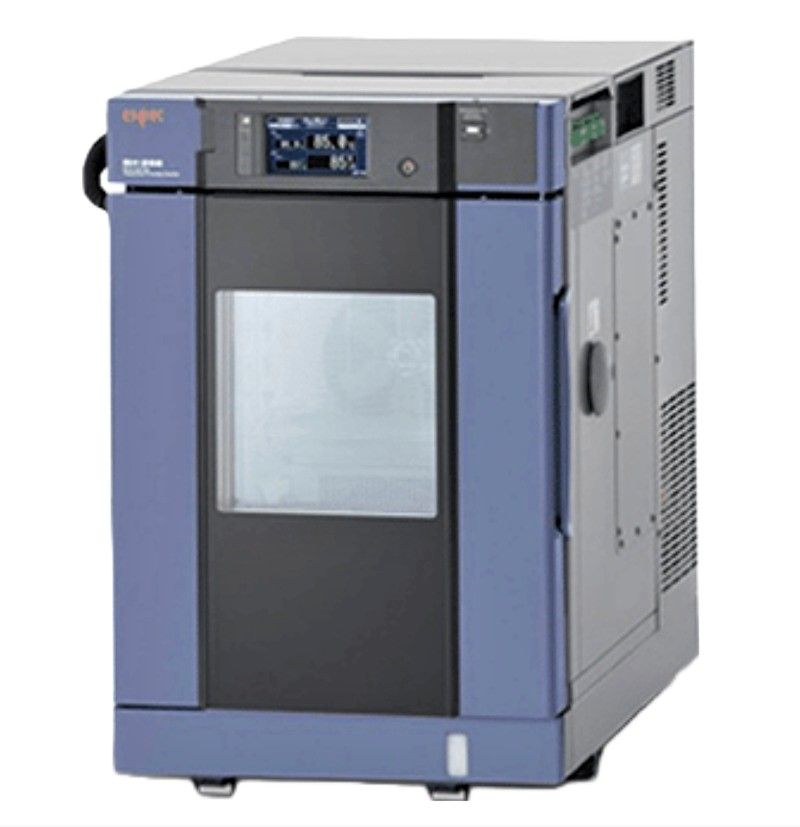

Espec SH-262

Espec SH-262 Options:

• SH-262 - Viewing Window (Door) - Viewing window mounted on the chamber door with transparent metal depositioned thin film heater to prevent fogging; Effective view: 22.5L type W215×H215 mm
• SH-262 - Roof Top Viewing Window - Viewing window mounted on top of the chamber; Effective view: W181×D107 mm
• SH-262 - Inner Glass Door - Glass door provided between test area and chamber door to observe specimens; equipped with wiper for humidity models
• SH-262 - Hand-in Port (Inner Glass Door) - φ130mm ×1 at center of inner glass door with radial rubber seal for specimen manipulation
• SH-262 - Hand-in Port (Side Wall) - φ130mm ×1 on left or right side wall with radial rubber seal for specimen manipulation
• SH-262 - Additional Cable Port (Left Side) φ25mm - Additional cable port on left side, φ25 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Left Side) φ50mm - Additional cable port on left side, φ50 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Left Side) φ100mm - Additional cable port on left side, φ100 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Left Side) Flat - Flat cable port W100×H25 mm on left side, includes rubber plug and cap
• SH-262 - Additional Cable Port (Right Side) φ25mm - Additional cable port on right side, φ25 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Right Side) φ50mm - Additional cable port on right side, φ50 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Right Side) φ100mm - Additional cable port on right side, φ100 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Right Side) Flat - Flat cable port W100×H25 mm on right side, includes rubber plug and cap
• SH-262 - Additional Cable Port (Ceiling) φ25mm - Additional cable port on ceiling, φ25 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Ceiling) φ50mm - Additional cable port on ceiling, φ50 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Ceiling) φ100mm - Additional cable port on ceiling, φ100 mm, includes rubber plug and cap
• SH-262 - Additional Cable Port (Ceiling) Flat - Flat cable port W100×H25 mm on ceiling, includes rubber plug and cap
• SH-262 - Cable Port Rubber Plug φ25mm - Rubber plug for φ25 mm cable port
• SH-262 - Cable Port Rubber Plug φ50mm - Rubber plug for φ50 mm cable port
• SH-262 - Cable Port Rubber Plug φ100mm - Rubber plug for φ100 mm cable port
• SH-262 - Cable Port Rubber Plug Spiral-Wrapped - Spiral-wrapped plug 5×50×2000 mm
• SH-262 - Cable Port Rubber Plug Flat - Rubber plug for flat cable port
• SH-262 - EZ Connect Cable Port Plug - Cable port plug with embedded terminals (inside and outside); Spec: AC 6 to 250V 0.1 to 3A / AC 1.5 to 250V 0.1 to 3A; Connector: Block 10P (+5P, -5P); Temp range: -70 to +180°C, 30 to 95%rh
• SH-262 - Continuous Water Supply (With Pressure-Reducing Valve) - Connection port with pressure-reducing valve for continuous water supply
• SH-262 - Continuous Water Supply (Without Pressure-Reducing Valve) - Connection port without pressure-reducing valve for continuous water supply
• SH-262 - Roof Top Water Tank - Additional 5L water tank on chamber ceiling for extended continuous operation
• SH-262 - Automatic Water Refill - Automatically refills water to humidifying tray and wick pan periodically
• SH-262 - Wet-Bulb Wick - 1 box (24 wicks, 1 dropper)
• SH-262 - Shelf - Additional stainless steel shelf (18-8 Cr-Ni); load capacity 0.5 kg; max 5 stages at 35 mm pitch; effective dimensions W284×H34×D231 mm
• SH-262 - Specimen Basket - For small specimens; 18-8 Cr-Ni stainless steel; W206×H40×D156 mm
• SH-262 - Interface RS-485 - RS-485 communication port to connect chamber to PC
• SH-262 - Interface RS-232C - RS-232C communication port to connect chamber to PC
• SH-262 - Interface GPIB - GPIB communication port to connect chamber to PC
• SH-262 - Communication Cable RS-485 5m - RS-485 communication cable, 5 m
• SH-262 - Communication Cable RS-485 10m - RS-485 communication cable, 10 m
• SH-262 - Communication Cable RS-485 30m - RS-485 communication cable, 30 m
• SH-262 - Communication Cable RS-232C 1.5m - RS-232C communication cable, 1.5 m
• SH-262 - Communication Cable RS-232C 3m - RS-232C communication cable, 3 m
• SH-262 - Communication Cable RS-232C 6m - RS-232C communication cable, 6 m
• SH-262 - Communication Cable GPIB 2m - GPIB communication cable, 2 m
• SH-262 - Communication Cable GPIB 4m - GPIB communication cable, 4 m
• SH-262 - Noise Reduction Rear Cover - Rear cover to lower chamber noise, direct exhaust air toward ceiling, and store wires
• SH-262 - Cable Organizer Kit - Includes cable ties, magnetic cable cover, and dew tray
• SH-262 - Paperless Recorder (Portable, Temp & Humidity) - Portable paperless recorder; inputs: Temperature 1, Humidity 1 (4 more channels available); Flash memory 8MB internal; CF card port + USB memory port external; sampling interval 5 sec.
• SH-262 - Paperless Recorder (Portable, Temperature Only) - Portable paperless recorder; inputs: Temperature 1 (5 more channels available); Flash memory 8MB internal; CF card port + USB memory port external
• SH-262 - Paperless Recorder (Option Box, Temp & Humidity) - Option box-installed paperless recorder; inputs: Temperature 1, Humidity 1 (4 more channels available)
• SH-262 - Paperless Recorder (Option Box, Temperature Only) - Option box-installed paperless recorder; inputs: Temperature 1 (5 more channels available)
• SH-262 - Temperature & Humidity Recorder (-50 to +150°C) - Dot recording; effective width 100 mm; Temperature 5, Humidity 1; range -50 to +150°C / 0 to 100%rh
• SH-262 - Temperature & Humidity Recorder (-100 to +150°C) - Dot recording; effective width 100 mm; Temperature 5, Humidity 1; range -100 to +150°C / 0 to 100%rh
• SH-262 - Temperature & Humidity Recorder (-100 to +200°C) - Dot recording; effective width 100 mm; Temperature 5, Humidity 1; range -100 to +200°C / 0 to 100%rh
• SH-262 - Temperature Recorder (-100 to +200°C) - Dot recording; effective width 100 mm; Temperature 6; range -100 to +200°C
• SH-262 - Wet-Bulb Temperature Recorder Output Terminal - Outputs test area wet-bulb temperature (SH type only)
• SH-262 - Thermocouple 2m - Thermocouple type T (Copper/Copper-Nickel) with brass ball tip, 2 m
• SH-262 - Thermocouple 4m - Thermocouple type T (Copper/Copper-Nickel) with brass ball tip, 4 m
• SH-262 - Thermocouple 6m - Thermocouple type T (Copper/Copper-Nickel) with brass ball tip, 6 m
• SH-262 - External Output Terminal Set (×3) - Time up output terminal, time signal terminal (up to 10 additional), and temp/humidity SP attainment output; requires option box
• SH-262 - Option Box - Box for installing additional options (paperless recorder, external output terminal set, specimen temperature control, program-synched DC power supply); standalone or stand-embedded
• SH-262 - Specimen Temperature Control (Insulated Type) - Sensors attached to specimen for exposure tests providing temperature stress to specimen
• SH-262 - Airflow Adjuster - For tests requiring low or constant airflow velocity; 4 setting levels
• SH-262 - Overcool Protector - Stops chamber if temperature decreases excessively to prevent specimen damage
• SH-262 - Emergency Stop Pushbutton (Without Guard) - Stops chamber immediately
• SH-262 - Emergency Stop Pushbutton (With Guard) - Stops chamber immediately, with guard
• SH-262 - External Device Alarm Input Terminal - Terminal to stop chamber operation if linked external device malfunctions
• SH-262 - Door Opening Signal Output Terminal - Terminal that outputs door open status; capable of controlling external device and recording temperature disturbance history
• SH-262 - Chamber Dew Tray - Prevents water leaks from chamber onto floor
• SH-262 - Power Plug (China) - Power plug for China; 3 cores/round type
• SH-262 - Operation Manual CD - Operation manual on CD
• SH-262 - Operation Manual Booklet - Operation manual in booklet form
• SH-262 - Testing and Inspection Report - Report documenting testing and inspection results
• SH-262 - Test Data - Test data documentation
• SH-262 - Temperature & Humidity Uniformity Measurement - Uniformity measurement report
• SH-262 - Calibration Report - Calibration report documentation
• SH-262 - Calibration Certificate - Calibration certificate documentation
• SH-262 - Traceability System Chart - Traceability system chart documentation
• SH-262 - Traceability Certificate - Traceability certificate documentation
• SH-262 - Stand C Type (Dolly) - Dolly-type stand with casters and leveling feet; depth 860 mm (750 mm for 222/242/262/242-5)
• SH-262 - Stand M Type (With Shelf) - Mid-type stand with adjustable shelf (3 pitches), casters and leveling feet; depth 860 mm (750 mm)
• SH-262 - Stand M Type (With Water Tank) - Mid-type stand with water tank; capacity 20L (10L), drainage capacity 20L (10L); depth 952 mm (842 mm)
• SH-262 - Stand L Type (With Shelf) - Low-type stand with adjustable shelf (3 pitches), casters and leveling feet; shelf size W480×D850 mm (W378×D740 mm); depth 860 mm (750 mm)
• SH-262 - Stand L Type (With Option Box) - Low-type stand with option box, casters and leveling feet; depth 860 mm (750 mm)
• SH-262 - Stand L Type (With 19 Inch Rack) - Low-type stand with 19-inch rack, casters and leveling feet; depth 860 mm (750 mm)
• SH-262 - Stand L Type (With Water Tank 18L) - Low-type stand with built-in 18L water tank; requires connection port without pressure-reducing valve
• SH-262 - Stand H Type (With Shelf) - High-type stand with shelf, casters and leveling feet; shelf size W577×D900 mm (W473×D790 mm); depth 925 mm (815 mm)
• SH-262 - Stand H Type (With Option Box) - High-type stand with option box for paperless recorder, output terminal set, specimen temperature control, program-synched DC power supply
• SH-262 - Stand H Type (With 19 Inch Rack) - High-type stand with 19-inch rack for instrumentation or controllers
