Espec

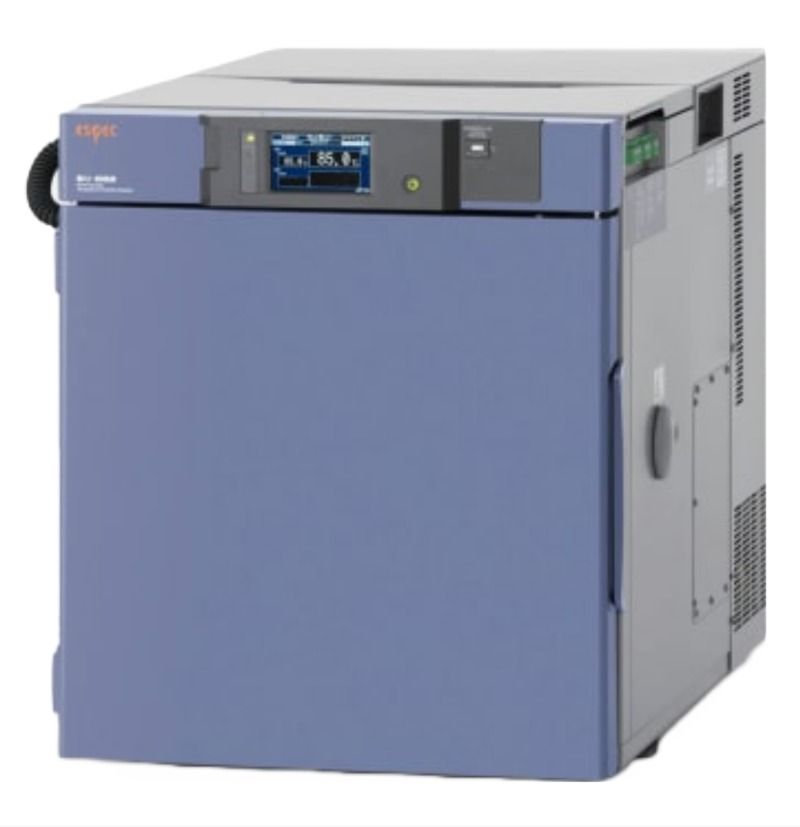

Espec SU-642
Temperature Chamber, -40C to 150C, 2.2 Cu Ft
-40°C a +150°C Rango de Temperatura
20% a 98% HR Rango de Humedad
642 litros Volumen Interior
±2°C Uniformidad de Temperatura
±3% HR Uniformidad de Humedad
| Atributo | Valor |
|---|---|
| Rango de Temperatura | -40°C a +150°C |
| Rango de Humedad | 20% a 98% HR |
| Volumen Interior | 642 litros |
| Uniformidad de Temperatura | ±2°C |
| Uniformidad de Humedad | ±3% HR |
| Velocidad de Cambio de Temperatura | 3°C/min (calentamiento), 1°C/min (enfriamiento) |
| Dimensiones Interiores (An x Al x Pr) | 900 mm x 900 mm x 790 mm |
| Alimentación Eléctrica | 200-230V, trifásico, 50/60 Hz |
| Controlador | Pantalla táctil programable con hasta 99 programas |
| Refrigerante | R-404A / R-23 (sistema de cascada) |
Espec SU-642 Options:
- SU-642 - Viewing Window - Viewing window mounted on door or top of chamber with transparent metal depositioned thin film heater to prevent fogging
- SU-642 - Roof Top Viewing Window - Effective view W181×D107 mm, mounted on top of chamber
- SU-642 - Inner Glass Door - Glass door between test area and chamber door for wide view inside chamber
- SU-642 - Hand-In Port - φ130mm port for inner glass door or chamber side wall to manipulate specimen under test
- SU-642 - Additional Cable Port - Available in φ25mm, φ50mm, φ100mm, or flat cable port (W100×H25mm); left side, right side, or ceiling locations
- SU-642 - Cable Port Rubber Plug - For φ25mm, φ50mm, φ100mm, spiral-wrapped plug, or flat cable port
- SU-642 - EZ Connect Cable Port Plug - Cable port plug with embedded terminals (inside and outside); AC 6 to 250V 0.1 to 3A; Block 10P connector
- SU-642 - Shelf - Additional 18-8 Cr-Ni Stainless steel shelf; 60L type: W392×H21×D378mm, load capacity 5kg
- SU-642 - Specimen Basket - For small specimens; W206×H40×D156mm, 18-8 Cr-Ni Stainless steel
- SU-642 - Noise Reduction Rear Cover - Directs exhaust air toward ceiling, reduces noise, stores wires inside cover
- SU-642 - Cable Organizer Kit - Includes cable ties, magnetic cable cover, and dew tray
- SU-642 - Interface RS-485 - RS-485 communication port to connect chamber to PC
- SU-642 - Interface RS-232C - RS-232C communication port to connect chamber to PC
- SU-642 - Interface GPIB - GPIB communication port to connect chamber to PC
- SU-642 - Communication Cable RS-485 - Available in 5m, 10m, or 30m lengths
- SU-642 - Communication Cable RS-232C - Available in 1.5m, 3m, or 6m lengths
- SU-642 - Communication Cable GPIB - Available in 2m or 4m lengths
- SU-642 - Paperless Recorder - Records temperature; portable type or installed on option box; flash memory 8MB internal, CF card and USB external
- SU-642 - Temperature Recorder - Dot recording method, effective width 100mm paper, up to 6 temperature inputs; range -100 to +200°C
- SU-642 - Thermocouple - Type T (Copper/Copper-Nickel) with brass ball tip; available in 2m, 4m, or 6m
- SU-642 - External Output Terminal Set ×3 - Time up output terminal, time signal terminal, and temp SP attainment output; requires option box
- SU-642 - Program-Synched DC Power Supply - DC power supply synchronized with program operations; available in 5V, 12V, 15V, 24V, or 48V
- SU-642 - Option Box - Box for installing paperless recorder, external output terminal set, specimen temperature control, or program-synched DC power supply
- SU-642 - Specimen Temperature Control - Insulated type sensors attached to specimen for temperature stress exposure tests
- SU-642 - Airflow Adjuster - For tests requiring low or constant airflow velocity; 4 setting levels
- SU-642 - Overcool Protector - Stops chamber if temperature decreases excessively to prevent specimen damage
- SU-642 - Emergency Stop Pushbutton - Stops chamber immediately; available with or without guard
- SU-642 - Chamber Dew Tray - Prevents water leaks from chamber onto floor
- SU-642 - External Device Alarm Input Terminal - Terminal to stop chamber operation when linked external device malfunctions
- SU-642 - Door Opening Signal Output Terminal - Terminal that outputs door open status for external device control
- SU-642 - Power Plug - Power plug for China, 3 cores/round type
- SU-642 - Stand H Type - High type stand with casters; available with shelf, option box, or 19-inch rack
- SU-642 - Stand M Type - Mid type stand with casters; available with shelf or water tank (20L/10L capacity)
- SU-642 - Stand L Type - Low type stand with casters; available with shelf, water tank (18L), option box, or 19-inch rack
- SU-642 - Stand C Type - Dolly type stand with casters
- SU-642 - Operation Manual CD - Operation manual on CD
- SU-642 - Operation Manual Booklet - Printed operation manual booklet
- SU-642 - Testing and Inspection Report - Factory testing and inspection report
- SU-642 - Test Data - Factory test data
- SU-642 - Temperature Uniformity Measurement - Temperature uniformity measurement report
- SU-642 - Calibration Report - Calibration report
- SU-642 - Calibration Certificate - Calibration certificate
- SU-642 - Traceability System Chart - Traceability system chart
- SU-642 - Traceability Certificate - Traceability certificate
| Model | SU-642 |
|---|
La Espec SU-642 es una cámara térmica de gran capacidad diseñada para ofrecer precisión en entornos extremos. Proporciona un control de temperatura preciso y de amplio rango, lo que la convierte en una opción confiable para pruebas aeroespaciales, automotrices e industriales.
Su construcción robusta permite programas de prueba prolongados, garantizando resultados estables incluso durante ciclos extendidos. Con un rendimiento avanzado, cumple eficazmente con las exigencias de los entornos de prueba más demandantes.
Testwall puede suministrar la Espec SU-642 usada, completamente probada. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación de la Espec SU-642.
