Exfo

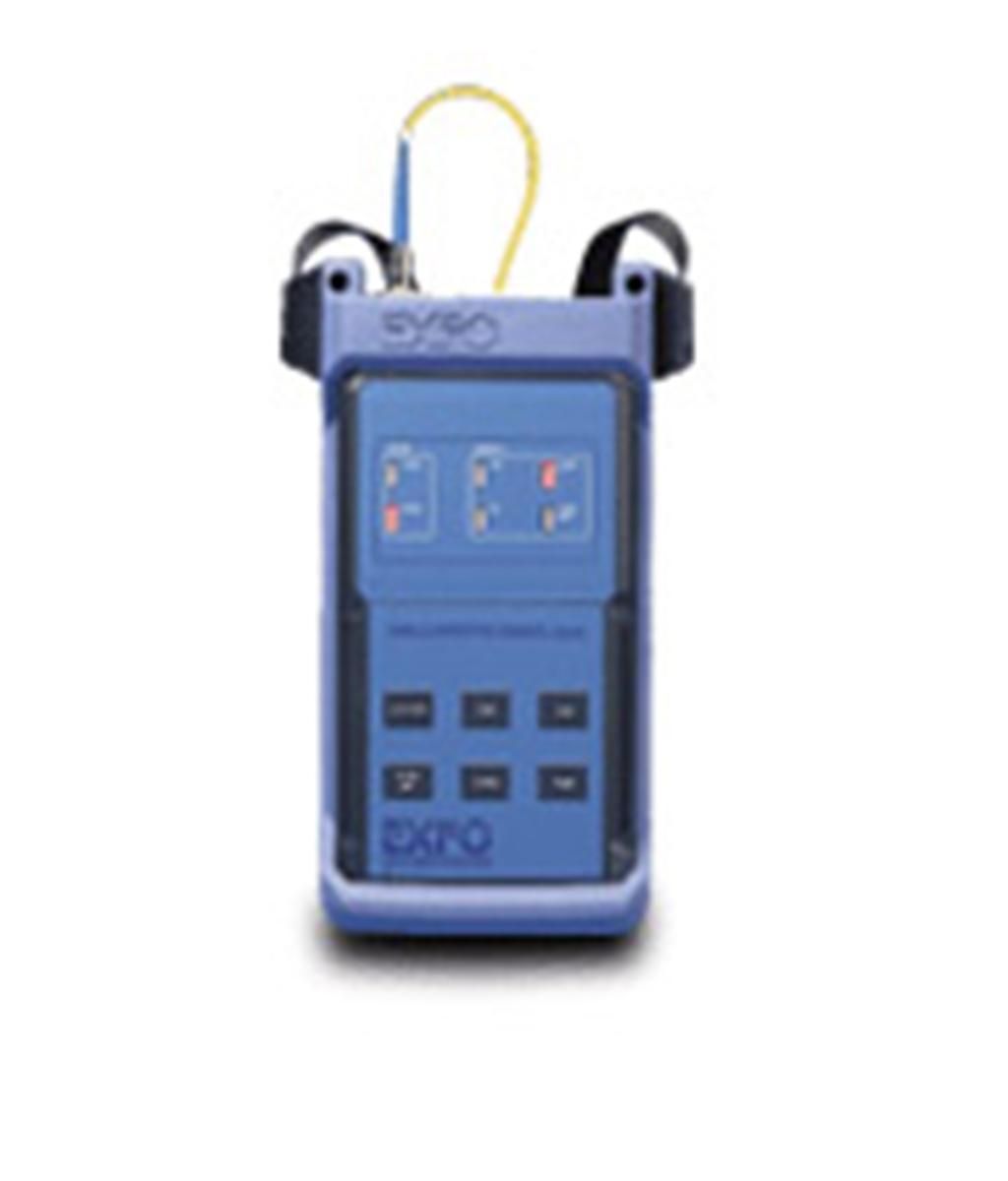

Exfo FLS-110
Optical Source
1310 / 1550 nm Longitud de onda
LED / Láser estabilizado Tipo de fuente de luz
-7 dBm (típico) Potencia de salida
±0,05 dB durante 15 minutos Estabilidad de potencia
Universal (adaptadores intercambiables) Tipo de conector
| Atributo | Valor |
|---|---|
| Longitud de onda | 1310 / 1550 nm |
| Tipo de fuente de luz | LED / Láser estabilizado |
| Potencia de salida | -7 dBm (típico) |
| Estabilidad de potencia | ±0,05 dB durante 15 minutos |
| Tipo de conector | Universal (adaptadores intercambiables) |
| Autonomía de la batería | Hasta 200 horas de funcionamiento continuo |
| Tipo de batería | Alcalina AA (2 unidades) |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Dimensiones | 145 mm x 70 mm x 32 mm |
| Peso | 230 g (con baterías) |
Exfo FLS-110 Options:
- FLS-110 - 02P - 1310 nm LED source
- FLS-110 - 03P - 1550 nm LED source
- FLS-110 - 58 - FC/APC narrow key connector
- FLS-110 - 89 - FC/UPC connector
- FLS-110 - 91 - SC/UPC connector
- FLS-110 - EI-EUI-28 - UPC/DIN 47256 connector
- FLS-110 - EI-EUI-76 - UPC/HMS-10/AG connector
- FLS-110 - EI-EUI-89 - UPC/FC connector
- FLS-110 - EI-EUI-90 - UPC/ST connector
- FLS-110 - EI-EUI-91 - UPC/SC connector
- FLS-110 - EI-EUI-95 - UPC/E-2000 connector
- FLS-110 - EA-EUI-28 - APC/DIN 47256 connector
- FLS-110 - EA-EUI-89 - APC/FC connector
- FLS-110 - EA-EUI-91 - APC/SC connector
- FLS-110 - EA-EUI-95 - APC/E-2000 connector
| Model | FLS-110 |
|---|
The Exfo FLS-110 optical source offers CW and 2 kHz modulation for fiber identification, complete status indicators, low battery indicator and an auto-off function. Dual Wavelength 1310/1550 nm laser output. The unit is housed in a sturdy, waterproof case surrounded by a shock-absorbing holster that protects the instrument in tough field conditions. Features high and low power levels to maximize battery life.
If you are looking for a new or well-maintained used Exfo FLS-110 optical source refurbished with warranty, contact us or request a quote today.
