Exfo

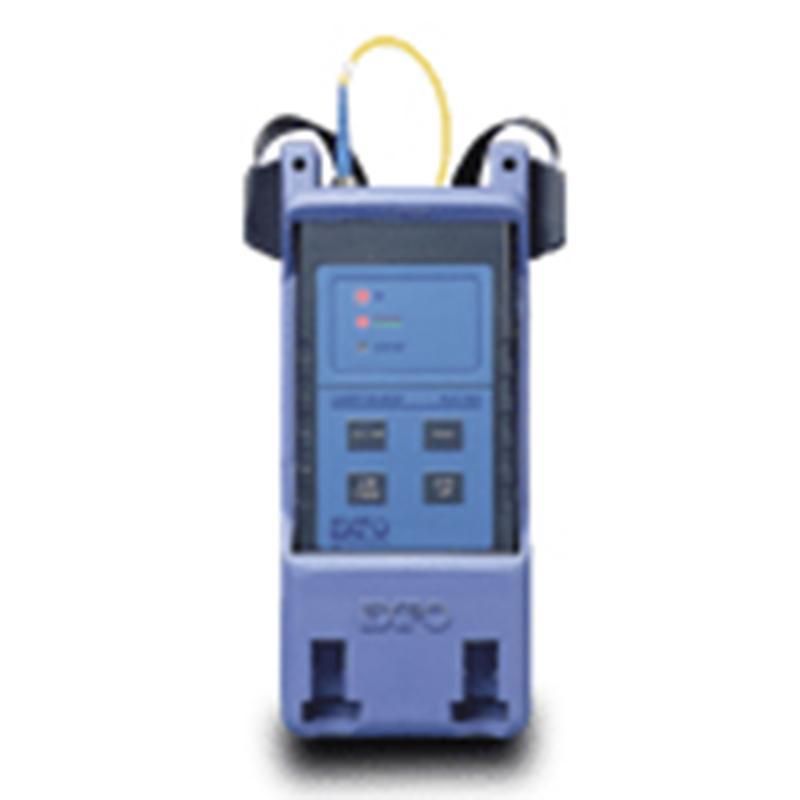

Exfo FLS-135A
Singlemode Light Source
1310 / 1550 nm Longitud de onda
-5 dBm (nominal) Potencia de salida
±0,05 dB durante 15 minutos Estabilidad de potencia
Láser Fabry-Perot (FP) Tipo de fuente de luz
SC/APC intercambiable Tipo de conector
| Atributo | Valor |
|---|---|
| Longitud de onda | 1310 / 1550 nm |
| Potencia de salida | -5 dBm (nominal) |
| Estabilidad de potencia | ±0,05 dB durante 15 minutos |
| Tipo de fuente de luz | Láser Fabry-Perot (FP) |
| Tipo de conector | SC/APC intercambiable |
| Alimentación | 2 pilas AA (1,5 V) |
| Duración de la batería | Hasta 200 horas de uso continuo |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Dimensiones | 155 mm x 68 mm x 32 mm |
| Peso | Aproximadamente 200 g (con pilas) |
Exfo FLS-135A Options:
- FLS-135A - 02P - 1310 nm LED source
- FLS-135A - 03P - 1550 nm LED source
- FLS-135A - 58 - FC/APC narrow key connector
- FLS-135A - 89 - FC/UPC connector
- FLS-135A - 91 - SC/UPC connector
- FLS-135A - EI-EUI-28 - UPC/DIN 47256 connector
- FLS-135A - EI-EUI-76 - UPC/HMS-10/AG connector
- FLS-135A - EI-EUI-89 - UPC/FC connector
- FLS-135A - EI-EUI-90 - UPC/ST connector
- FLS-135A - EI-EUI-91 - UPC/SC connector
- FLS-135A - EI-EUI-95 - UPC/E-2000 connector
- FLS-135A - EA-EUI-28 - APC/DIN 47256 connector
- FLS-135A - EA-EUI-89 - APC/FC connector
- FLS-135A - EA-EUI-91 - APC/SC connector
- FLS-135A - EA-EUI-95 - APC/E-2000 connector
| Model | FLS-135A |
|---|
Hand-held dual wavelength singlemode laser source offering a higher dynamic range for fiber optic network testing than when working with lower power LED varieties. Universal Fiber Interface.
