Exfo

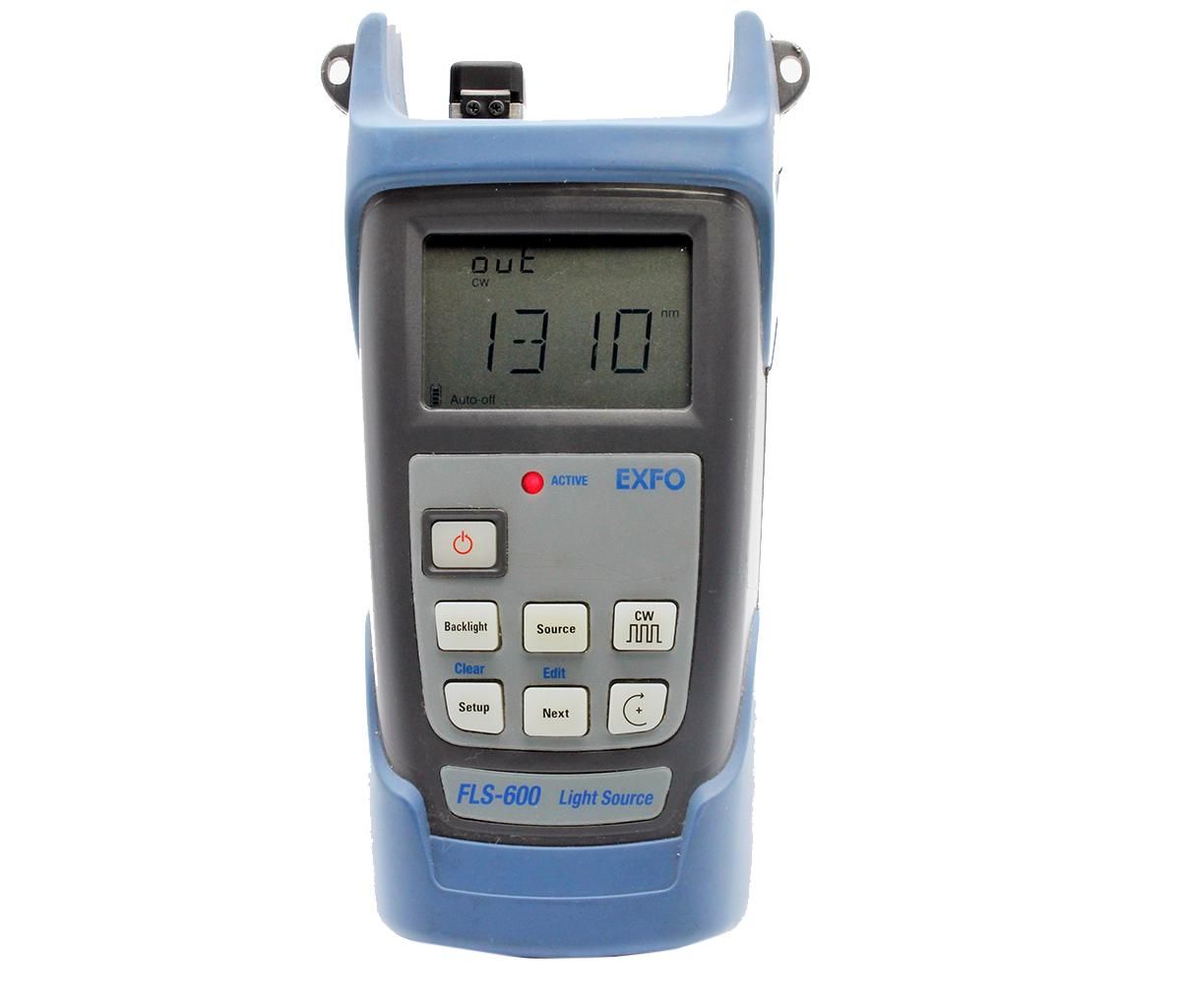

Exfo FLS-600
Optical Laser Source 1310/1550nm
800 nm – 1700 nm Rango de longitud de onda
LED de banda ancha Fuente de luz
-20 dBm (típico) Potencia de salida
Universal (adaptable a FC, SC, ST, LC) Tipo de conector
Batería recargable de iones de litio Alimentación
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 800 nm – 1700 nm |
| Fuente de luz | LED de banda ancha |
| Potencia de salida | -20 dBm (típico) |
| Tipo de conector | Universal (adaptable a FC, SC, ST, LC) |
| Alimentación | Batería recargable de iones de litio |
| Autonomía de la batería | Hasta 200 horas de funcionamiento continuo |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Dimensiones | 155 mm x 75 mm x 32 mm |
| Peso | Aproximadamente 300 g (con batería) |
| Normas de cumplimiento | IEC 61010-1, CE, RoHS |
Exfo FLS-600 Options:
- FLS-600 - 01-VCL - 850 nm VCSEL 50/125 μm
- FLS-600 - 12D - 850/1300 nm LED 62.5/125 μm
- FLS-600 - 23BL - 1310/1550 nm laser 9/125 μm
- FLS-600 - 234BL - 1310/1550/1625 nm laser 9/125 μm
- FLS-600 - 235BL - 1310/1490/1550 nm laser 9/125 μm
- FLS-600 - 12D-23BL - 850/1300 nm LED source 62.5/125 μm, 1310/1550 nm laser 9/125 μm
- FLS-600 - EA-EUI-28 - Connector: APC/DIN 47256
- FLS-600 - EA-EUI-89 - Connector: APC/FC narrow key
- FLS-600 - EA-EUI-91 - Connector: APC/SC
- FLS-600 - EA-EUI-95 - Connector: APC/E-2000
- FLS-600 - EI-EUI-28 - Connector: UPC/DIN 47256
- FLS-600 - EI-EUI-76 - Connector: UPC/HMS-10/AG
- FLS-600 - EI-EUI-89 - Connector: UPC/FC narrow key
- FLS-600 - EI-EUI-90 - Connector: UPC/ST
- FLS-600 - EI-EUI-91 - Connector: UPC/SC
- FLS-600 - EI-EUI-95 - Connector: UPC/E-2000
- FLS-600 - 00 - Without visual fault locator
- FLS-600 - VFL - With visual fault locator (universal 2.5 mm connector)
| Model | FLS-600 |
|---|
Using the FLS-600 in Auto-Switching mode allows you to automatically toggle between available wavelengths. When using this source with a compatible power meter (FPM/FOT-600), the latter recognizes the wavelength in use and switches to the proper calibration parameter. Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart, rechargeable batteries.
If you are looking for a new or well-maintained used Exfo - FLS-600 optical laser source 1310/1550nm refurbished with warranty, contact us or request a quote today.
