Exfo

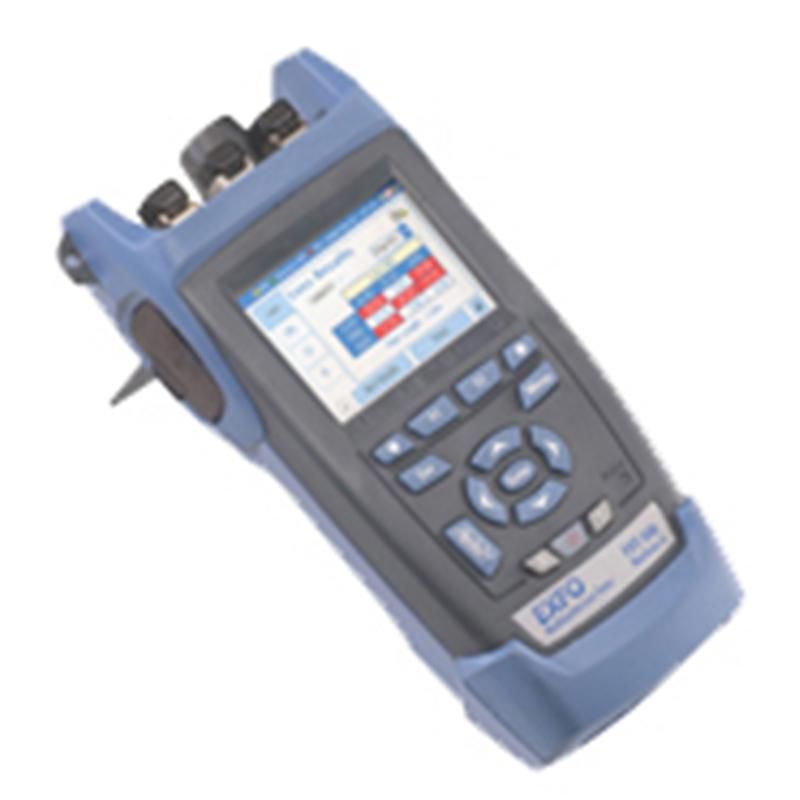

Exfo FOT-933X
FTTx Return/Loss Tester
Láser estabilizado Tipo de fuente de luz
850 nm / 1300 nm (multimodo), 1310 nm / 1550 nm (monomodo) Longitudes de onda
-7 dBm a -20 dBm (típico según longitud de onda) Rango de potencia de salida
±0,05 dB durante 15 minutos a temperatura constante Estabilidad de potencia
Universal adaptable (compatible con SC, ST, FC, LC) Conector de interfaz
| Atributo | Valor |
|---|---|
| Tipo de fuente de luz | Láser estabilizado |
| Longitudes de onda | 850 nm / 1300 nm (multimodo), 1310 nm / 1550 nm (monomodo) |
| Rango de potencia de salida | -7 dBm a -20 dBm (típico según longitud de onda) |
| Estabilidad de potencia | ±0,05 dB durante 15 minutos a temperatura constante |
| Conector de interfaz | Universal adaptable (compatible con SC, ST, FC, LC) |
| Alimentación | Batería recargable de iones de litio / Adaptador de CA externo |
| Autonomía de la batería | Hasta 70 horas de funcionamiento continuo |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Dimensiones | Compacto y portátil, diseño ergonómico para uso en campo |
| Normas de cumplimiento | Compatible con estándares TIA/EIA e ISO/IEC para pruebas de fibra óptica |
Exfo FOT-933X Options:
- FOT-933X - FOT-933 - InGaAs detector, dual-wavelength 1310/1550 nm
- FOT-933X - FOT-933-4 - InGaAs detector, triple-wavelength 1310/1550/1625 nm
- FOT-933X - FOT-933-5 - InGaAs detector, triple-wavelength 1310/1490/1550 nm
- FOT-933X - 00 - Without second source
- FOT-933X - 12C - 850/1300 nm LED 50/125 µm second source
- FOT-933X - 12D - 850/1300 nm LED 62.5/125 µm second source
- FOT-933X - 00 - Without talk set and VFL
- FOT-933X - VFL - With visual fault locator
- FOT-933X - VFT - With talk set and VFL (universal 2.5 mm connector)
- FOT-933X - EI-EUI-28 - UPC/DIN 47256 connector
- FOT-933X - EI-EUI-76 - UPC/HMS-10/AG connector
- FOT-933X - EI-EUI-89 - UPC/FC narrow key connector
- FOT-933X - EI-EUI-90 - UPC/ST connector
- FOT-933X - EI-EUI-91 - UPC/SC connector
- FOT-933X - EI-EUI-95 - UPC/E-2000 connector
- FOT-933X - EA-EUI-28 - APC/DIN 47256 connector
- FOT-933X - EA-EUI-89 - APC/FC narrow key connector
- FOT-933X - EA-EUI-91 - APC/SC connector
- FOT-933X - EA-EUI-95 - APC/E-2000 connector
- FOT-933X - 00 - Without probe
- FOT-933X - FP4S - Inspection probe (400x)
- FOT-933X - FP4D - Inspection probe (200x/400x)
| Model | FOT-933X |
|---|
The FOT-933 MaxTester provides fully automated loss test results in 10 seconds for up to three wavelengths, as well as automatic ORL and fiber-length measurement. It comes with a large, high-resolution color display and nine hours autonomy -- all this and more in an ergonomic, eye-catching handheld package built for today's fiber-optic testing requirements. This unit easily and efficiently provides complete, high-quality test documentation. Its data logging and management features help users quickly access and download test results to any PC through the RS-232 port for in-depth analysis and first-class report generation.
