Exfo FTB-5700-CD-PMD
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1260 nm – 1640 nm |
| Rango de medición de dispersión cromática (CD) | -20000 ps/nm a +20000 ps/nm |
| Rango de medición de PMD | 0 ps a 100 ps |
| Método de medición de CD | Fase modulada (interferometría de dominio de frecuencia) |
| Método de medición de PMD | Análisis del estado de polarización (SOP) / Análisis de Jones |
| Resolución de dispersión cromática | 0,01 ps/nm |
| Resolución de PMD | 0,01 ps |
| Tipo de conector de interfaz óptica | FC/APC |
| Plataforma compatible | EXFO FTB-500 / FTB-200 |
| Temperatura de funcionamiento | -10 °C a +50 °C |
Exfo FTB-5700-CD-PMD Options:
- FTB-5700-CD-PMD - EI-EUI-28 - UPC/DIN 47256 Connector
- FTB-5700-CD-PMD - EI-EUI-76 - UPC/HMS-10/AG Connector
- FTB-5700-CD-PMD - EI-EUI-89 - UPC/FC narrow key Connector
- FTB-5700-CD-PMD - EI-EUI-90 - UPC/ST Connector
- FTB-5700-CD-PMD - EI-EUI-91 - UPC/SC Connector
- FTB-5700-CD-PMD - EI-EUI-95 - UPC/E-2000 Connector
- FTB-5700-CD-PMD - EA-EUI-28 - APC/DIN 47256 Connector
- FTB-5700-CD-PMD - EA-EUI-89 - APC/FC narrow key Connector
- FTB-5700-CD-PMD - EA-EUI-91 - APC/SC Connector
- FTB-5700-CD-PMD - EA-EUI-95 - APC/E-2000 Connector
| Model | FTB-5700-CD-PMD |
|---|

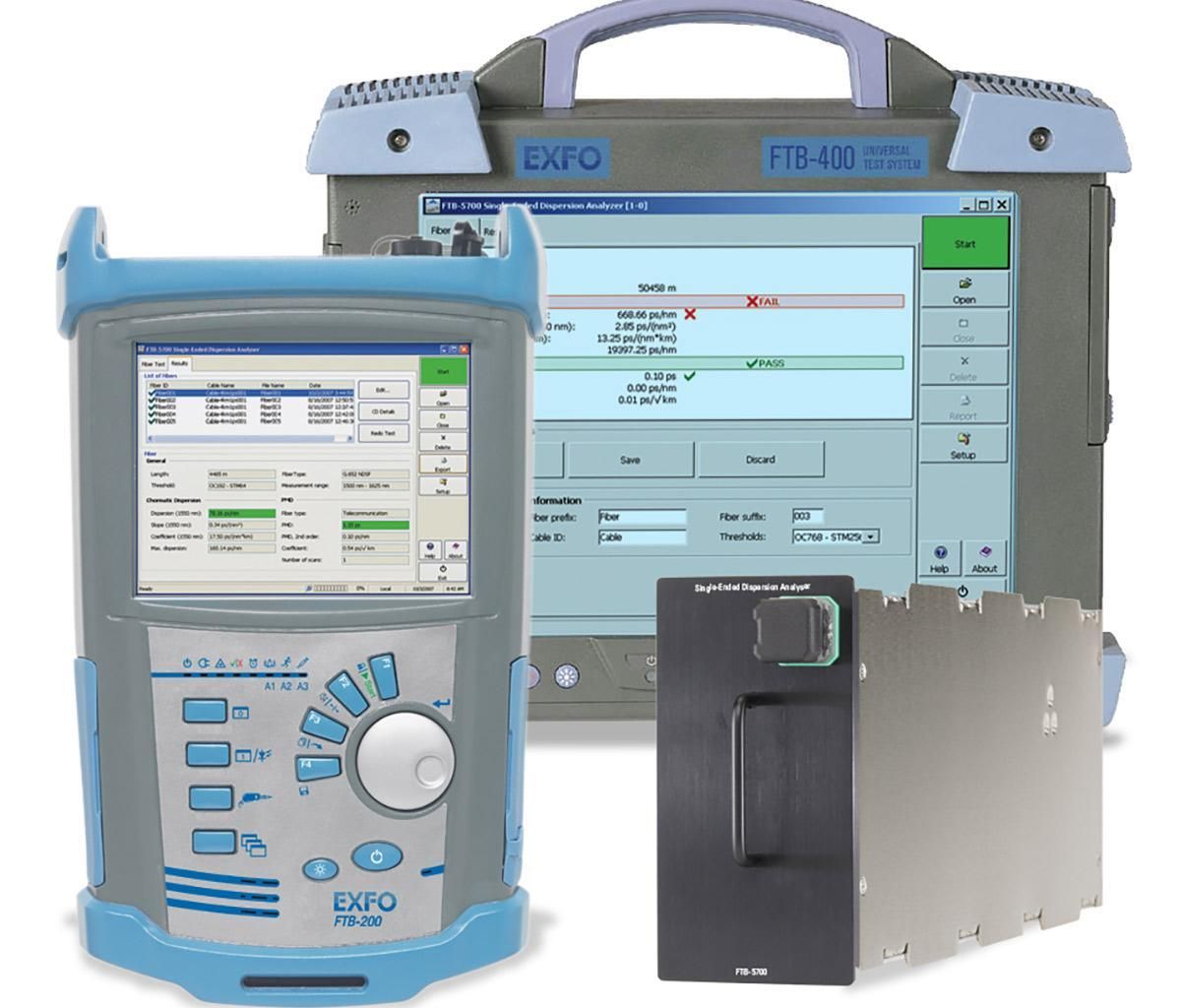

The FTB-5700-CD-PMD Single-Ended Dispersion Analyzer combines chromatic dispersion and polarization mode dispersion measurement into a single, highly automated, high-efficiency test solution. It The FTB-5700 offers the true advantage of one-ended testing using one module, one connector and a one-step test setup and delivering one combined results file dramatically reducing the cost of ownership and speeding up the learning curve, the test cycles as well as the reporting. Housed in EXFO's multi-modular portable platforms, the FTB-200 Compact Platform.
At Testwall we offer the Exfo FTB-5700-CD-PMD for rent and lease. All our equipment is extremely well cared for and is regularly calibrated by qualified expert technicians. We offer great prices on electronic test equipment along with technical support day or night through an accomplished customer care team. So, request a quote and acquire the EXFO FTB 5700 to fulfill your single-ended dispersion analysis needs today.
