Exfo
Exfo FTB720CSM1945SM1

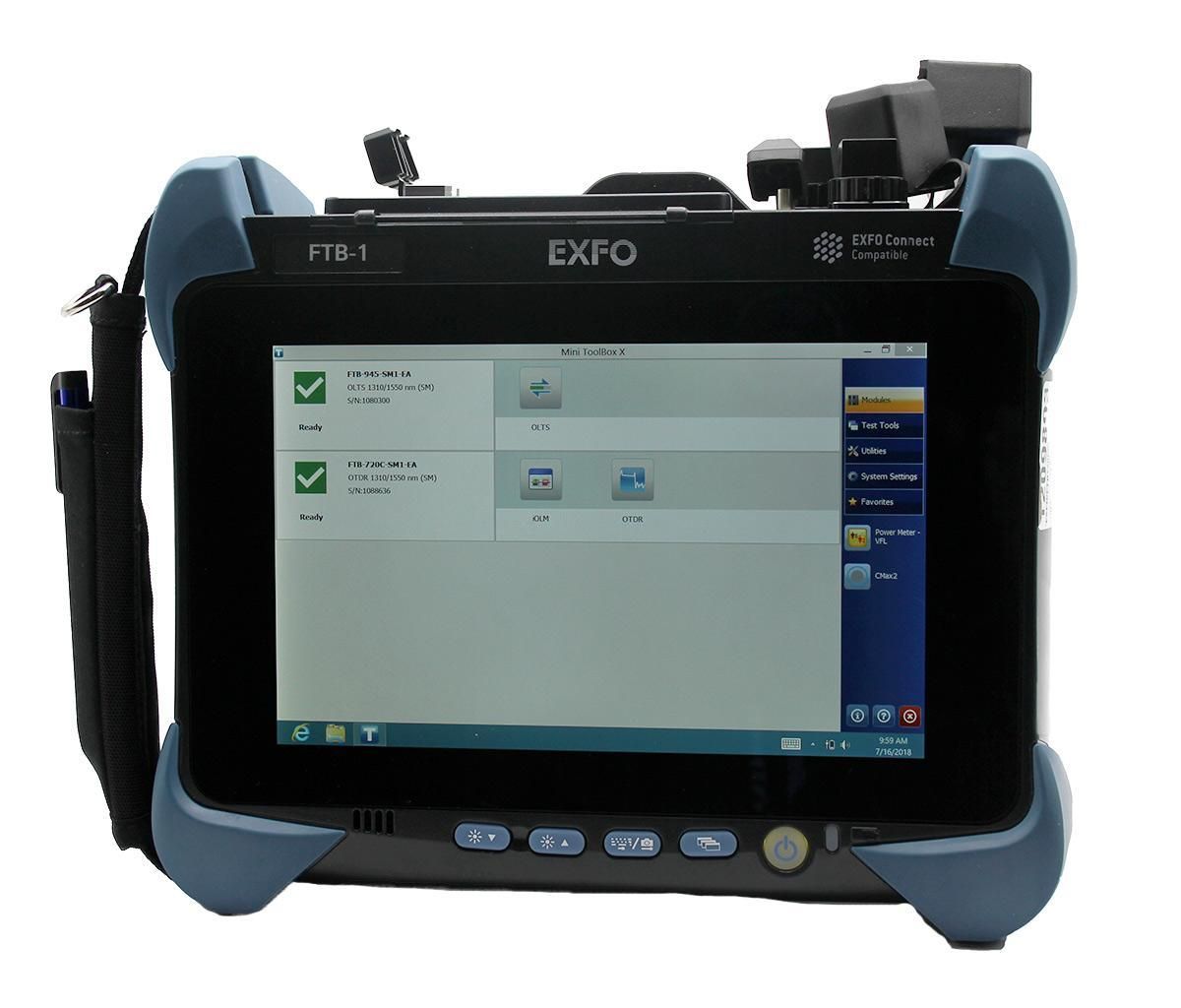

VERIZON ONE FIBER KIT Handheld SM OTDR / OLTS / Inspection Kit / FastReporter 2
1945 nm Longitud de onda
SM (Monomodo) Tipo de conector
-40 dBm a +10 dBm Rango de potencia óptica
EXFO FTB-700 Series Plataforma compatible
Monomodo (Single Mode) Tipo de fibra
| Atributo | Valor |
|---|---|
| Longitud de onda | 1945 nm |
| Tipo de conector | SM (Monomodo) |
| Rango de potencia óptica | -40 dBm a +10 dBm |
| Plataforma compatible | EXFO FTB-700 Series |
| Tipo de fibra | Monomodo (Single Mode) |
| Resolución de medición | 0,01 dB |
| Incertidumbre de calibración | ±0,2 dB |
| Rango de temperatura de funcionamiento | -10 °C a +50 °C |
| Interfaz de módulo | Módulo enchufable FTB |
| Aplicación principal | Medición de potencia óptica y pérdida de inserción en redes de fibra óptica monomodo |
Exfo FTB720CSM1945SM1 Options:
- FTB720CSM1945SM1 - FTB-7200D-12CD-23B - Four-wavelength MM/SM OTDR module, 850/1300 nm (50/125 µm and 62.5/125 µm) and 1310/1550 nm (9/125 µm)
- FTB720CSM1945SM1 - FTB-7200D-12CD - Dual-wavelength MM OTDR module, 850/1300 nm (50/125 µm and 62.5/125 µm)
- FTB720CSM1945SM1 - FTB-7200D-023B - Dual-wavelength SM OTDR module, 1310/1550 nm (9/125 µm)
- FTB720CSM1945SM1 - EA-EUI-28 - Connector: APC/DIN 47256 (singlemode only)
- FTB720CSM1945SM1 - EA-EUI-89 - Connector: APC/FC narrow key (singlemode only)
- FTB720CSM1945SM1 - EA-EUI-91 - Connector: APC/SC (singlemode only)
- FTB720CSM1945SM1 - EA-EUI-95 - Connector: APC/E-2000 (singlemode only)
- FTB720CSM1945SM1 - EI-EUI-28 - Connector: UPC/DIN 47256
- FTB720CSM1945SM1 - EI-EUI-76 - Connector: UPC/HMS-10/AG
- FTB720CSM1945SM1 - EI-EUI-89 - Connector: UPC/FC narrow key
- FTB720CSM1945SM1 - EI-EUI-90 - Connector: UPC/ST
- FTB720CSM1945SM1 - EI-EUI-91 - Connector: UPC/SC
- FTB720CSM1945SM1 - EI-EUI-95 - Connector: UPC/E-2000
- FTB720CSM1945SM1 - 00 - Without visual fault locator
- FTB720CSM1945SM1 - VFL - With visual fault locator (universal 2.5 mm connector)
| Model | FTB720CSM1945SM1 |
|---|
Single-slot capacity Modular mainframe
SM OTDR iOLM Module 1310/1550 nm, 36/34 dB (9/125 um)
Automated OLTS SM Loss Test Set (OLTS)
Wireless Analysis Digital Video Inspection Probe
FastReporter 2 Software
