Fluke 125B
| Atributo | Valor |
|---|---|
| Ancho de banda | 40 MHz |
| Canales de osciloscopio | 2 canales aislados |
| Frecuencia de muestreo | 25 MS/s en tiempo real |
| Pantalla | Pantalla LCD en color de 5,7 pulgadas |
| Voltaje de entrada máximo | 600 V CAT III / 300 V CAT IV |
| Medición de potencia | Vatios, VA, VAR y factor de potencia |
| Registro de datos | Función ScopeRecord hasta 22.000 puntos por canal |
| Alimentación | Batería recargable de iones de litio / alimentación por red eléctrica |
| Grado de protección | IP51 (resistente al polvo y a salpicaduras de agua) |
| Peso | Aproximadamente 1,5 kg con batería |
Fluke 125B Options:
- 125B - 125B - Industrial ScopeMeter Hand Held Oscilloscope (40 MHz)
- 125B - 125B/S - Industrial ScopeMeter Hand Held Oscilloscope (40 MHz) with soft carry case, FlukeView for Windows software, magnetic hanger, and screen protector
| Model | 125B |
|---|

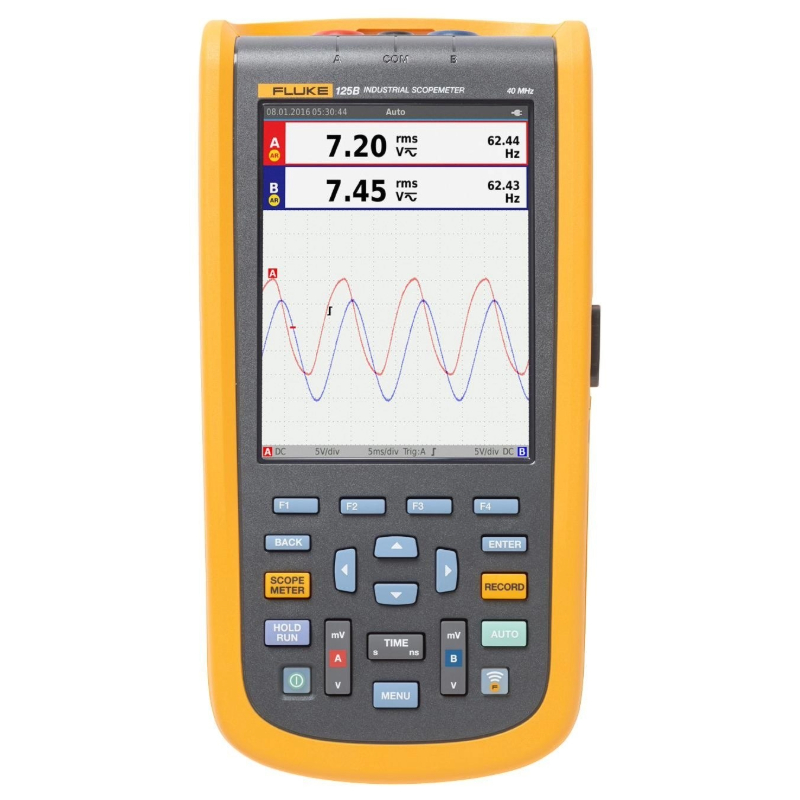

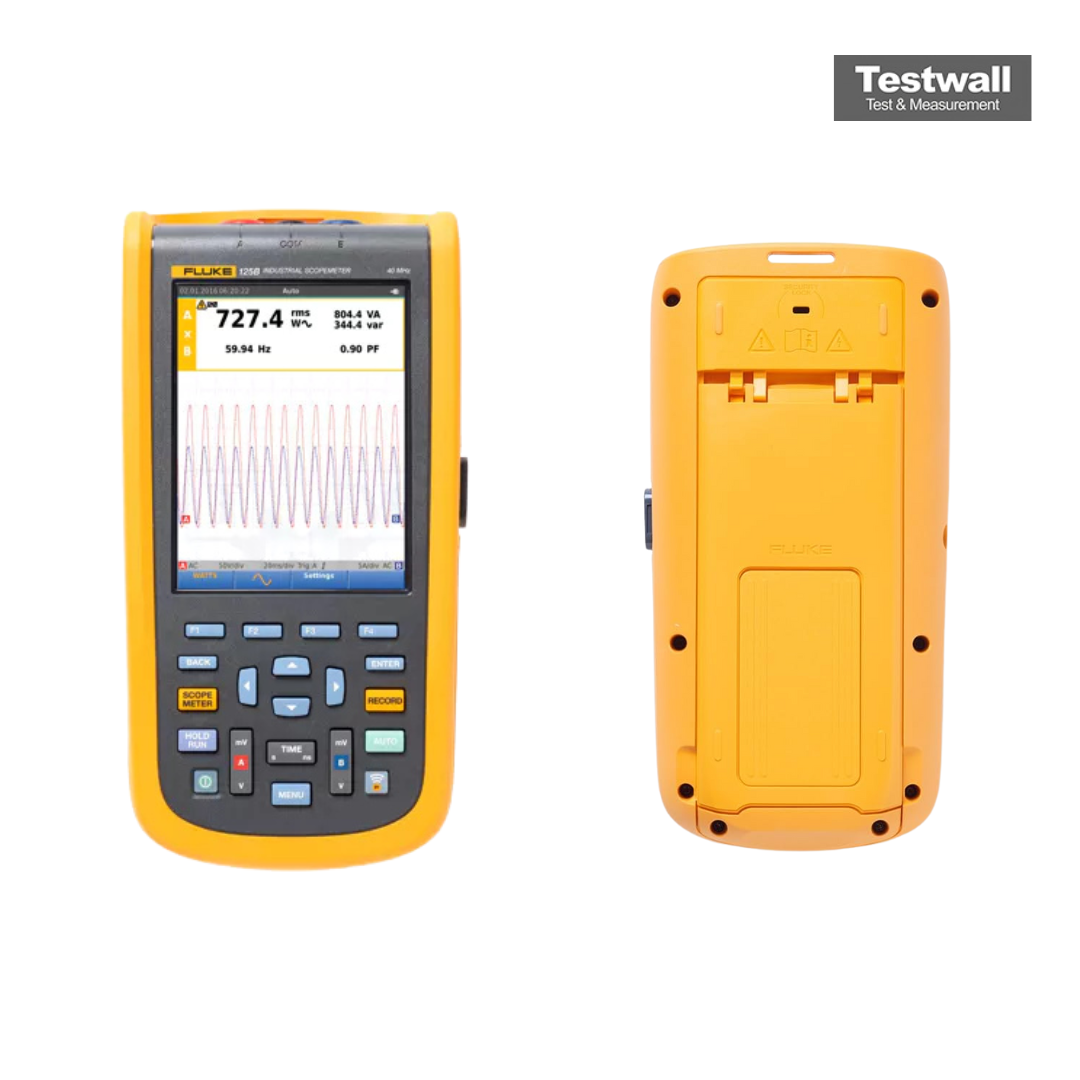

Fluke 125B Industrial Scopemeter
The Fluke 125B Industrial Scopemeter is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It is a truly integrated test tool, putting the functions of an oscilloscope, multimeter, and high-speed recorder into one, easy-to-use instrument. Additionally, triggering displays waveforms without having to adjust amplitude, timebase, and trigger settings. Fluke 125B Industrial Scopemeter also integrates with Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.
With Fluke 125B Industrial Scopemeter troubleshoot faster and get the answers you need to keep systems up and running. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis. For single-phase or 3-phase balanced systems, the dual inputs of the Industrial ScopeMeter 125B can measure AC+DC RMS voltage on channel A and AC+DC RMS cur on channel B. This oscilloscope can then calculate frequency, phase angle, active power (kW), reactive power (VA or var), power factor (PF), or displacement power factor (DPF) and the power values. Fluke 125B Industrial Scopemeter also can save or recall data and instrument setups.
Specifications for the Fluke 125B Industrial Scopemeter Include:
| Frequency response - dc coupled | dc to 40 MHz (-3 dB) |
| Frequency response - ac coupled | < 10 Hz (-3 dB) |
| Rise time | < 8.75 ns |
| Analog bandwidth limiter | 10 kHz |
