Fluke 1507
| Atributo | Valor |
|---|---|
| Voltaje de prueba de aislamiento | 50 V, 100 V, 250 V, 500 V, 1000 V CC |
| Rango de medición de resistencia de aislamiento | 0,01 MΩ hasta 10 GΩ |
| Precisión de resistencia de aislamiento | ±5% (0,01 MΩ a 999 MΩ), ±10% (1 GΩ a 10 GΩ) |
| Medición de voltaje CA/CC | Hasta 600 V CA/CC |
| Corriente de cortocircuito máxima | 3 mA CC (nominal) |
| Funciones de prueba avanzadas | Índice de polarización (PI), Índice de absorción dieléctrica (DAR), Prueba por pasos |
| Pantalla | Pantalla analógica y digital con retroiluminación |
| Categoría de seguridad | CAT IV 600 V / CAT III 1000 V |
| Alimentación | 6 pilas alcalinas AA (LR6) |
| Temperatura de funcionamiento | -15 °C a +50 °C |
Fluke 1507 Options:
- 1507 - Fluke C101 - Hard Case Heavy duty waterproof tool case with diced-foam interior
- 1507 - Fluke TL81A - Deluxe Electronic Test Lead Kit: Ideal for testing electronic equipment and offers versatility with modular test probes, alligator clips, test clips and more.
- 1507 - Fluke C25 - Large Soft Case for DMMs: Fits most mid-sized multimeters, process and temperature meters.
- 1507 - Fluke TL225 - SureGrip™ Stray Voltage Adapter Test Lead Kit: Electricians know that when you are measuring electrical installations there often appears to be a voltage, even if you know the wires are non energized.
| Model | 1507 |
|---|

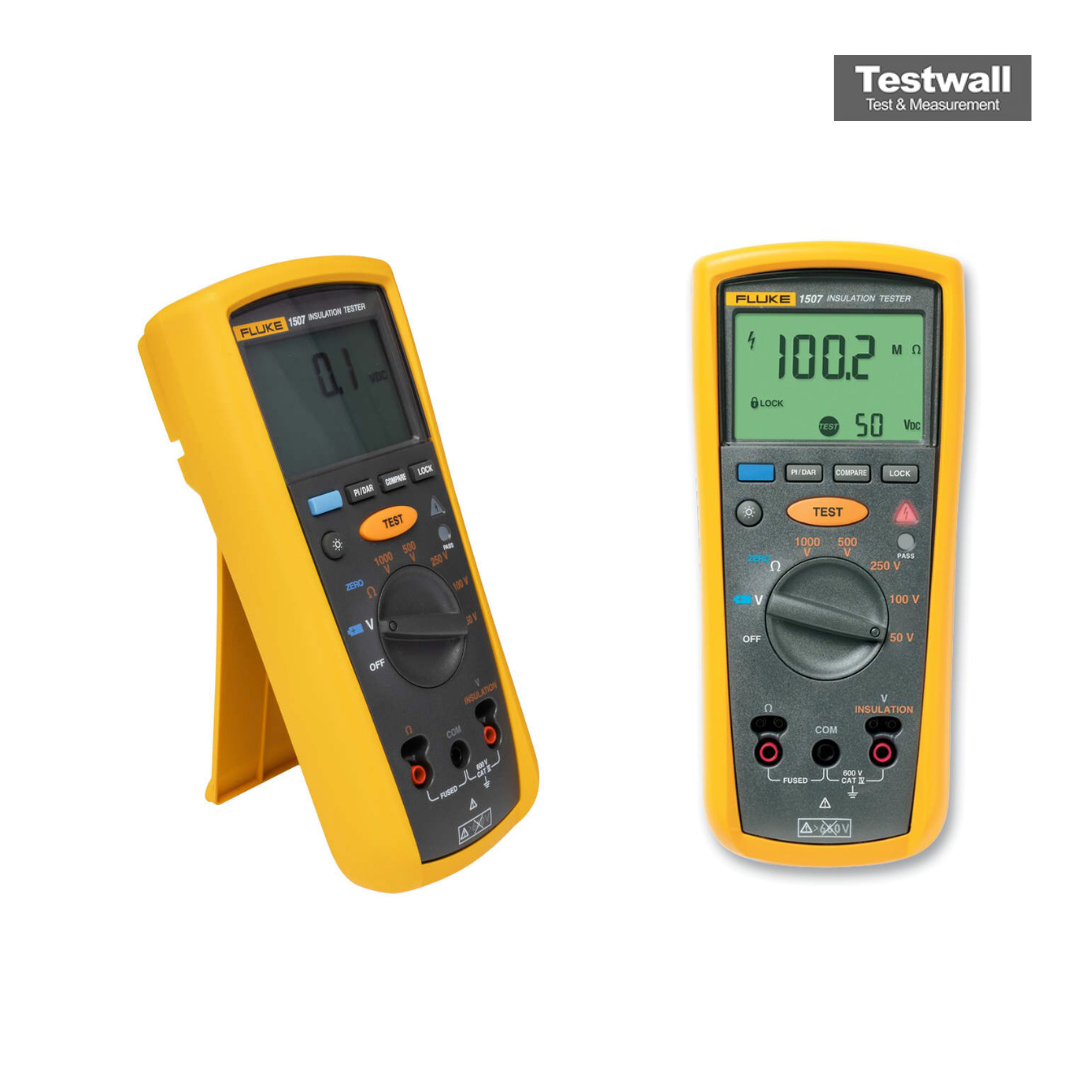

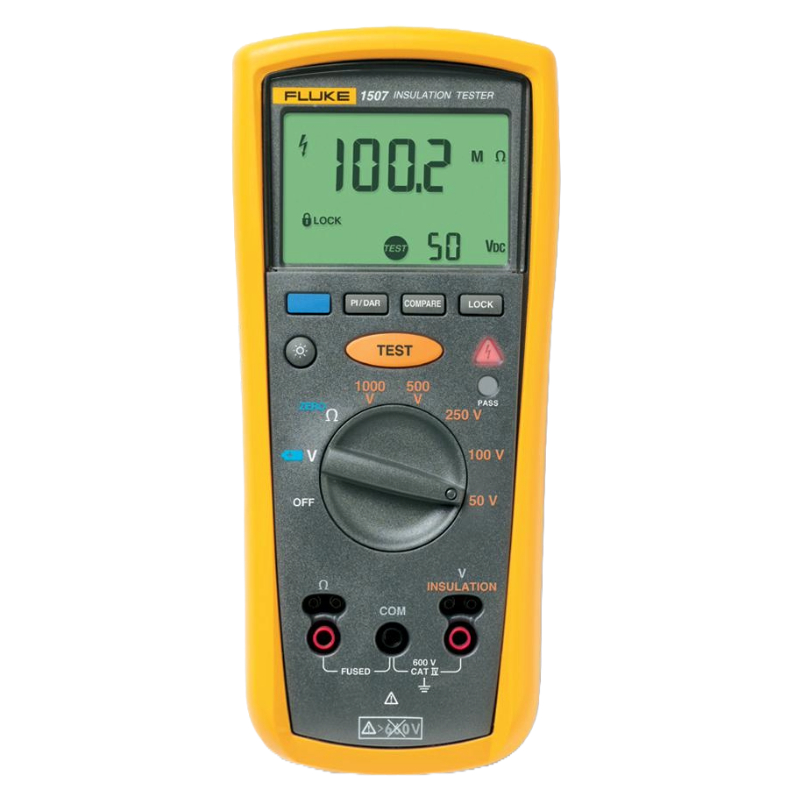

Fluke 1507 Insulation Resistance Tester
The Fluke 1507 Insulation Resistance Tester is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. The Fluke 1507 is an extremely safe instrument thanks to its automatic voltage detection which prevents tests when a voltage of 30V or over is detected.
Fluke 1507 Insulation Resistance Tester can perform advanced insulation resistance testing very easily and quickly. Its handy size and light weight make it easy to pack and use. Polarisation index and dielectric absorption ratio are automatically calculated by the Fluke 1507, thus saving time, and the 'compare' function means that repetitive tests are streamlined via a pass/fail function. Furthermore, a remote probe brings greater access to awkward test locations as well as making measurement repetition easier and simpler. Reasonable price and rugged reliability make Fluke 1507 Insulation Resistance Tester an excellent value to use in industrial testing field.
Specifications for the Fluke 1507 Insulation Resistance Tester Include:
| AC/DC Voltage Range | 0 - 600.0 V |
| Insulation Measurement Range | 0.01 MΩ to 10 GΩ |
| Resistance Measurement Range | 0.01 Ω to 20.00 kΩ |
| Common mode rejection ratio | > 60 dB at DC, 50 or 60 Hz |
