Fluke 1587-FC
| Atributo | Valor |
|---|---|
| Voltaje de prueba de aislamiento | 500 V, 1000 V CC |
| Rango de resistencia de aislamiento | 0,01 MΩ a 2000 MΩ |
| Rango de voltaje CA/CC | 0 a 1000 V CA/CC |
| Rango de resistencia | 0,01 Ω a 999,9 kΩ |
| Categoría de medición | CAT IV 600 V / CAT III 1000 V |
| Conectividad inalámbrica | Bluetooth (compatible con Fluke Connect) |
| Pantalla | Pantalla LCD con retroiluminación |
| Alimentación | 4 pilas AA (1,5 V) |
| Grado de protección | IP40 |
| Temperatura de funcionamiento | -10 °C a +50 °C |
Fluke 1587-FC Options:
- 1587-FC - Fluke-1587/MDT FC - 2-IN-1 ADV Motor & Drive Kit w/9040, i400
- 1587-FC - 1587KIT/62MAX+ FC - 2-IN-1 ADV Elec Kit w/62MAX+ i400
- 1587-FC - TPAK - Magnetic Tool Hanger
- 1587-FC - i400 - AC Current Clamp
- 1587-FC - C25 - Soft Case
| Model | 1587-FC |
|---|

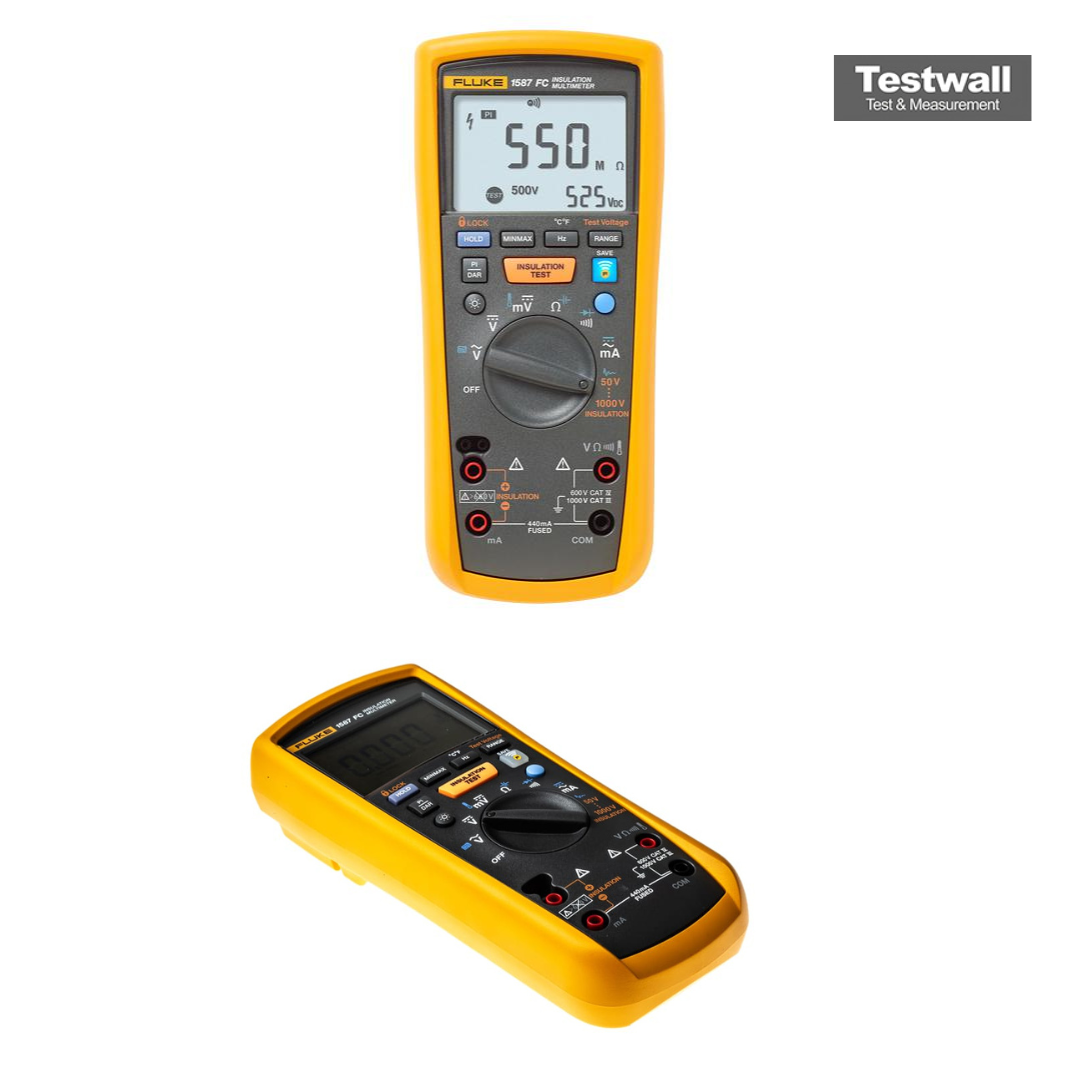

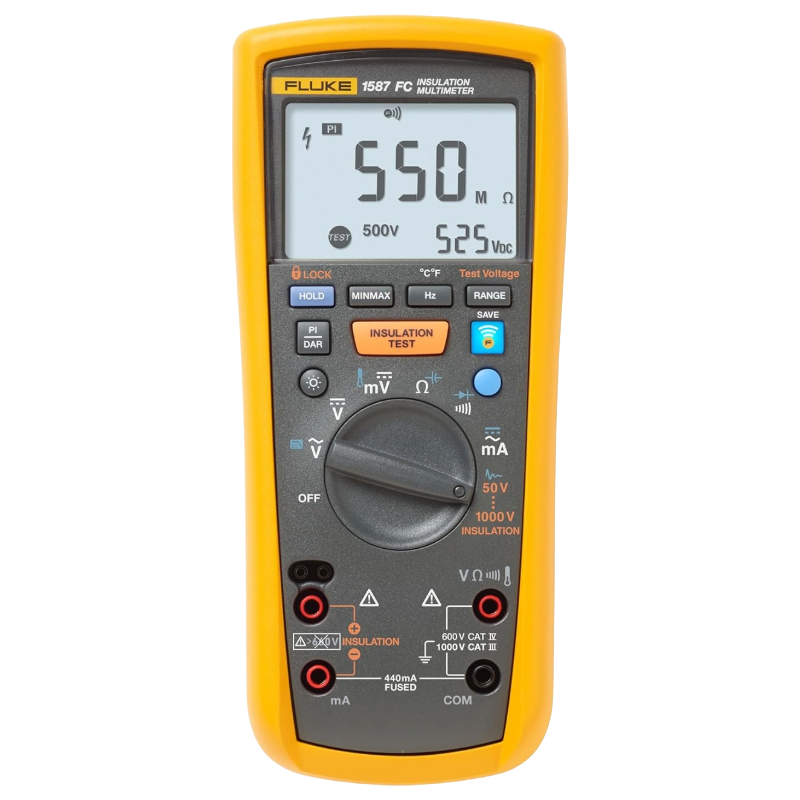

Fluke 1587-FC 2-in-1 Insulation Multimeter
The Fluke 1587-FC 2-in-1 Insulation Multimeter combines a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. With Fluke 1587-FC you can measure ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity. Fluke 1587-FC 2-in-1 Insulation Multimeter features auto-discharge of capacitive voltage and supports live circuit detection which prevents insulation test if voltage greater than 30 V is detected for user protection.
Fluke 1587-FC 2-in-1 Insulation Multimeter features PI/DAR timed ratio tests with TrendIt graphs which identifies moisture and contaminated insulation problems faster. Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time. Fluke 1587-FC also features temperature Compensation through app for establishing accurate baselines and relevant historical comparisons. Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect Assets.
Specifications for the Fluke 1587-FC 2-in-1 Insulation Multimeter Include:
| Voltage Measure AC Max | 1000 V |
| Cur Measure AC Max | 400mA |
| Resistance Measure Max | 50Mohm |
| Frequency Measure Max | 99.99kHz |
