Fluke 190-504/S
| Atributo | Valor |
|---|---|
| Número de canales | 4 canales |
| Ancho de banda | 500 MHz |
| Frecuencia de muestreo | 2,5 GS/s |
| Resolución vertical | 8 bits |
| Memoria de registro | 10.000 puntos por canal |
| Pantalla | Pantalla LCD a color de 5,7 pulgadas |
| Clasificación de seguridad | CAT III 1000 V / CAT IV 600 V |
| Grado de protección | IP51 (resistente al polvo y salpicaduras de agua) |
| Alimentación | Batería recargable de iones de litio / Adaptador de CA |
| Funciones de medición | Osciloscopio, multímetro, analizador de espectros FFT, registrador de datos |
Fluke 190-504/S Options:
- 190-504/S - BC190 - Mains adapter/battery charger
- 190-504/S - BP290 - Li-ion battery pack, 2400 mAh
- 190-504/S - BP291 - Li-ion battery pack, 4800 mAh
- 190-504/S - EBC290 - External battery charger for BP290 and BP291 (uses BC190 mains adapter)
- 190-504/S - HH290 - Hanging Hook for 190 Series II instruments
- 190-504/S - VPS510-R - Electronic Voltage Probe set, 10:1, 500 MHz, one set red
- 190-504/S - VPS510-G - Electronic Voltage Probe set, 10:1, 500 MHz, one set grey
- 190-504/S - VPS510-B - Electronic Voltage Probe set, 10:1, 500 MHz, one set blue
- 190-504/S - VPS510-V - Electronic Voltage Probe set, 10:1, 500 MHz, one set green
- 190-504/S - VPS410-G - Industrial Voltage Probe set, 10:1, one set grey
- 190-504/S - VPS410-R - Industrial Voltage Probe set, 10:1, one set red
- 190-504/S - VPS410-B - Industrial Voltage Probe set, 10:1, one set blue
- 190-504/S - VPS410-V - Industrial Voltage Probe set, 10:1, one set green
- 190-504/S - VPS420-R - High working voltage ruggedized probe set, 100:1, 150 MHz (bicolored, red/black)
- 190-504/S - VPS420-G - High working voltage ruggedized probe set, 100:1, 150 MHz (bicolored, grey/black)
- 190-504/S - VPS420-B - High working voltage ruggedized probe set, 100:1, 150 MHz (bicolored blue/black)
- 190-504/S - VPS420-V - High working voltage ruggedized probe set, 100:1, 150 MHz (bicolored green/black)
- 190-504/S - SW90W - FlukeView ScopeMeter Software package (full version)
- 190-504/S - C290 - Hard shell protective carrying case for 190 Series II
- 190-504/S - SCC290 - FlukeView ScopeMeter Software package (full version) and C290 Carrying Case kit for 190 Series II
- 190-504/S - TL175 - TwistGuard™ safety designed test leads set (1 red, 1 black)
- 190-504/S - TRM50 - BNC Feedthrough 50 Ω terminator (set of 2 pieces, black)
- 190-504/S - AS400 - Probe Accessory Extension Set for VPS400-series probes
- 190-504/S - RS400 - Probe Accessory Replacement Set for VPS400-series probes
- 190-504/S - RS500 - Probe Accessory Replacement Set for VPS500-series probes
| Model | 190-504/S |
|---|

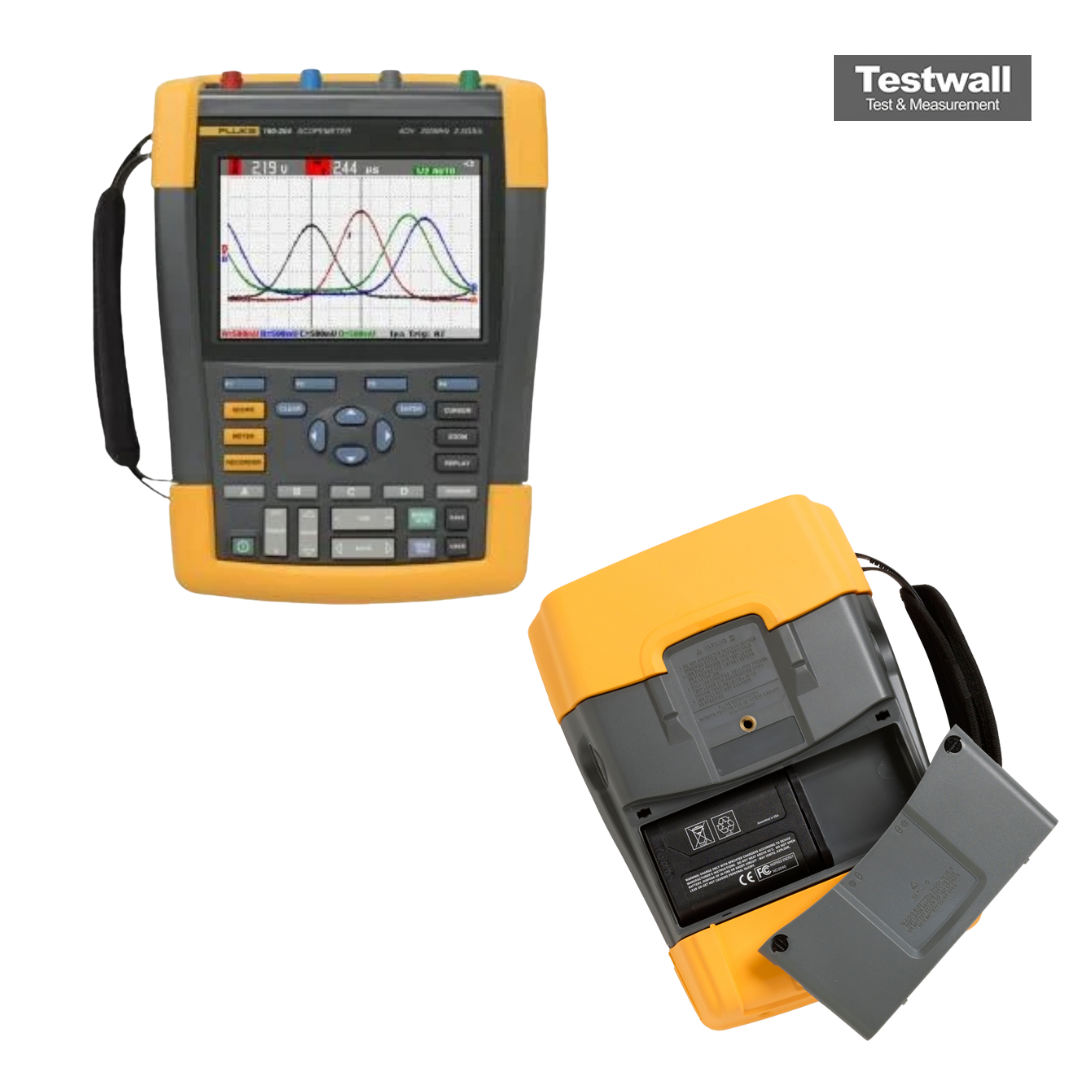

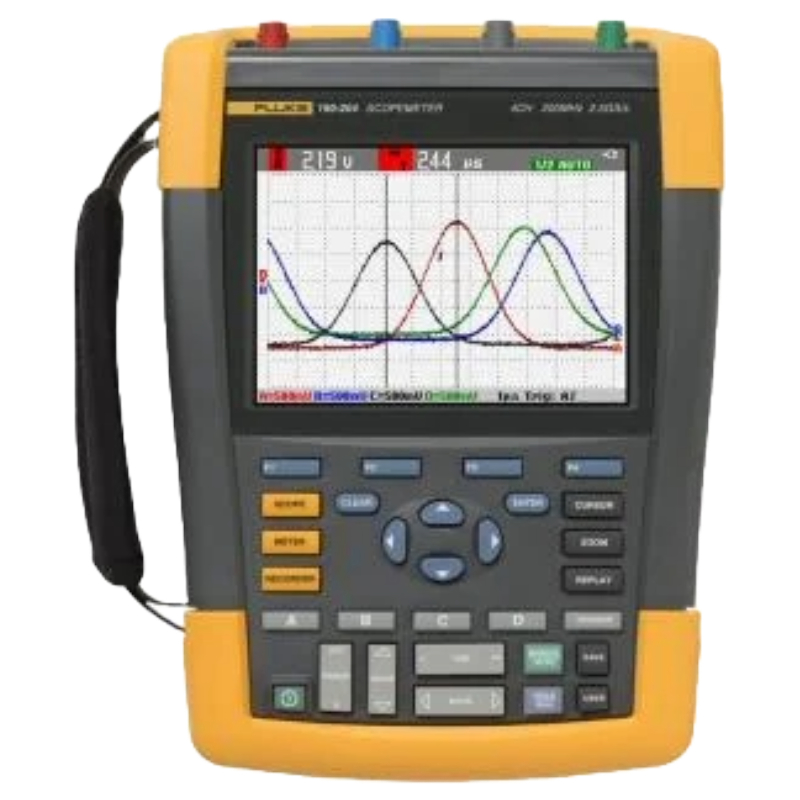

FLUKE 190-504/S Scopemeter
The Fluke 190-504/S Scopemeter combines the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, this tough ScopeMeter test tool goes into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications. FLUKE 190-504/S Scopemeter is one of the test tools you can reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot ™ and ScopeRecord ™ roll paperless recorder modes and hands free operation with Connect-and-View ™ triggering, and much more.
Fluke 190-504/S Scopemeter covers a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references. It can conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Fluke 190-504/S Scopemeter comes with two USB ports, electrically isolated from measurement input circuits offer easy USB connectivity to a PC or USB memory devices. Store unlimited waveforms, screen captures or instrument setups to a USB memory device.
Specifications for the FLUKE 190-504/S Scopemeter Include:
| Number of channels | 4 |
| Bandwidth | 500 MHz |
| Rise time | 0.7 ns |
| Maximum real time sample rate | 5 GS/s (single channel) or 1.25 GS/s per channel |
