Fluke 374-FC
| Atributo | Valor |
|---|---|
| Medición de corriente AC verdadera (RMS) | Hasta 600 A AC |
| Medición de corriente DC | Hasta 600 A DC |
| Medición de tensión AC | Hasta 600 V AC |
| Medición de tensión DC | Hasta 600 V DC |
| Frecuencia de medición | 20 Hz - 1 kHz |
| Conectividad inalámbrica | Bluetooth (compatible con Fluke Connect) |
| Diámetro de abertura de la pinza | 40 mm |
| Categoría de seguridad | CAT III 600 V / CAT IV 300 V |
| Resistencia | Hasta 40 MΩ |
| Temperatura de funcionamiento | -10 °C a +50 °C |
Fluke 374-FC Options:
- 374-FC - TPAK - Magnetic Hanging Strap (included with 376 FC)
- 374-FC - iFlex - 18-inch iFlex Flexible Current Probe (included with 376 FC)
| Model | 374-FC |
|---|

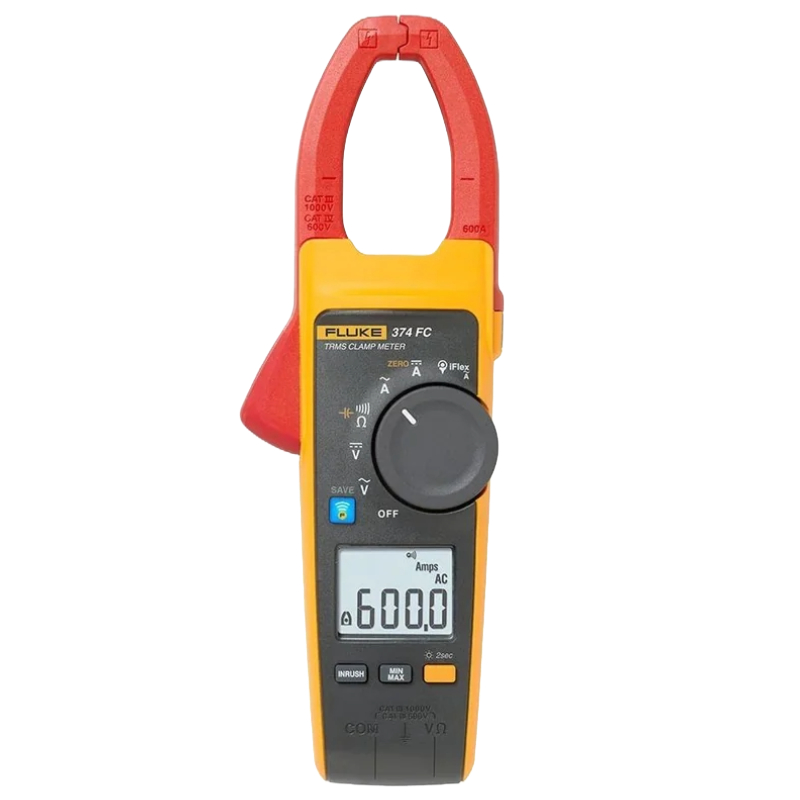

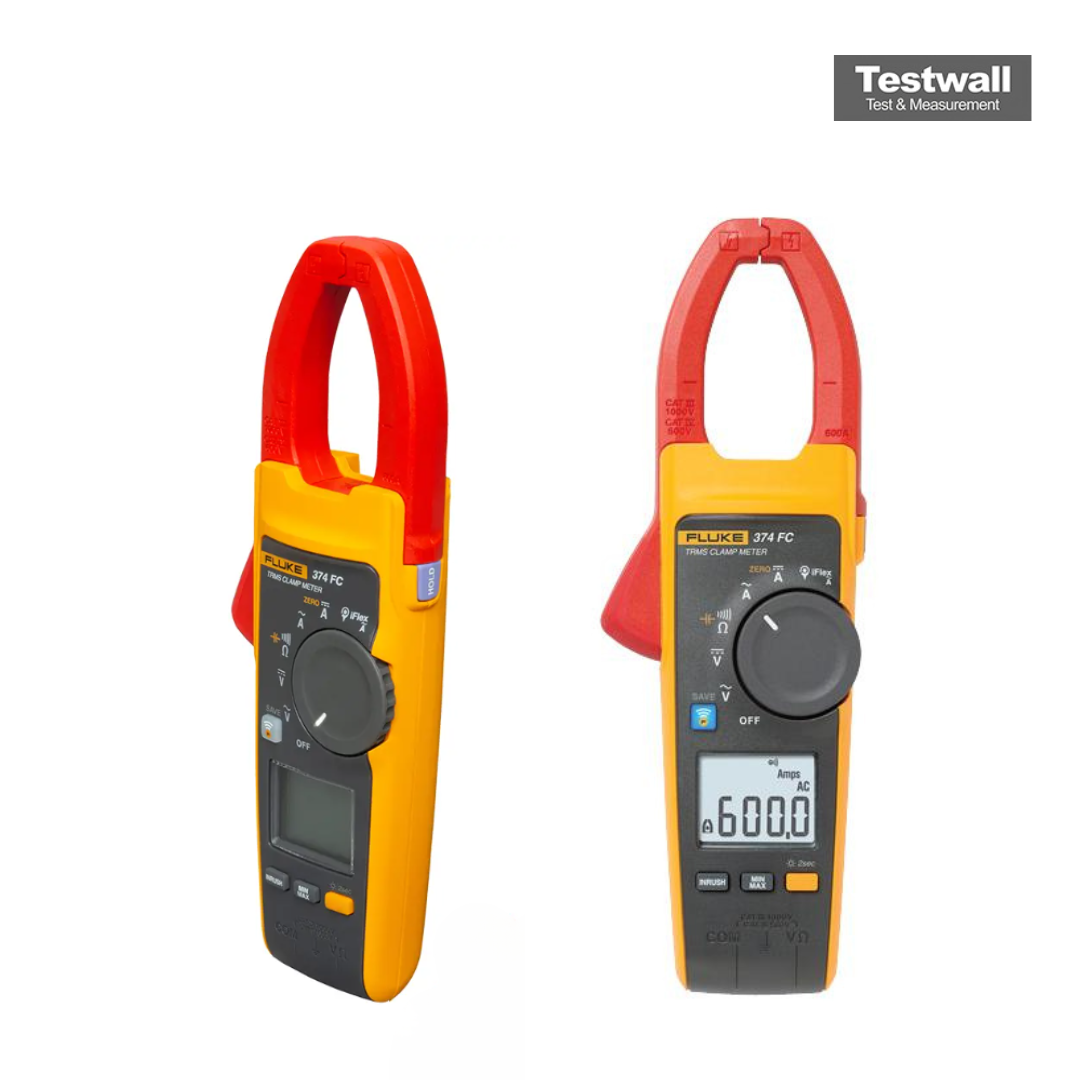

Fluke 374-FC Wireless Leakage Cur Clamp
The Fluke 374-FC Wireless Leakage Cur Clamp offers advanced troubleshooting performance and is part of the Fluke Connect family of wireless test tools. It can measure AC and DC cur to 600 A with the fixed jaw clamp or add an optional iFlex ® flexible cur probe to measure all the way to 2500 A. The large diameter and flexible design of the iFlex probe makes it easier to measure around large conductors in tight spaces or to access tightly packed wires. Fluke 374-FC Wireless Leakage Cur Clamp can also measure AC and DC voltage to 1000 V and resistance to 6000 Ω.
Fluke 374-FC Wireless Leakage Cur Clamp provides True-RMS voltage and cur measurements to accurately measure non-linear signals. And you can log and trend measurements to pinpoint intermittents while you are performing other tasks. Fluke 374-FC can read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks. It records results directly to your phone and the Fluke Cloud. Fluke 374-FC Wireless Leakage Cur Clamp features proprietary in-rush measurement technology to filter out noise and capture motor starting cur exactly as the circuit protection sees it.
Specifications for the Fluke 374-FC Wireless Leakage Cur Clamp Include:
| AC cur range | 600 A with clamp jaws, 2500 A Flexible Cur Probe |
| DC cur range | 600A |
| Resolution | 0.1 A |
| Voltage | 1000 V (AC/DC) |
