Fluke 6331
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 0,1 Hz a 1050 MHz |
| Impedancia de salida | 50 Ω |
| Nivel de salida | -127 dBm a +13 dBm |
| Resolución de frecuencia | 0,1 Hz |
| Tipos de modulación | AM, FM, PM, FSK, PSK |
| Distorsión armónica total (THD) | Menor de -30 dBc |
| Estabilidad de frecuencia | ±1 ppm por año |
| Conector de salida RF | BNC (hembra) |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
| Rango de temperatura de funcionamiento | 0 °C a 55 °C |
Fluke 6331 Options:
- 6331 - 2001-IEEE - IEEE-488 Interface, 6330/7320/7340
| Model | 6331 |
|---|

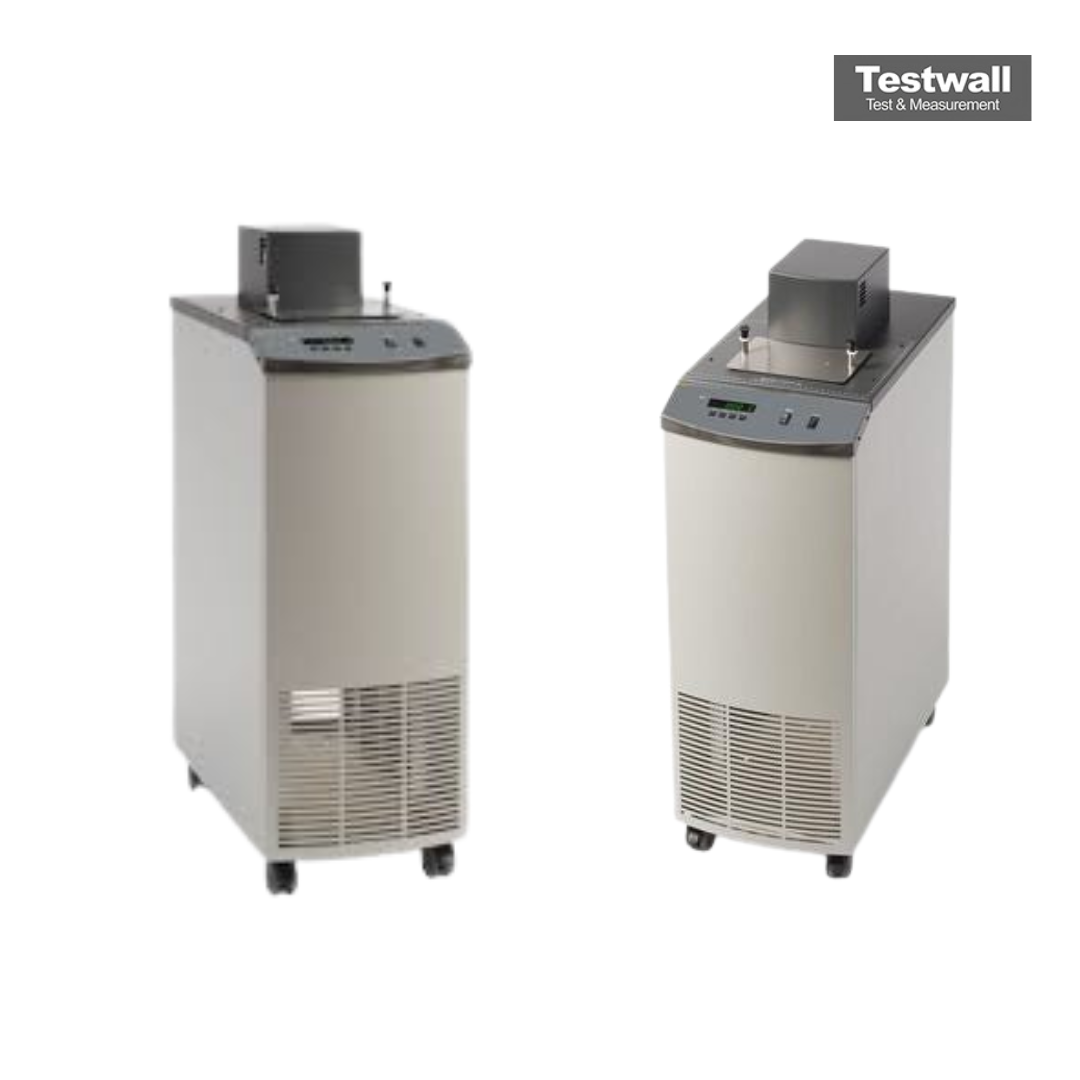

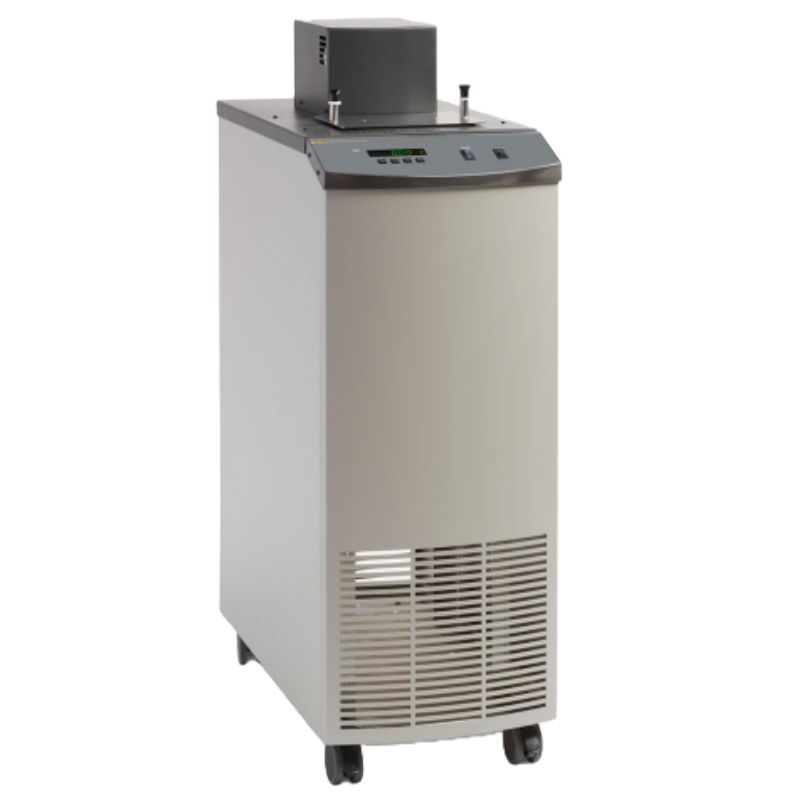

Fluke 6331 Deep-Well Compact Bath 35C to 300C
The Fluke 6331 Deep-Well Compact Bath is used for temperature calibration and best known for it's excellent temperature control, stability and uniformity. lt includes a 457 mm (18-inch) deep tank to accommodate long-stem PRTs, SPRTs, and liquid-in-glass (LIG) thermometers. Despite of it's depth, it has a relatively small footprint, minimizing fluid costs and allowing for quick temperature changes. Fluke 6331 Deep-Well Compact Bath is ideal for calibration laboratories and other environments where precise temperature control and calibration are essential.
Fluke 6331 Deep-Well Compact Bath provides stability and uniformity from ±0.007 °C to ±0.025 °C over its range from 40 °C to 300 °C. Fluke Calibration's control system automatically adds refrigeration when you need to cool down quickly, and shuts down refrigeration when you need to heat up quickly for efficient temperature adjustments. Fluke 6331 can be equipped with the optional LIG Thermometer Calibration Kit for easy and accurate calibration of LIG thermometers. Fluke 6331 Deep-Well Compact Bath is compatible with Fluke Calibration's MET/TEMP II temperature calibration software, for automated probe calibrations.
Specifications for the Fluke 6331 Deep-Well Compact Bath 35C to 300C Include:
| Temperature range | 35 °C to 300 °C |
| Stability | ±0.015 °C at 300 °C (oil 5017) |
| Uniformity | ±0.025 °C at 300 °C (oil 5017) |
| Stabilization Time | 15 €“20 minutes |
