Fluke 709H
| Atributo | Valor |
|---|---|
| Rango de salida de corriente | 4 mA a 20 mA |
| Resolución de corriente | 0,001 mA |
| Exactitud de corriente | ±0,005% del valor medido |
| Rango de medición de presión | 0 a 30 psi / 0 a 2 bar |
| Resolución de presión | 0,001 psi / 0,0001 bar |
| Exactitud de presión | ±0,025% del fondo de escala |
| Fuente de alimentación | 4 pilas AA de 1,5 V |
| Temperatura de funcionamiento | -10 °C a 50 °C |
| Grado de protección | IP40 |
| Interfaz de comunicación | Mini USB para registro de datos y actualización de firmware |
Fluke 709H Options:
- 709H - 709H/TRACK - Optional software/cable for uploading HART device configuration files; outputs data in .csv or .txt format
| Model | 709H |
|---|

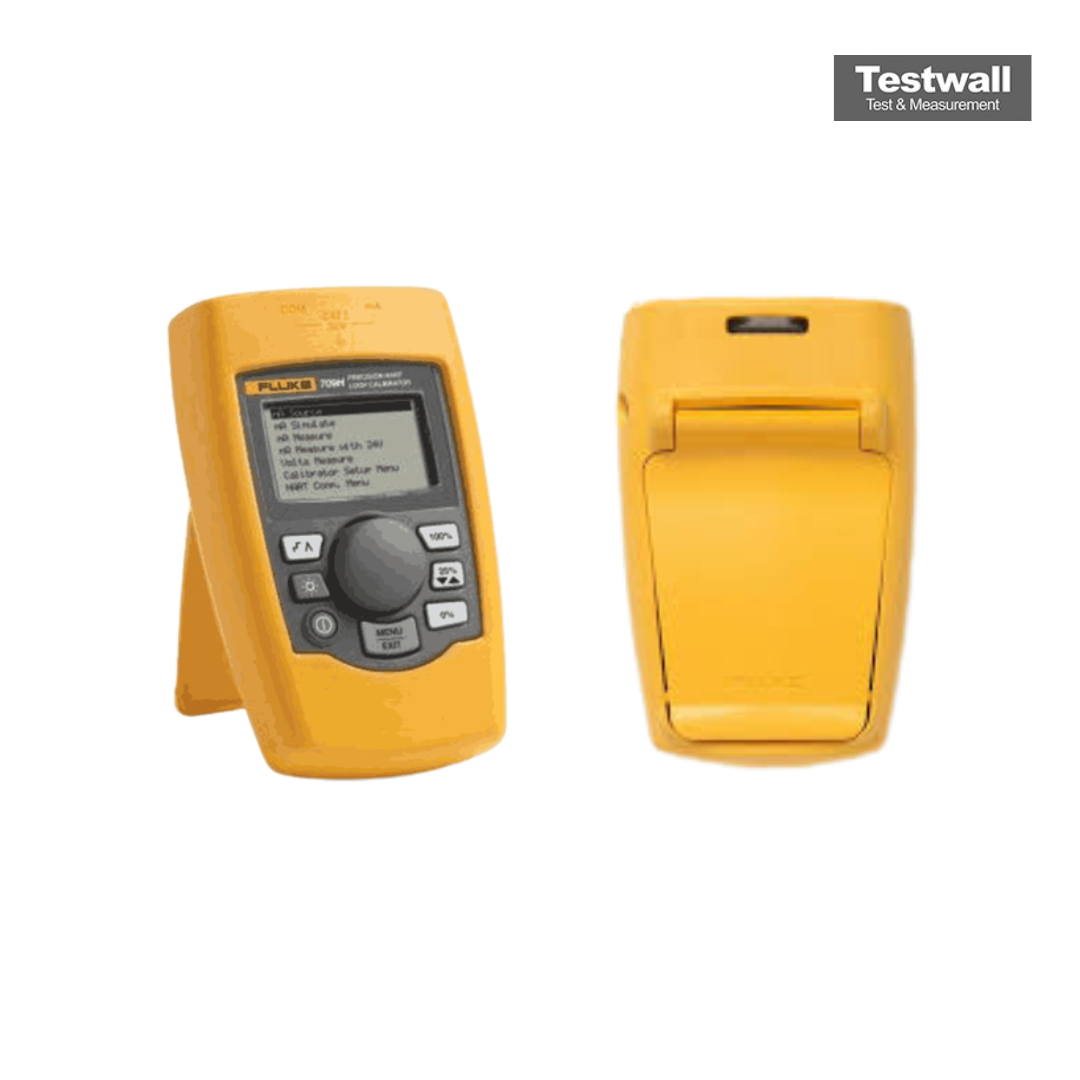

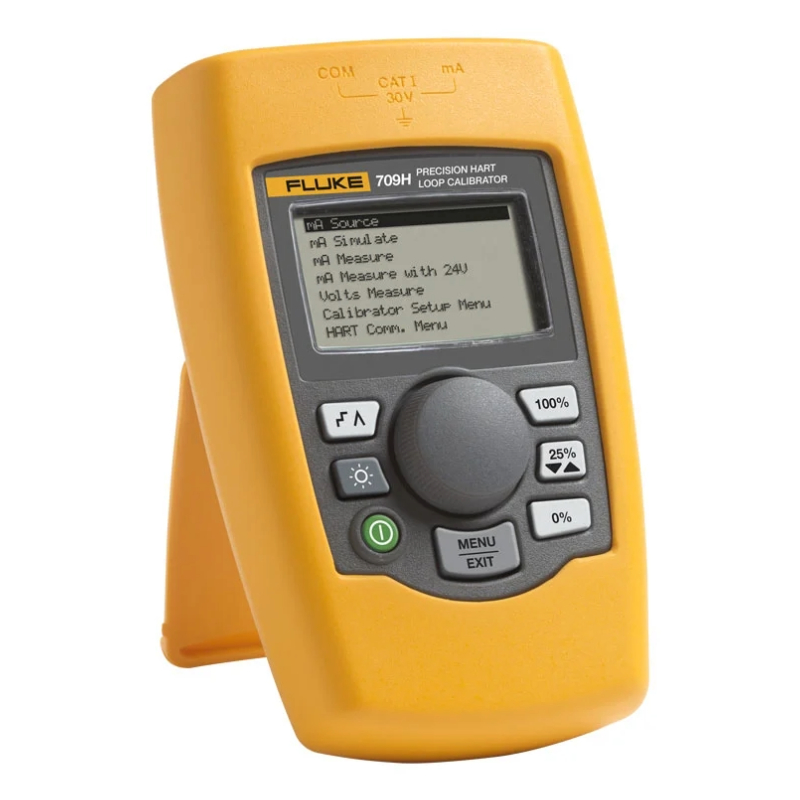

Fluke 709H Precision Cur Loop Calibrator with HART
The Fluke 709H Precision Cur Loop Calibrator with HART is designed to save time and produce high-quality results. These calibrators are built around a user friendly interface with a quick-set rotary encoder knob. This tool reduces the time it takes to measure, or source, cur and power up a loop. The protective holster easily fits into a technician's hand and the large backlit display is easy to read, even in dark, cramped worked areas. Fluke 709H features data lg which offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.
Fluke 709H Precision Cur Loop Calibrator with HART includes HART communication and supports a select set of the HART universal and common practice commands. The 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication troubleshooting tool. In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the mA output on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. Fluke 709H will allow virtually any technician to service and support HART devices.
Specifications for the Fluke 709H Precision Cur Loop Calibrator with HART Include:
| Ranges | mA (0 to 24mA) and Volts (0 to 30VDC) |
| Resolution | 1 µA on mA ranges and 1 mV on voltage range |
| Accuracy | 0.01% +/- 2 counts, all ranges (@23 ° +/- 5 °C) |
| Stability | 20 ppm of F.S. / °C from -10 to 18 °C and 28 to 55 °C |
