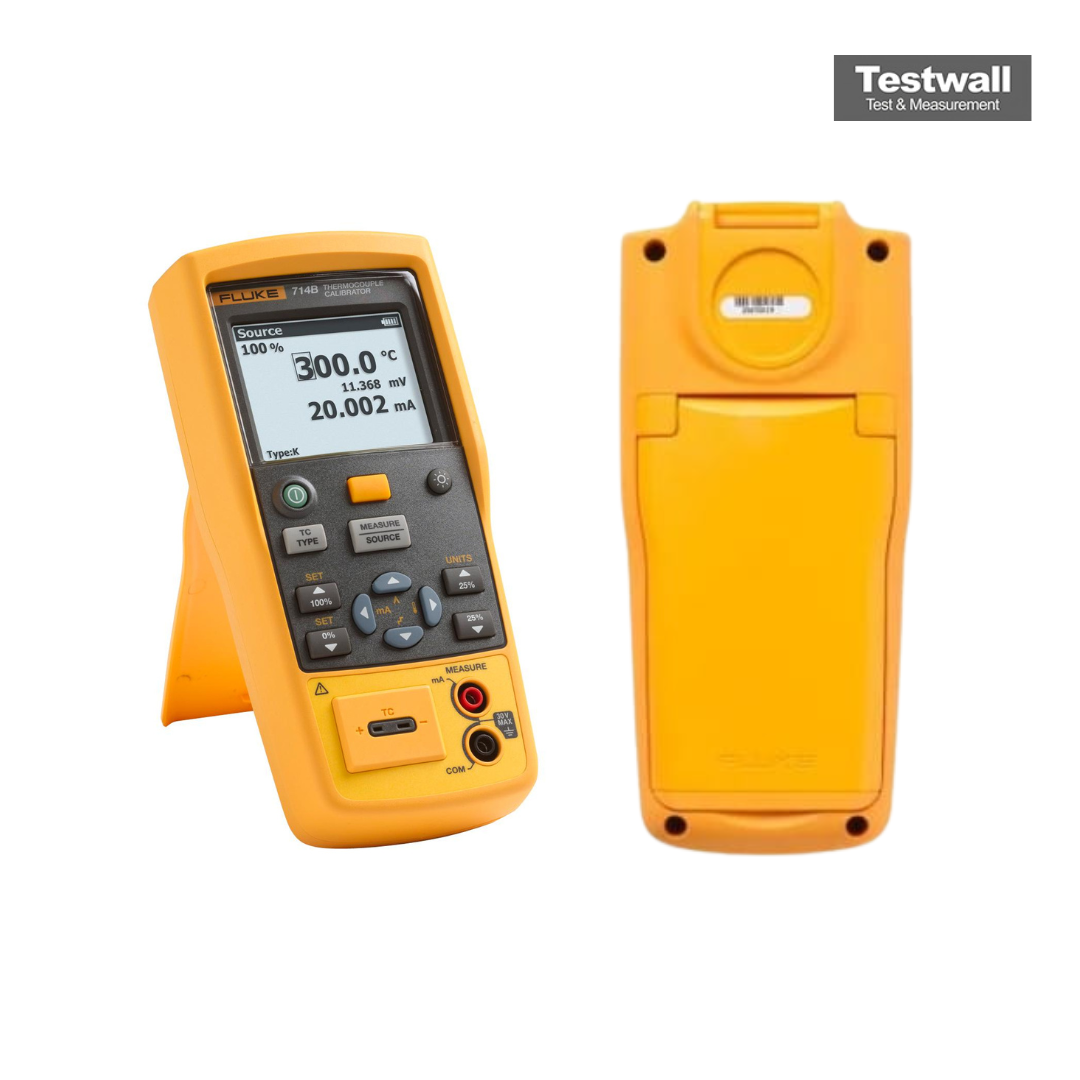

Fluke 714B
| Atributo | Valor |
|---|---|
| Rango de temperatura del termopar | -200 °C a 1372 °C (-328 °F a 2501 °F) |
| Precisión básica | ±0,05% + 0,3 °C |
| Tipos de termopar compatibles | J, K, T, E, N, R, S, B |
| Resolución de la pantalla | 0,1 °C / °F |
| Salida de simulación de termopar | Simula los 8 tipos de termopar estándar |
| Fuente de alimentación | 2 pilas AA de 1,5 V |
| Vida útil de la batería | Aproximadamente 300 horas de uso continuo |
| Temperatura de operación | -10 °C a 50 °C (14 °F a 122 °F) |
| Grado de protección | IP40 |
| Dimensiones (L x An x Al) | 175 mm x 77 mm x 38 mm |
| Model | 714B |
|---|

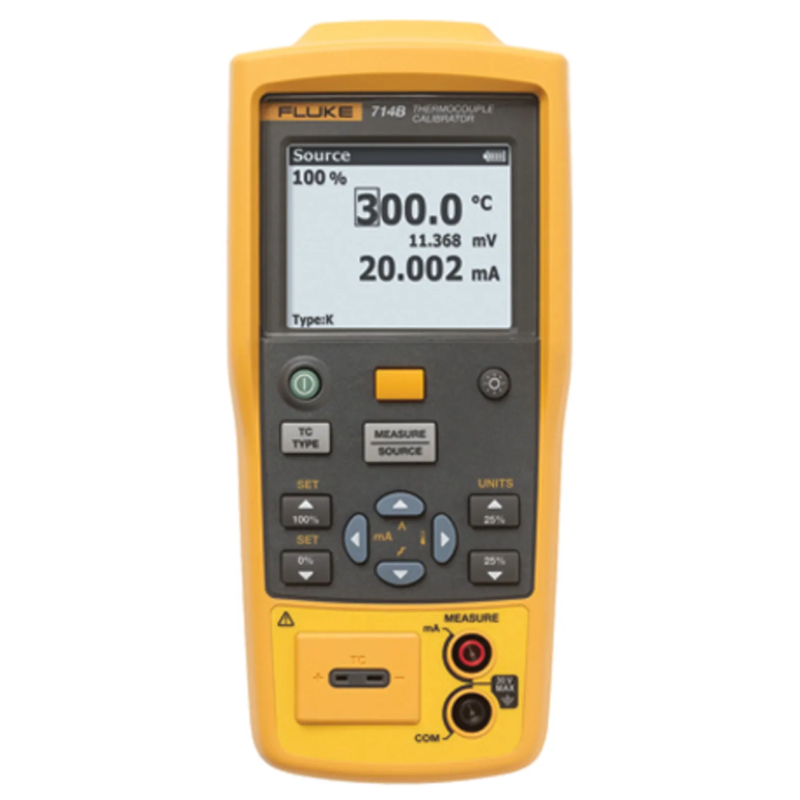

Fluke 714B Thermocouple Calibrator
The Fluke 714B Thermocouple Calibrator is a handheld, battery-operated instrument that measures and sources a variety of thermocouple types and millivolts. It can calibrate a linear thermocouple transmitter with the mV source function and also measure mA while sourcing temperature. Fluke 714B Thermocouple Calibrator also provides linear ramp and 25% step auto ramp functionality based on 0% and 100% settings for performing quick, linearity checks.
Fluke 714B Thermocouple Calibrator is a single function device, meaning it focuses specifically on thermocouple calibration, making it highly accurate and easy to use for this purpose. It features a dual input and backlit display for easy interpretation of measurements, even in poorly lit environments. Built to withstand harsh industrial conditions, this calibrator is compact, lightweight, and easy to carry around. With the intelligent shutdown feature the Fluke 714B Thermocouple Calibrator remembers settings when powered down so you can quickly replicate tests after powering back up.
Specifications for the Fluke 714B Thermocouple Calibrator Include:
| Maximum voltage applied between any two terminal | 30V |
| DC mA measurement range | 0-24 mA |
| Millivolt measurement range | -10 mV to 75 mV |
| Vibration requirements | MIL-T-28800E, Class 2 |
