Fluke 718-300G
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 300 psi (0 a 20 bar) |
| Exactitud | ±0,05% del fondo de escala |
| Tipo de presión | Presión manométrica |
| Fuente de alimentación | 6 pilas AA (1,5 V) |
| Autonomía de la batería | Hasta 40 horas de uso continuo |
| Pantalla | Pantalla LCD de doble línea con retroiluminación |
| Temperatura de funcionamiento | -10 °C a 50 °C |
| Grado de protección | IP40 |
| Conexión de presión | Adaptador de 1/4 NPT macho incluido |
| Peso | Aproximadamente 1,0 kg (con pilas) |
| Model | 718-300G |
|---|

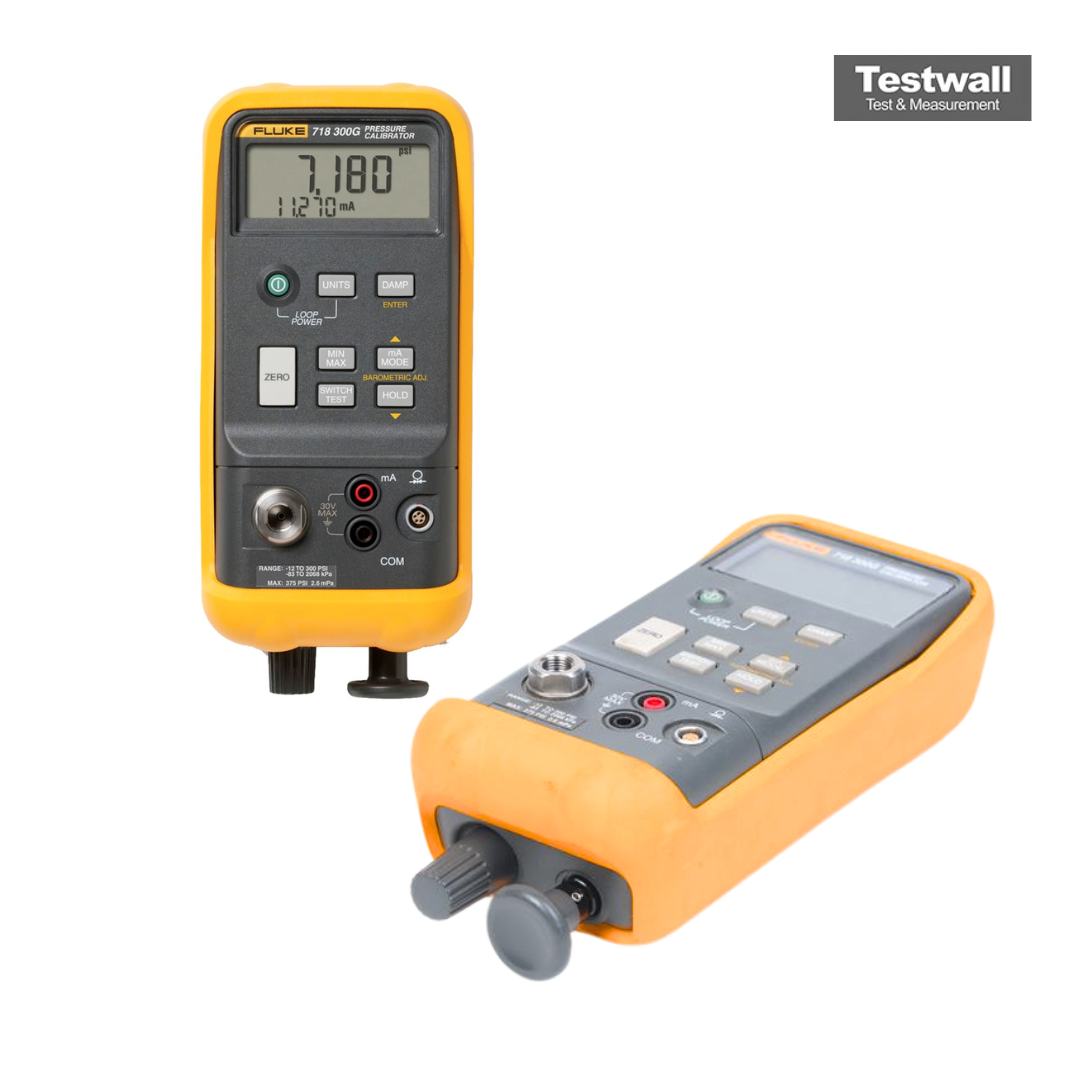

Fluke 718-300G Pressure Calibrator
The Fluke 718-300G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-300G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-300G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-300G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-100G Pressure Calibrator Include:
| Range | -12 PSI to 300 PSI, (-850 mbar to 20.68 bar, -85 to 2068.42 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 375 PSI, 25 bar |
| Functions | Zero, Min, Max, Hold, Damp |
