Fluke 753
| Atributo | Valor |
|---|---|
| Exactitud de calibración de voltaje DC | ±0,015% de lectura + 2 dígitos |
| Rango de voltaje DC | 0 V a 300 V |
| Rango de señal de salida | 4 mA a 20 mA / 0 V a 10 V |
| Fuente de alimentación | 6 pilas AA de 1,5 V |
| Autonomía de la batería | Hasta 150 horas de uso continuo |
| Temperatura de funcionamiento | -10 °C a +55 °C |
| Temperatura de almacenamiento | -40 °C a +60 °C |
| Grado de protección | IP40 |
| Dimensiones (L x An x Al) | 220 mm x 105 mm x 55 mm |
| Peso | 680 g (con pilas incluidas) |
| Model | 753 |
|---|

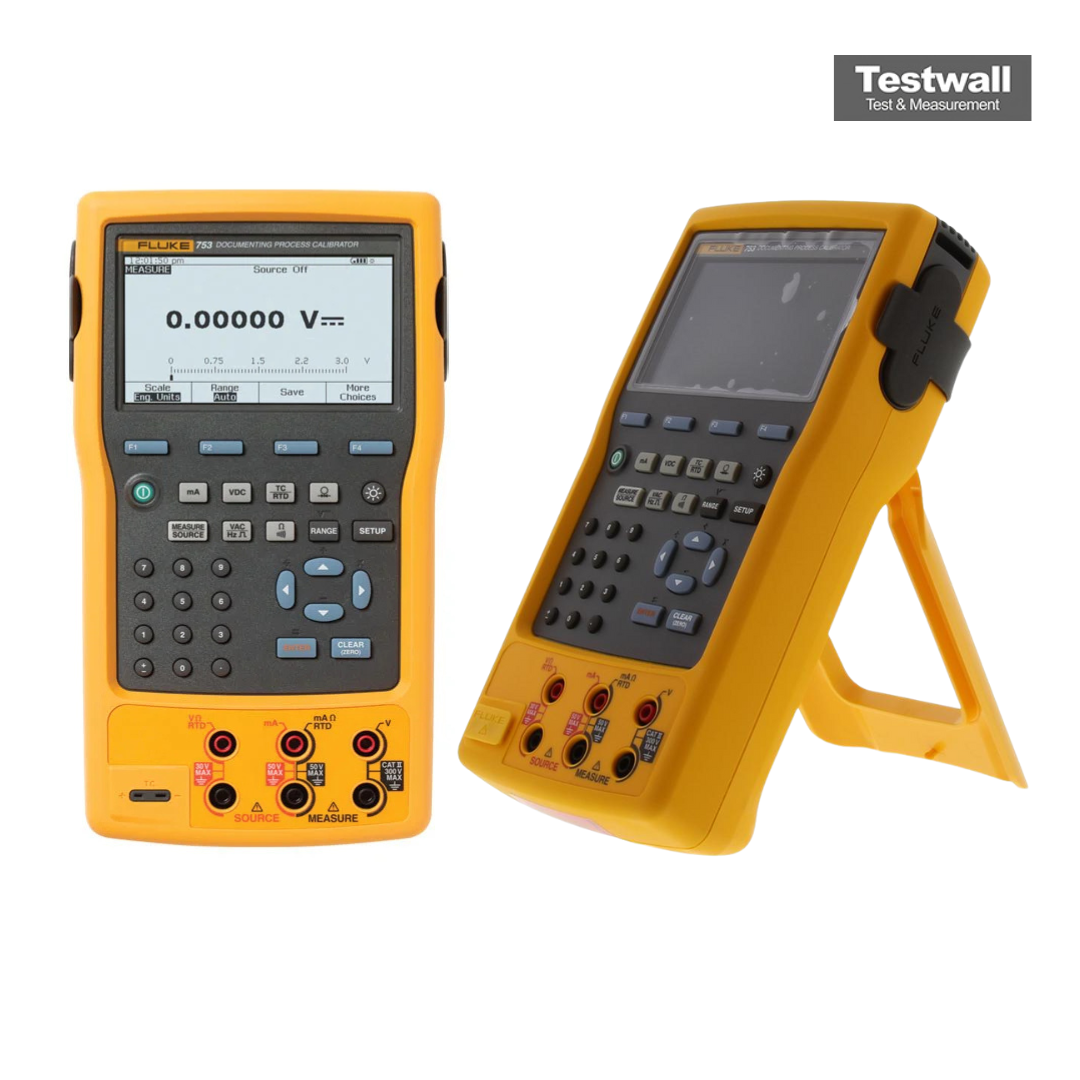

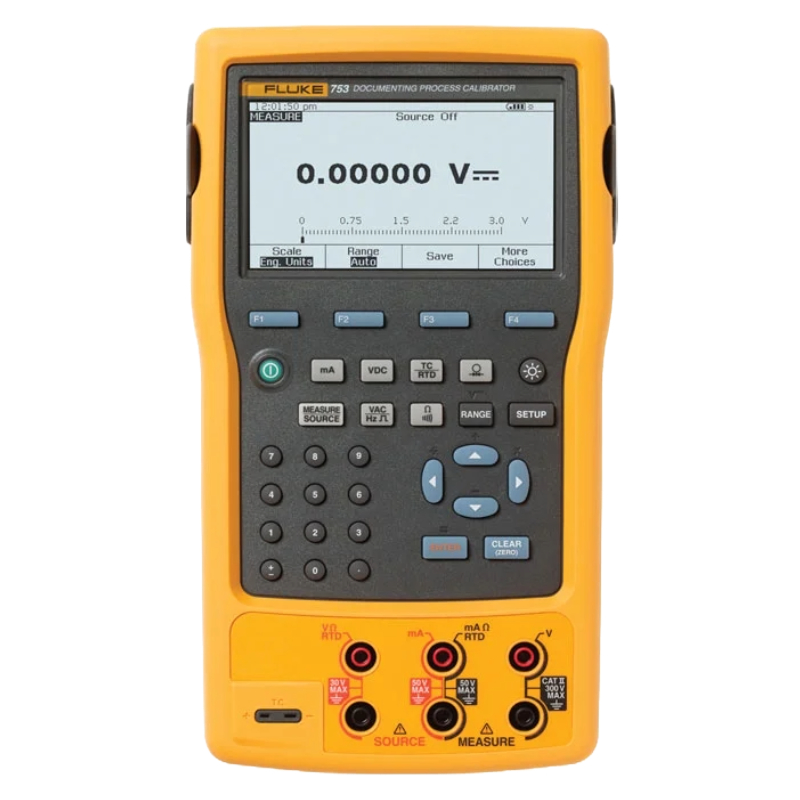

Fluke 753 Documenting Process Calibrator
The Fluke 753 Documenting Process Calibrator is a powerful multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software, and upload data for printing, archiving, and analysis. It does the work of several tools, with simultaneous source and measurement capabilities for all common process parameters. It sources, simulates, and measures pressure, temperature, and electrical signals in one rugged, hand-held calibration tool. It also automates calibration procedures, captures data for documentation, and helps you meet rigorous standards like ISO 9000, FDA, EPA, and OSHA regulations.
The Fluke 753 Documenting Process Calibrator is having many flexible features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more. The 753 includes a USB interface and a USB communication cable to enable two-way communication with DPCTrack 2 and other instrumentation management applications. It features bright white dual display for reading both sourced and measured parameters simultaneously. The Fluke 753 Documenting Process Calibrator offers a comprehensive solution for calibrating, maintaining, and troubleshooting various process instruments and control systems in diverse industries, including manufacturing, pharmaceuticals, petrochemicals, and utilities.
Specifications for the Fluke 753 Documenting Process Calibrator Include:
| Voltage Measurement Accuracy (300V) | 0.05% + 0.05V (dc), 0.5% + 0.2 V(ac) |
| Cur Measurement Accuracy | 0.01% + 20 uA (110.00 mA) |
| Resistance Measurement Accuracy | 0.05% + 50 mΩ (10.000 Ω) |
| Frequency Measurement Accuracy | 0.05 Hz (1.00 to 110.00 Hz / 0.01 Hz) |
