Fluke 754

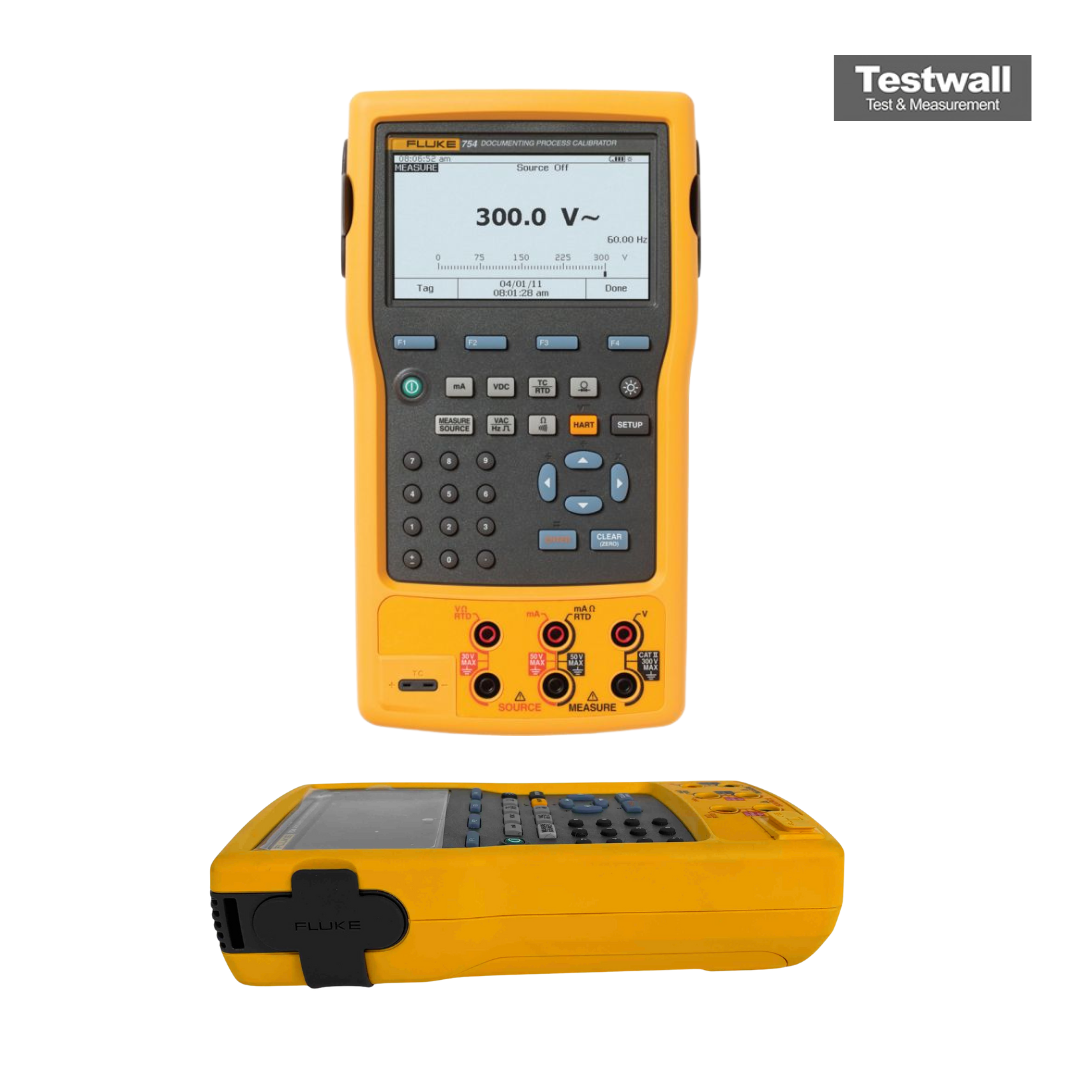

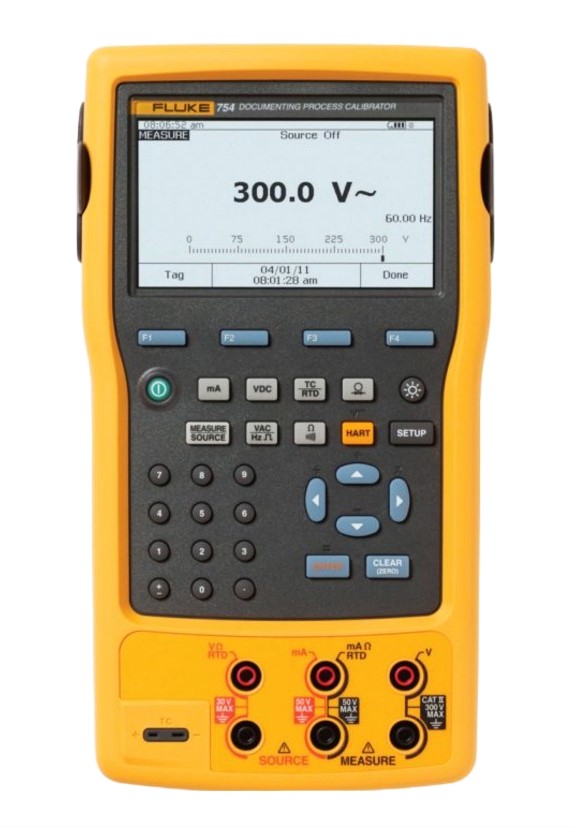

FLUKE 754 DOCUMENTING PROCESS CALIBRATOR

The Fluke 754 Documenting Process Calibrator is a rugged hand-held device that does the work of several tools including sourcing, simulating and measuring pressure, temperature, and electrical signals. This powerful and reliable multifunction documenting calibrator lets you download procedures, lists and instructions and upload data for printing, archiving, and analysis. The powerful built-in HART ® interface makes the Fluke 754 ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

Features and Specifications of the Fluke 754 Documenting Process Calibrator include:

Features of the Fluke 754 Calibrator:

• Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
• Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
• Power transmitters during test using loop supply with simultaneous mA measurement
• Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
• Create and run automated as-found/as-left procedures to satisfy quality programs or regulations
• Record and document results
• Holds up to a full week of downloaded procedures and calibration results.
• Use many features like autostep, custom units, user-entered values during testing, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay, etc.
• Easy to use
• Bright white dual display
• Read both sourced and measured parameters simultaneously
• Multi-lingual interface
• Rechargeable Li-Ion battery for 10 hour, uninterrupted use
• Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms
• Delivered with DPC/Track Sample software
• Compatible with many Asset Management software packages
• Requires no external box or second tool for everyday HART calibration and maintenance
• Offers fast HART communication
• Supports popular models of HART transmitters
• Many devise-specific command support options
• Works with multiple masters, burst mode, and multi-drop configurations
• Easy to update as additional instruments are added and new HART versions are released
• Interrogate to determine device type, manufacturer, model, tag
• Reconfigure the sensor mapping of dual sensor temperature transmitters
• Read HART PV function and smart transmitter digital output while measuring analog mA output
• Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings
• Re-label smart transmitters by reading and writing to HART tag field

Specifications of the Fluke 754 include:
