Fluke 787
| Atributo | Valor |
|---|---|
| Rango de medición de corriente de lazo | 0 mA a 24 mA |
| Resolución de corriente | 0,001 mA |
| Precisión de corriente de lazo | ±0,2% + 2 dígitos |
| Rango de medición de tensión | 0 V a 250 V CA/CC |
| Precisión de tensión | ±1,5% + 5 dígitos |
| Fuente de alimentación de lazo | 24 V CC incorporada para alimentar lazos de 4-20 mA |
| Categoría de seguridad | CAT III 600 V / CAT II 1000 V |
| Alimentación del dispositivo | 6 pilas AA de 1,5 V |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Grado de protección | IP 54 (resistente al polvo y salpicaduras de agua) |
| Model | 787 |
|---|

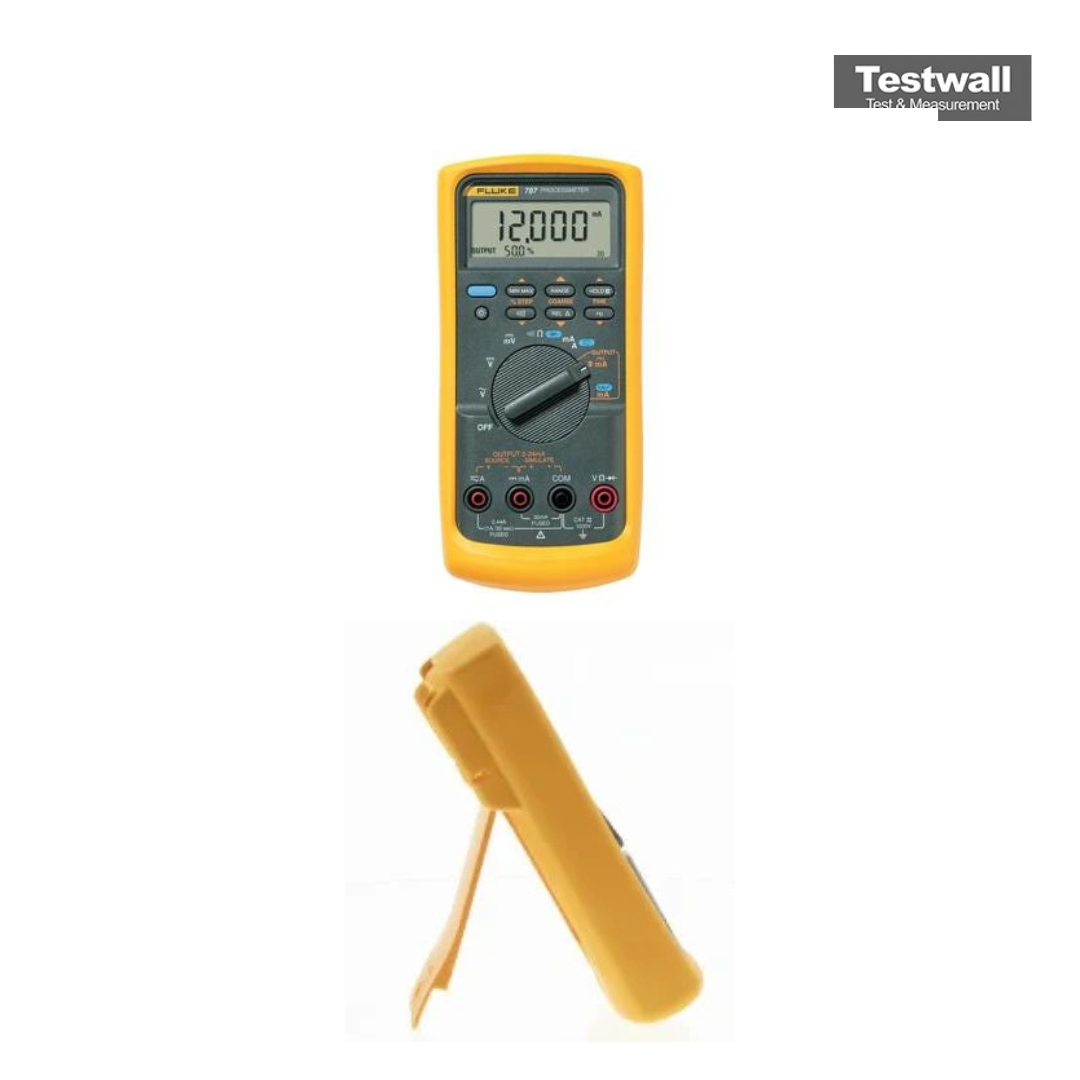

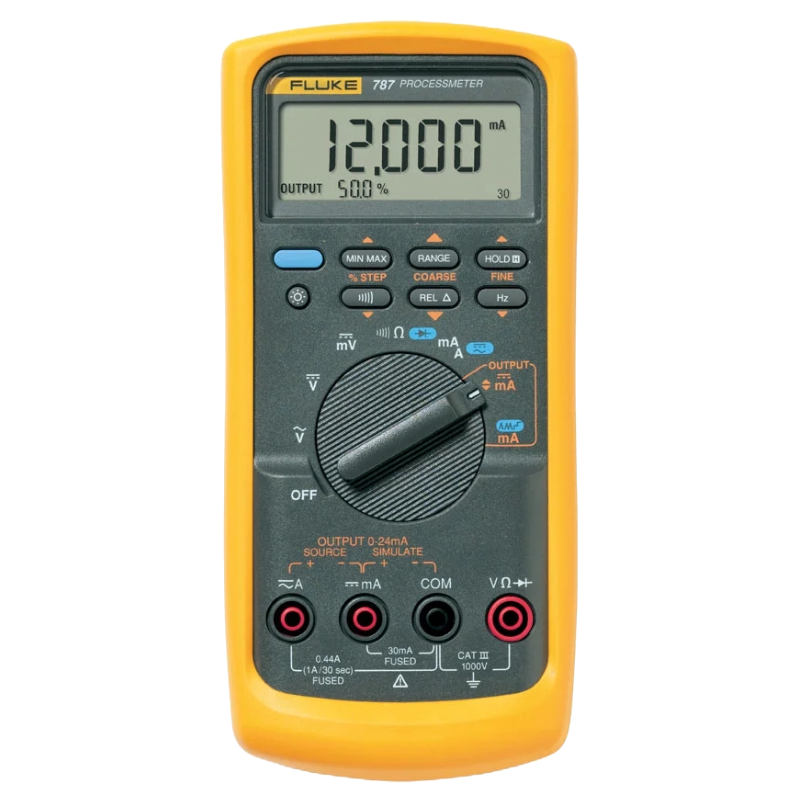

Fluke 787 ProcessMeter Digital Multimeter
The Fluke 787 ProcessMeter Digital Multimeter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. It's a maintenance and calibration tool that will be at home in every instrumentation technician's tool box. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop cur with 1 microamp resolution and 0.05% accuracy.
Fluke 787 ProcessMeter Digital Multimeter puts a complete solution for troubleshooting and calibrating cur loop applications in the palm of your hand so you can get more information, faster and easier. It features user friendly interface with easy-to-read display and intuitive controls. Fluke 787 ProcessMeter Digital Multimeter is suitable for a wide range of applications in industrial and process control settings providing Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper.
Specifications for the Fluke 787 ProcessMeter Digital Multimeter Include:
| Cur measurement range | 0-1 A; 0-30 mA |
| Voltage measurement range | 0-1000 V AC or DC |
| Resistance measurement range | To 40 Mu03a9, 0.2% + 1 LSD |
| Frequency | To 19.999 kHz, 0.005% + 1 LSD |
