Fluke 9102S
| Atributo | Valor |
|---|---|
| Rango de temperatura | -100 °C a 660 °C |
| Estabilidad | ±0,005 °C |
| Uniformidad | ±0,01 °C |
| Resolución de pantalla | 0,001 °C |
| Tiempo de calentamiento | 45 minutos (de temperatura ambiente a 660 °C) |
| Capacidad del pozo de calibración | Diámetro de 25 mm, profundidad de 150 mm |
| Alimentación eléctrica | 100 V - 240 V CA, 50/60 Hz |
| Consumo de potencia | 1100 W |
| Dimensiones (Al x An x Pr) | 330 mm x 165 mm x 280 mm |
| Peso | 7,5 kg |
Fluke 9102S Options:
- 9102S - 9102S-156 - DRY-WELL, HH LOW-TEMP
- 9102S - 9102S - HDRC Handheld Dry-Well
| Model | 9102S |
|---|

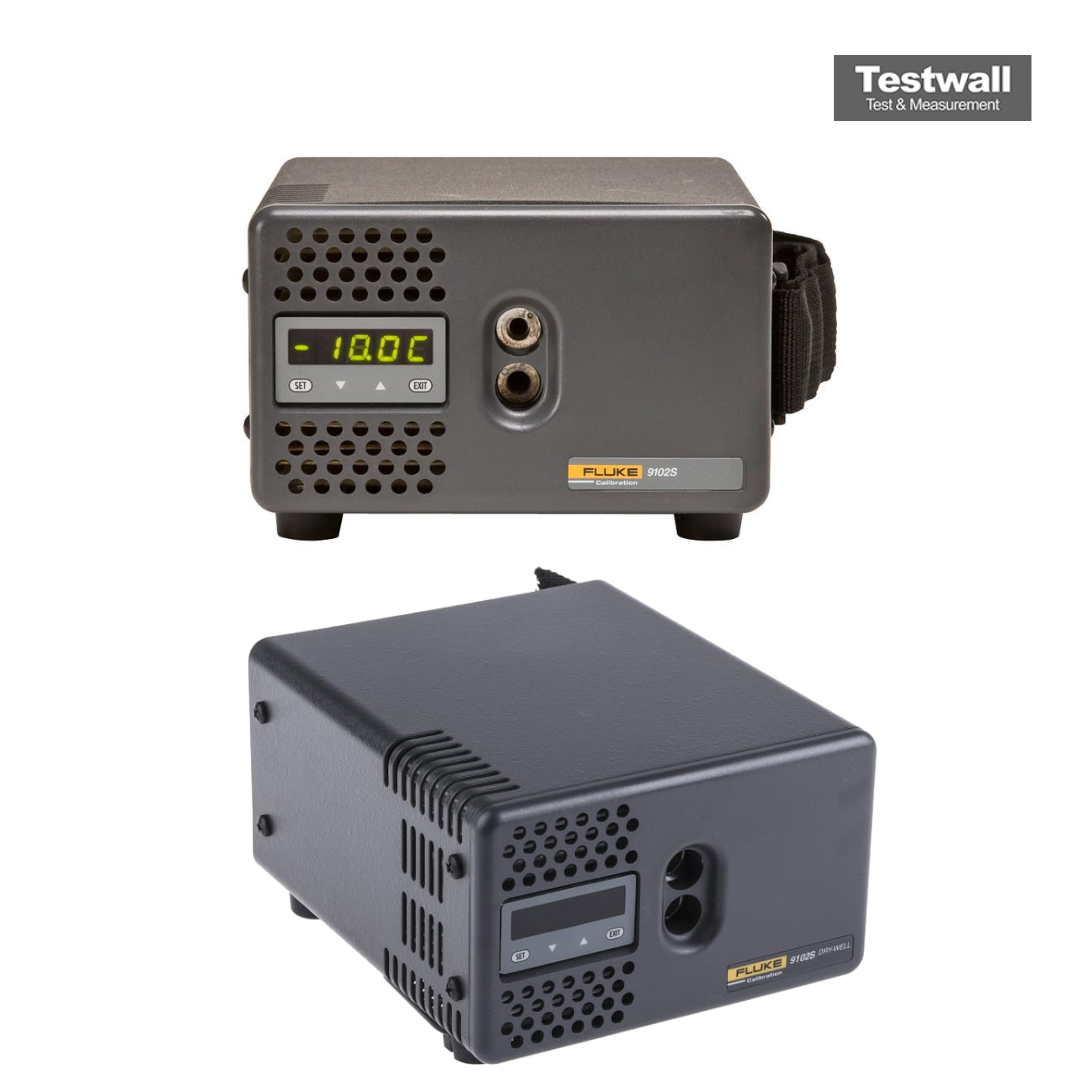

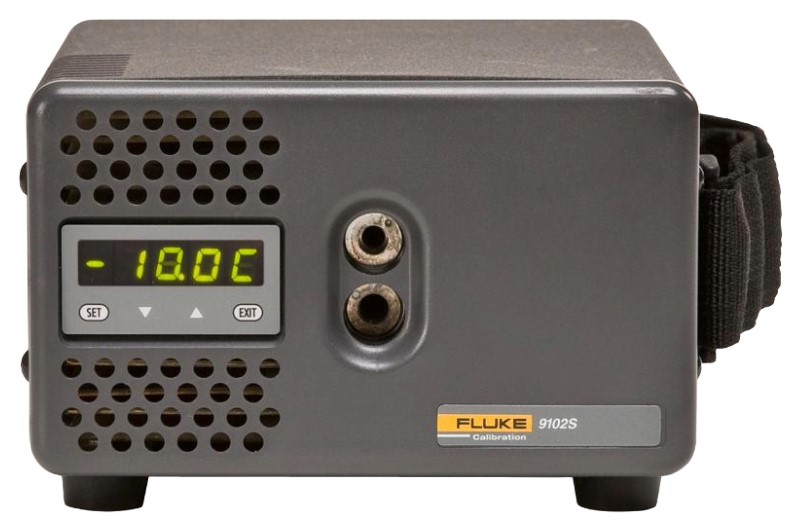

Fluke 9102S Portable Dry-Well Temperature
The Fluke 9102S Portable Dry-Well Temperature is a high-precision temperature calibrator designed for accurate and reliable calibration of temperature sensors and instruments. This dry-well is only four inches high and six inches wide making it easy to integrate into diffe lab setups. Fluke 9102S achieves temperatures as low as €“10 °C, includes a NIST-traceable calibration, and is stable to ±0.05 °C. Fluke 9102S Portable Dry-Well Temperature is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
Fluke 9102S Portable Dry-Well Temperature has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size. This dry-well also has a battery pack option that gives you approximately four hours of field use when AC power is unavailable. It is equipped with an RS-232 interface for connectivity with PC. Fluke 9102S Portable Dry-Well provides high accuracy and excellent uniformity throughout the bath, ensuring that your calibration results are reliable and repeatable.
Specifications for the Fluke 9102S Portable Dry-Well Temperature Include:
| Range | €“10 °C to 122 °C (14 °F to 252 °F) at 23 °C ambient |
| Accuracy | ±0.25 °C |
| Stability | ±0.05 °C |
| Heating times | Ambient to 100 °C: 10 minutes |
