Fluke 9150-A
| Atributo | Valor |
|---|---|
| Rango de temperatura | -45 °C a 155 °C |
| Estabilidad de temperatura | ±0,01 °C |
| Uniformidad de temperatura | ±0,005 °C |
| Resolución de pantalla | 0,001 °C |
| Capacidad del pozo de inserción | Hasta 24 sensores simultáneamente |
| Tiempo de calentamiento | Aproximadamente 30 minutos hasta temperatura máxima |
| Fuente de alimentación | 100 V a 240 V CA, 50/60 Hz |
| Consumo de potencia | 750 W máximo |
| Dimensiones (Al x An x Pr) | 394 mm x 216 mm x 330 mm |
| Peso | 13,6 kg |
Fluke 9150-A Options:
- 9150-A - A - Thermocouple Furnace with Insert "A" included
- 9150-B - B - Thermocouple Furnace with Insert "B" included
- 9150-C - C - Thermocouple Furnace with Insert "C" included
- 9150-D - D - Thermocouple Furnace with Insert "D" included
| Model | 9150-A |
|---|

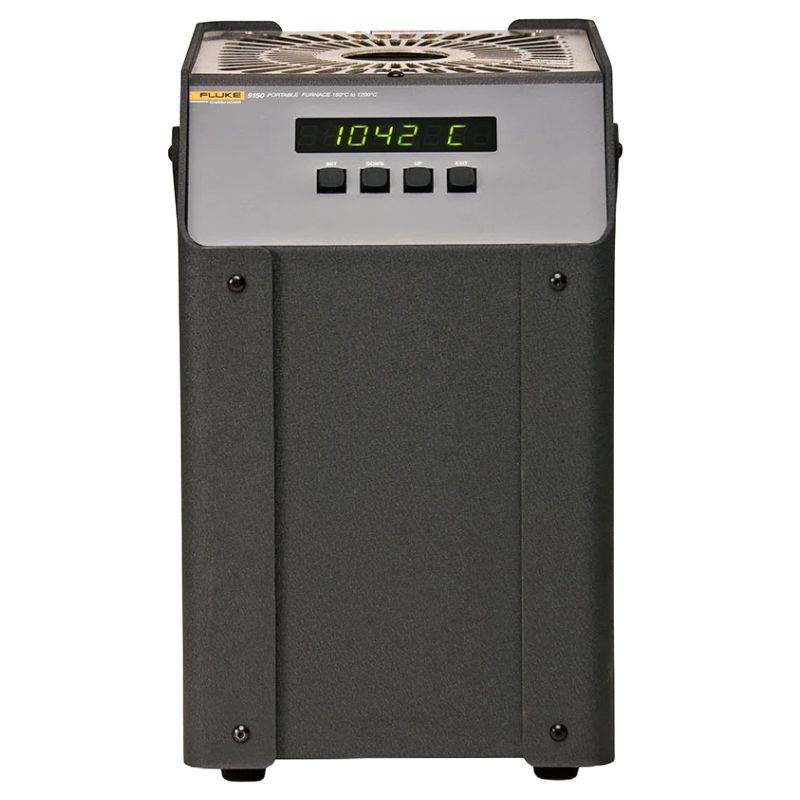

Fluke 9150-A Thermocouple Furnace
The Fluke 9150-A Thermocouple Furnace is a highly accurate and versatile dry block designed for calibrating a wide range of thermocouples. It offers exceptional termperature stability and control, making it ideal for various industrial and laboratory applications. With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across its entire range. With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch to 1/2 inch in diameter. The Fluke 9150-A Thermocouple Furnace works with 115 or 230 VAC power.
Fluke 9150-A Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and setpoint accuracy. It has a removable well insert for versatility. Well-inserts are removable for even greater versatility, while multiple fault protection devices ensure user and instrument safety and protection. It has rapid cool-down and heat-up times. With a large LED front panel, the cur well temperature can be read and set to any desired temperature within the specified range. Fluke 9150-A Thermocouple Furnace comes with an RS-232 port for connection to a PC.
Specifications for the Fluke 9150-A Thermocouple Furnace Include:
| Temperature range | 150 °C to 1200 °C (302 °F to 2192 °F) |
| Display resolution | 0.1 ° to 999.9 °, 1 ° above 1000 ° |
| Stability | ±0.5 °C |
| Display accuracy | ±5 °C |
