Fluke CFP-100-Q
| Atributo | Valor |
|---|---|
| Tipo de fibra compatible | Multimodo y monomodo |
| Estándares de prueba | IEEE 802.3, TIA-568, ISO/IEC 14763-3 |
| Longitudes de onda | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Rango dinámico | hasta 62 dB |
| Pantalla | Pantalla táctil a color de alta resolución |
| Autonomía de la batería | hasta 8 horas de uso continuo |
| Almacenamiento de resultados | más de 10.000 resultados de prueba |
| Conectividad | USB, Wi-Fi, Bluetooth |
| Certificación | Certificación de cableado de fibra óptica Tier 1 y Tier 2 |
| Temperatura de funcionamiento | 0 °C a 50 °C |
Fluke CFP-100-Q Options:
- CFP-100-Q - CFP-100-Q/GLD - CertiFiber Pro Quad OLTS kit with WiFi adapter and 1 year Gold Support
- CFP-100-Q - CFP-100-QI - CertiFiber Pro Quad OLTS with double ended inspection kit
- CFP-100-Q - CFP-100-QI-W - CertiFiber Pro Quad OLTS kit with double ended inspection and WiFi adapter
- CFP-100-Q - CFP-100-QI-W/GLD - CertiFiber Pro Quad OLTS kit with double ended inspection, WiFi adapter and 1 year Gold Support
- CFP-100-Q - GLD-CFP-100-Q - 1 year Gold Support CFP-100-Q
- CFP-100-Q - GLD-CFP-100-Qi - 1 year Gold Support CFP-100-Qi
- CFP-100-Q - CFP-Q-ADD - CertiFiber Pro Quad Add On Kit (modules and SC/LC TRCs)
- CFP-100-Q - CFP-Q-ADD-R - CertiFiber Pro Quad Add On Kit with Remote (modules and SC/LC TRCs)
| Model | CFP-100-Q |
|---|

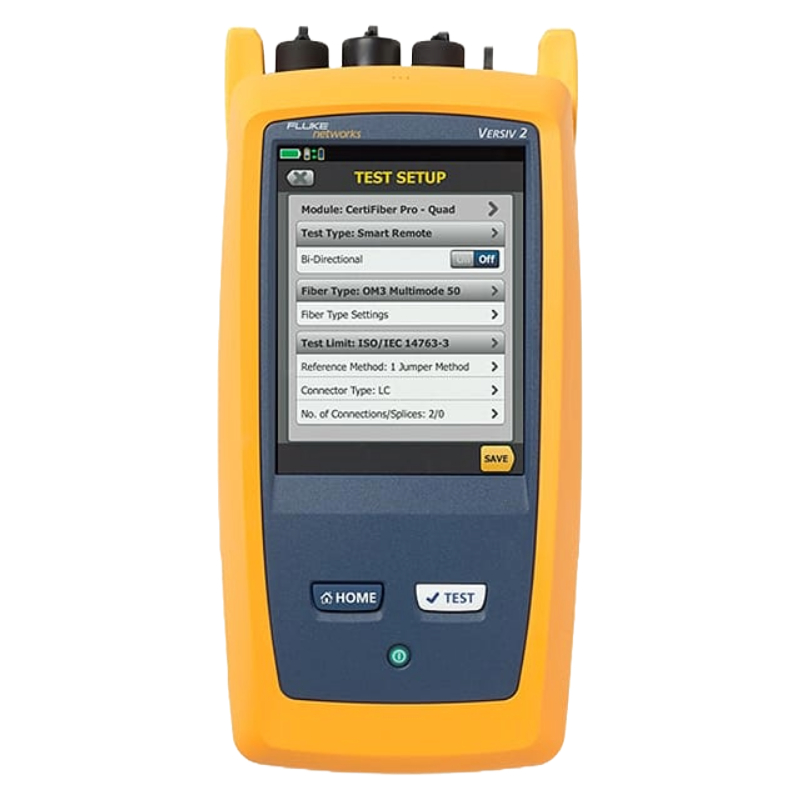

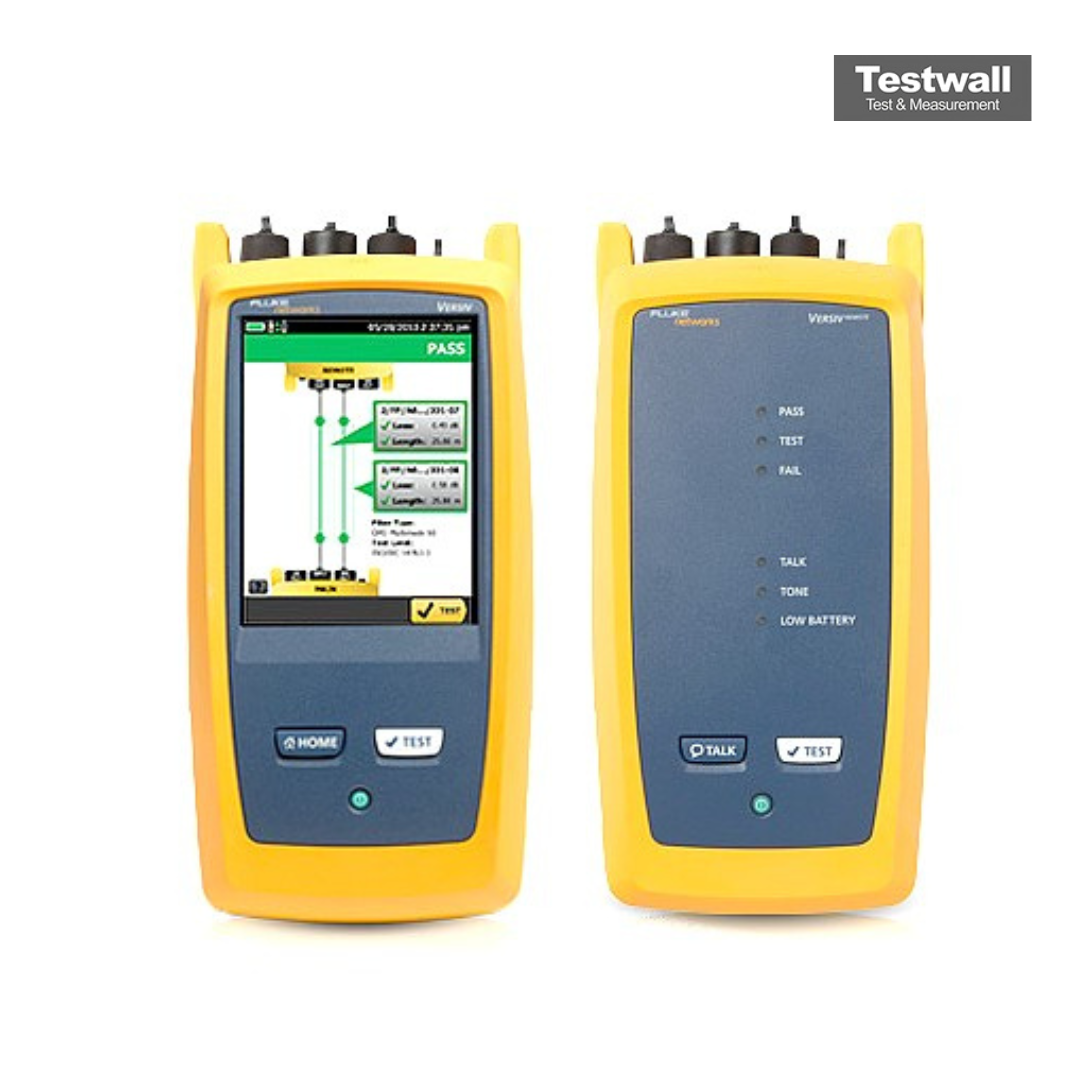

FLUKE CFP-100-Q CertiFiber Pro Quad Optical Loss Test Set
The Fluke CFP-100-Q CertiFiber Pro is a Tier 1 fiber certification solution and part of the Versiv Cabling Certification product family, designed for testing and certifying fiber optic cabling systems. It is equipped with the revolutionary ProjX management system and Taptive user interface, ensuring accurate and error-free certification from initial setup to system acceptance.
The Fluke CFP-100-Q includes copper certification and OTDR analysis modules, providing a comprehensive solution for cabling professionals. With features like the three-second Autotest optical loss measurement, automatic Pass/Fail analysis, and LinkWare PC management software, the CertiFiber Pro accelerates the testing process and simplifies tasks for technicians of all skill levels. It complies with industry standards, including Encircled Flux launch conditions, and allows for combined OLTS Tier 1, OTDR Tier 2 certification, end-face inspection, and reporting when paired with OptiFiber Pro OTDR. The CertiFiber Pro is a versatile tool that enhances efficiency, accuracy, and project management in certifying fiber optic cabling.
Specifications for the FLUKE CFP-100-Q CertiFiber Pro Quad Optical Loss Test Set Include:
| Wavelengths | 80 V850 nm, 1300 nm, 1310 nm, 1550 nm |
| Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) |
| Maximum Length Measurement | 12 km (Multimode Modules) 130 km (Singlemode Modules) |
| Length Measurement Accuracy | ± 1.5 m plus ± 1 % of length |
