Fluke ESA620
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 kHz a 1 MHz |
| Rango de voltaje de prueba | 500 V, 1000 V, 1500 V, 2000 V, 2500 V CC |
| Rango de medición de resistencia de aislamiento | 0,01 MΩ a 20 GΩ |
| Prueba de resistencia de tierra | 0,1 Ω a 1999 Ω |
| Corriente de cortocircuito máxima | 3 mA CC |
| Medición de continuidad | 0,1 Ω a 100 Ω |
| Fuente de alimentación | Batería recargable de iones de litio integrada |
| Pantalla | Pantalla LCD retroiluminada de alta resolución |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Grado de protección | IP40 |
Fluke ESA620 Options:
- ESA620 - 2785725 - ESA620 Electrical Safety Analyzer US, 115 V 20 A
- ESA620 - 3051408 - ESA620 Electrical Safety Analyzer EUR, 230 V
- ESA620 - 3051390 - ESA620 Electrical Safety Analyzer FR, 230 V
- ESA620 - 3051413 - ESA620 Electrical Safety Analyzer ISR, 230 V
- ESA620 - 3051436 - ESA620 Electrical Safety Analyzer AUS, 230 V
- ESA620 - 3051449 - ESA620 Electrical Safety Analyzer UK, 230 V
- ESA620 - 3051451 - ESA620 Electrical Safety Analyzer SWI, 230 V
- ESA620 - 1903307 - Retractable Test Leads
- ESA620 - 2242165 - Ground Pin Adapter
- ESA620 - 2067864 - Kelvin Cable Set for 4-Wire Measurement
| Model | ESA620 |
|---|

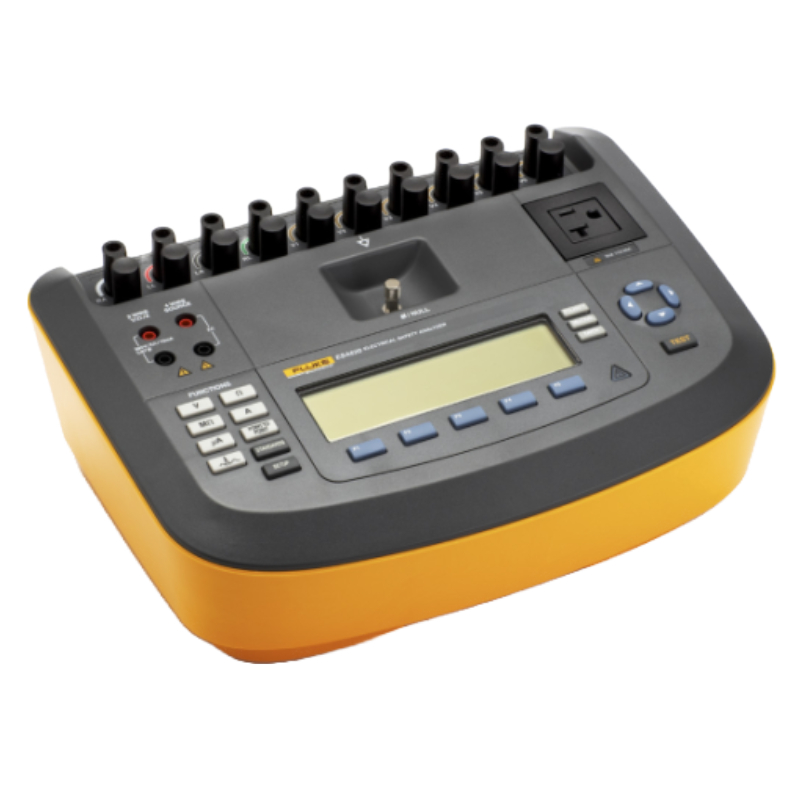

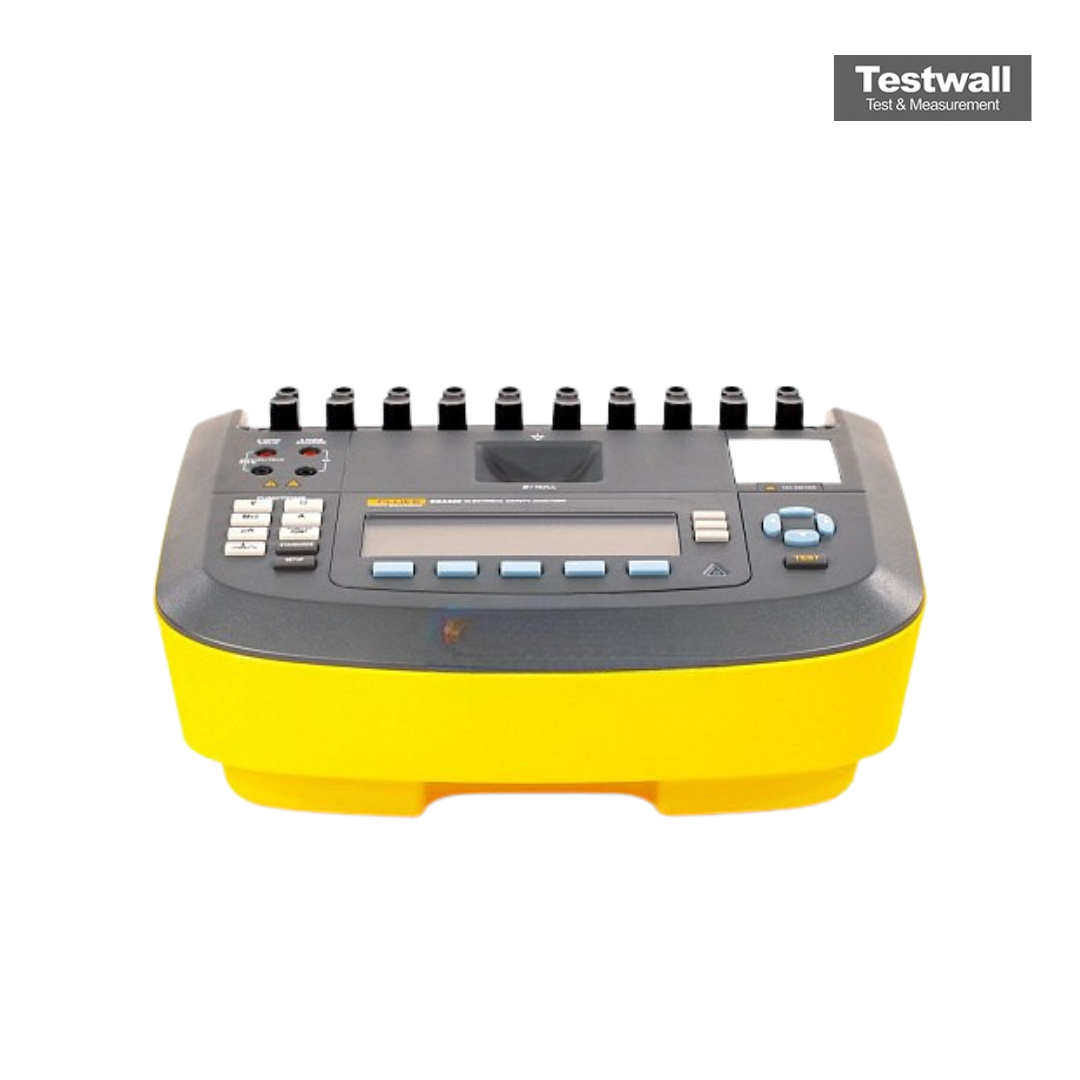

Fluke ESA620 Electrical Safety Analyzer
Fluke ESA620 Electrical Safety Analyzer, featuring smart technology to enhance productivity under any standard, represents the next generation in portable electrical safety testers. With selections of three test loads, two protective earth test currents and two insulation test voltages, this versatile device performs all primary electrical safety tests as well as several additional leakage tests for premium standards compliance worldwide. A convenient 20A device receptacle broadens the range of equipment that can be tested using the Fluke ESA620 Electrical Safety Analyzer.
Fluke ESA620 Electrical Safety Analyzer features standard 2-wire and optional 4-wire protective earth measurement capabilities offer first-rate time savings, while new DSP technology offers better accuracy of leakage measurements throughout specified ranges. Equipped with ten unique safety-enhanced ECG posts, the ESA620 offers simulation of ECG and performance waveforms so both electrical safety and basic tests on patient monitors can be performed with a single connection. When combined with optional Ansur computer-based software, Fluke ESA620 allows for test procedure automation, the capture of results and comparison to standard limits, printed reports, and total digital data management.
Specifications for the Fluke ESA620 Electrical Safety Analyzer Include:
| Voltage | 0 V ac to 300 V ac RMS |
| Equipment Current | 0 A to 20 A |
| Earth Resistance | 0 Ω to 2 Ω |
| Leakage Cur Ranges | 0 µA to 199.9 µA, 200 µA to 1999 µA, 2 mA to 10 mA |
