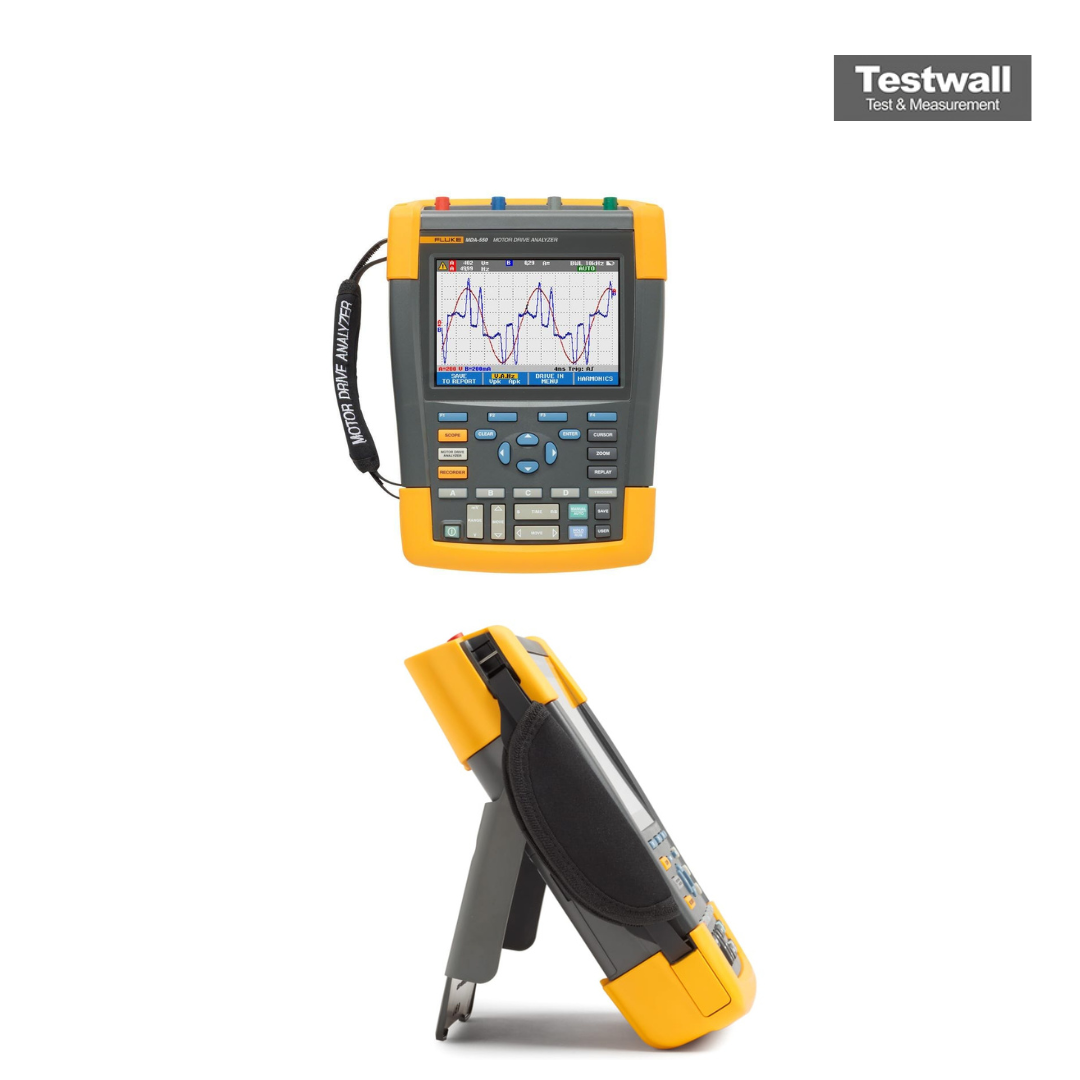

Fluke MDA-550
| Atributo | Valor |
|---|---|
| Tipo de analizador | Analizador de accionamientos de motores (MDA) |
| Número de canales | 4 canales de tensión + 4 canales de corriente |
| Rango de tensión máxima | 1000 V CAT III / 600 V CAT IV |
| Rango de corriente | Hasta 1400 A (con pinzas de corriente compatibles) |
| Ancho de banda | 25 MHz |
| Frecuencia de muestreo | 100 MS/s |
| Pantalla | Pantalla táctil LCD a color de 7 pulgadas |
| Mediciones de motor | Análisis de tensión, corriente, potencia, par, velocidad y eficiencia del motor |
| Compatibilidad de comunicación | USB, Wi-Fi, Ethernet |
| Alimentación | Batería recargable de iones de litio con autonomía de hasta 4 horas |
Fluke MDA-550 Options:
- MDA-550 - SVS-500 - Set of 3x brushes, probe holder, two-piece extension rod and magnetic base
- MDA-550 - SB-500 - Set of 3x replacement brushes
| Model | MDA-550 |
|---|

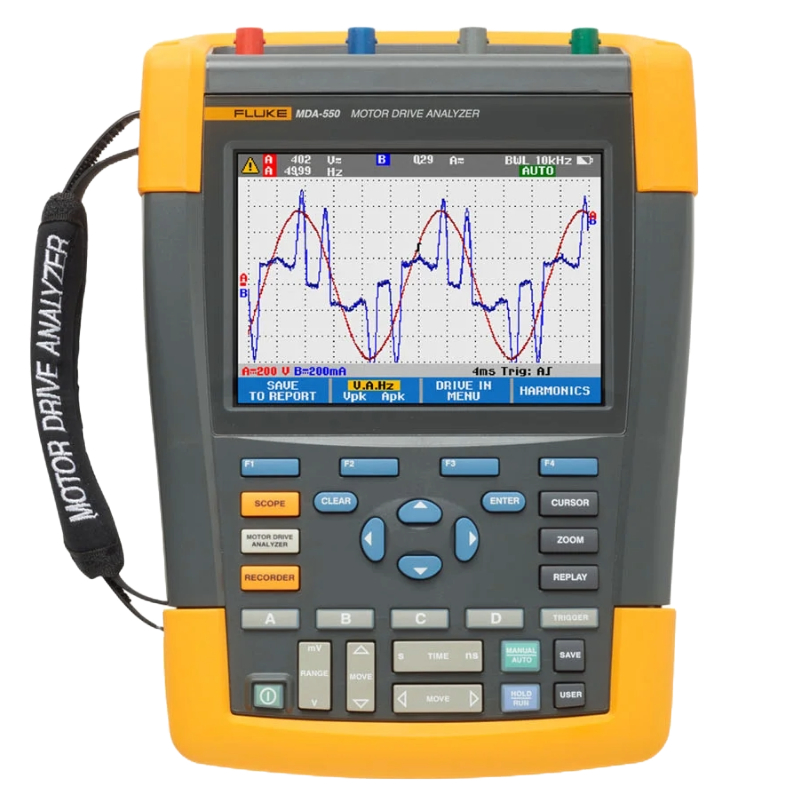

FLUKE MDA-550 Motor Drive Analyzer
The Fluke MDA-550 Motor Drive Analyzer is designed to save time and eliminate the hassle of setting up complex measurements, while simplifying motor-drive troubleshooting. It can measure key motor-drive parameters including voltage, current, DC Bus voltage level and AC ripple, voltage and cur unbalance and harmonics, voltage modulation, and motor shaft voltage discharges. Also Fluke MDA-550 can perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.
Fluke MDA-550 Motor Drive Analyzer can measure additional electrical parameters with full 500 MHz oscilloscope, meter and recording capability for complete range of electrical and electronic measurement on industrial systems. It uses simplified measurement setup with preset measurement profiles to automatically trigger data collection based on the chosen test procedure. Fluke MDA-550 can conduct guided measurements for motor-drive input, DC bus, drive output, motor input and shaft measurements with graphical step-by-step voltage and cur connection diagrams. Fluke MDA-550 Motor Drive Analyzer creates reports quickly and easily that are perfect for documenting troubleshooting and collaborative work with others.
Specifications for the FLUKE MDA-550 Motor Drive Analyzer Include:
| Maximum voltage with 10:1 or 100:1 probe | 1000 V |
| Maximum resolution with 10:1 or 100:1 probe (voltage to ground) | 1mV |
| Frequency Range | 1.000 Hz to 500 MHz |
| Full Scale Reading | 999 counts (AC + DC) |
