Fujikura

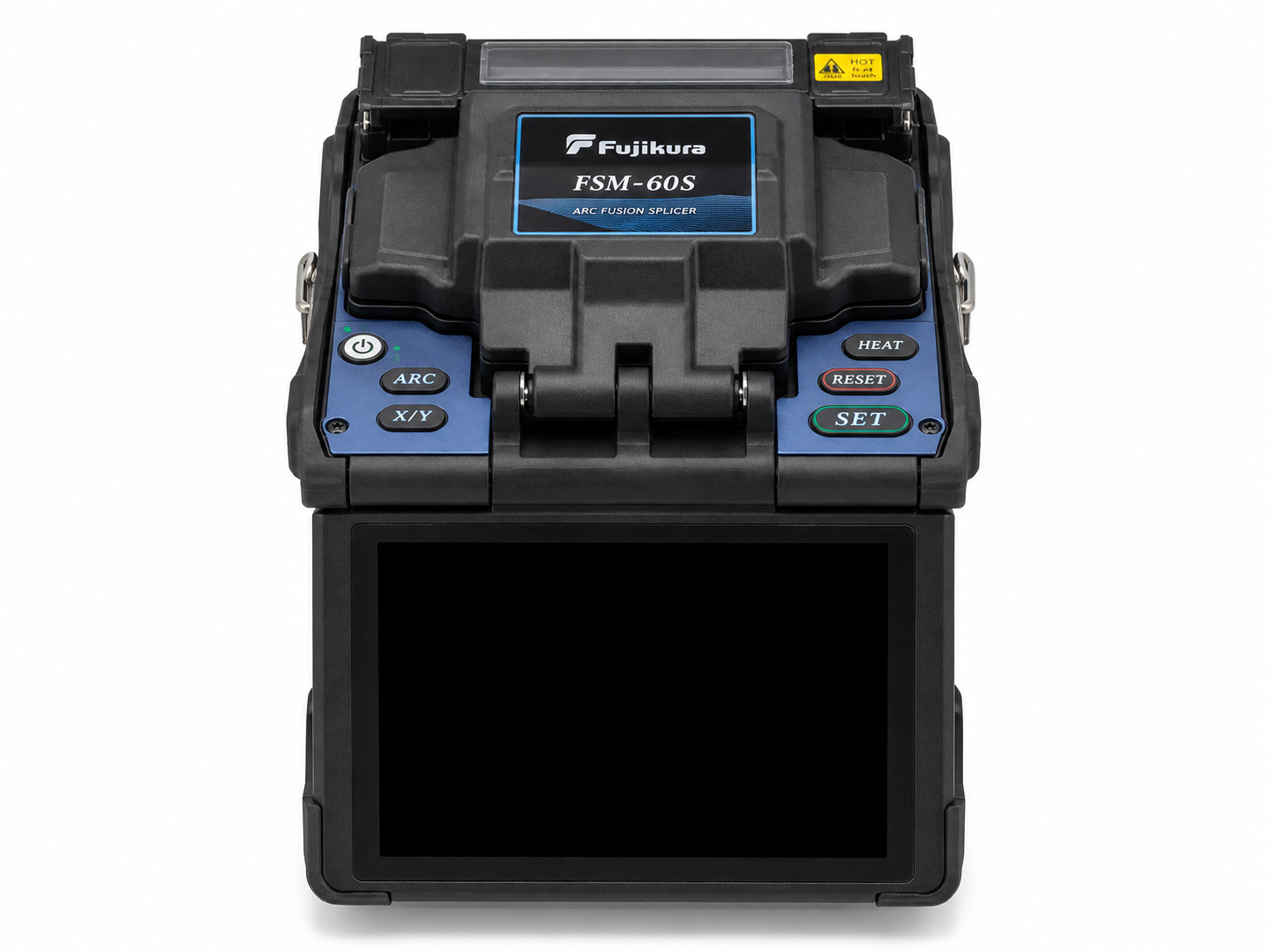

Fujikura FSM-60S
Fusion Splicer SM & MM
Monomodo, Multimodo, NZ-DSF, DSF Tipo de fibra compatible
9 segundos Tiempo de empalme
15 segundos Tiempo de calentamiento de la protectora
0,02 dB Pérdida de empalme típica (SM)
270 ciclos de empalme por carga Capacidad de la batería
| Atributo | Valor |
|---|---|
| Tipo de fibra compatible | Monomodo, Multimodo, NZ-DSF, DSF |
| Tiempo de empalme | 9 segundos |
| Tiempo de calentamiento de la protectora | 15 segundos |
| Pérdida de empalme típica (SM) | 0,02 dB |
| Capacidad de la batería | 270 ciclos de empalme por carga |
| Pantalla | Monitor LCD a color de 5,0 pulgadas |
| Método de alineación | Alineación por núcleo activo (Core) |
| Temperatura de funcionamiento | -10 °C a +50 °C |
| Resistencia al polvo y al agua | IP52 |
| Peso | 2,1 kg (incluyendo batería) |
Fujikura FSM-60S Options:
- FSM-60S - FH-60-250 - Fibre Holder for 250µm coating
- FSM-60S - FH-60-900 - Fibre Holder for 900µm coating
- FSM-60S - CLAMP-S60A - Sheath Clamp for coating diameter up to 250µm, 8mm to 16mm cleave / for coating diameter of over 250µm, 16mm cleave
- FSM-60S - CLAMP-S60B - Sheath Clamp for coating diameter up to 1000µm, 8mm to 16mm cleave
- FSM-60S - CLAMP-S60C - Sheath Clamp for 900µm loose tube fibre
- FSM-60S - BTR-08 - Battery Pack
- FSM-60S - DCC-14 - Battery Charge Cord for connecting BTR-08 and ADC-13
- FSM-60S - DCC-12 - DC Power Cord for ADC-13, cigarette lighter socket type
- FSM-60S - DCC-13 - DC Power Cord for ADC-13, alligator clamp type
- FSM-60S - MGS-06 - Magnifier with bracket
- FSM-60S - ELCT2-20A - Electrodes
- FSM-60S - WPM-08 - Wind Protector Mirror
| Model | FSM-60S |
|---|
? Multi Mode and Single Mode
? Suitable for use with SM (ITU-T G.652), DS (ITU-T G.653), NZDS (ITU-T G.655) and MM (ITU-T G.651) fibres and other single mode fibers including ITU-T G.657 fibers.
? Core to core alignment by PAS?Profile Alignment System) technology.
? Environmental resistant features.
? Arc calibration-free system.
? 4.1" TFT color LCD monitor.
? Dual directional operation system.
? Long life battery.
? Fiber holder option.
? Software upgrade via Internet.
? Supplied with CT-30A Precision Cleaver
