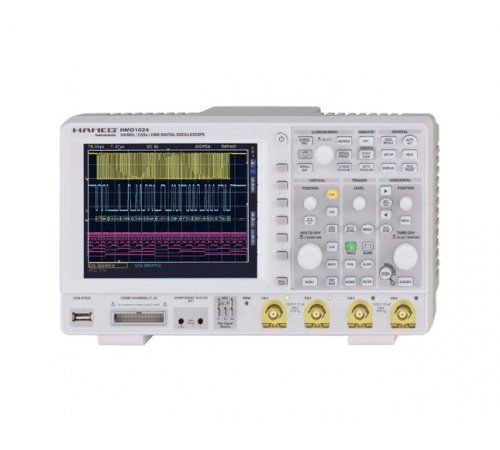

Hameg HMO1024 Digital Oscilloscope
100 MHz Ancho de banda
4 canales analógicos Número de canales
1 GSa/s (en tiempo real) Frecuencia de muestreo
1 MPuntos por canal Longitud de memoria
Pantalla LCD en color de 6,5 pulgadas (WVGA 800 x 480 píxeles) Pantalla
| Atributo | Valor |
|---|---|
| Ancho de banda | 100 MHz |
| Número de canales | 4 canales analógicos |
| Frecuencia de muestreo | 1 GSa/s (en tiempo real) |
| Longitud de memoria | 1 MPuntos por canal |
| Pantalla | Pantalla LCD en color de 6,5 pulgadas (WVGA 800 x 480 píxeles) |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Base de tiempos | 1 ns/div a 50 s/div |
| Canales lógicos digitales | 16 canales digitales (MSO opcional) |
| Interfaces de comunicación | USB (dispositivo y host), interfaz Ethernet (LAN) |
| Frecuencia de actualización de la pantalla | Hasta 1.000.000 de formas de onda por segundo (modo HiSLIP) |
Hameg HMO1024 Digital Oscilloscope Options:
- HMO1024 - HOO10 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Logic Channels and Analog Channels
- HMO1024 - HOO11 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Analog Channels
- HMO1024 - HOO12 - Serial bus trigger and hardware accelerated decode, CAN, LIN on Logic Channels and Analog Channels
- HMO1024 - HO3508 - Active 8 Channel Logic Probe (MSO option)
- HMO1024 - HO730 - Dual-Interface Ethernet/USB
- HMO1024 - HO740 - Interface IEEE-488 (GPIB) galvanically isolated
- HMO1024 - HZO91 - 4RU 19" Rackmount Kit
- HMO1024 - HZO90 - Carrying Case for protection and transport
- HMO1024 - HZO20 - High voltage probe 1,000:1 (400MHz, 1,000Vrms)
- HMO1024 - HZO30 - Active probe 1GHz (0.9pF, 1MΩ, including many accessories)
- HMO1024 - HZO40 - Active differential Probe 200MHz (10:1, 3.5pF, 1MΩ)
- HMO1024 - HZO41 - Active differential Probe 800MHz (10:1, 1pF, 200kΩ)
- HMO1024 - HZO50 - AC/DC Current probe 30A, DC…100kHz
- HMO1024 - HZO51 - AC/DC Current probe 100/1,000A, DC…20kHz
| Model | HMO1024 |
|---|
The Hameg HMO1024 100MHz 4-channel digital oscilloscope has a bandwidth of 100MHz and 2MPts memory depth. It is the only scope of this performance class on the market reading analog and digital signals simultaneously. With extensive features, great power and high connectivity, it is an ideal tool for training, development and service.
Key Features
- High accuracy due to low-noise flash A/D converter
- Vertical sensitivity down to 1 mV/div
- MSO functionality included, only HO3508 probe needed
- Serial bus trigger and hardware accelerated decode: I2C, SPI, UART/RS-232, CAN, LIN
- Component tester and a hardware 6-digit counter
- Intelligent user interface:
- 28 Auto-Measurement parameters plus statistics and formula editor
- Automatic search for user-defined events
