Hameg

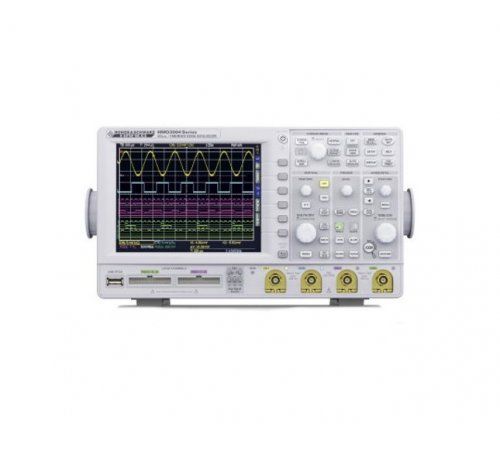

Hameg HMO3042 Digital Oscilloscope
300 MHz Ancho de banda
2 canales analógicos Número de canales
2 GSa/s (en tiempo real) Frecuencia de muestreo
2 MPuntos por canal Profundidad de memoria
6,9 pulgadas (175 mm), pantalla VGA a color Tamaño de pantalla
| Atributo | Valor |
|---|---|
| Ancho de banda | 300 MHz |
| Número de canales | 2 canales analógicos |
| Frecuencia de muestreo | 2 GSa/s (en tiempo real) |
| Profundidad de memoria | 2 MPuntos por canal |
| Tamaño de pantalla | 6,9 pulgadas (175 mm), pantalla VGA a color |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div – 10 V/div |
| Base de tiempos | 1 ns/div – 50 s/div |
| Canales lógicos digitales | 16 canales digitales (opción MSO) |
| Interfaz de comunicación | USB, Ethernet (LAN), interfaz de impresora |
Hameg HMO3042 Digital Oscilloscope Options:
- HMO3042 - HOO10 - Analysis of I²C, SPI and UART/RS-232 signals on analog and logic channels
- HMO3042 - HOO11 - Analysis of I²C, SPI and UART/RS-232 signals on all analog channels
- HMO3042 - HOO12 - Analysis of CAN and LIN signals on analog and logic channels
- HMO3042 - HOO14 - Segmented Memory (acquisition memory divided into up to 1000 segments, 200,000 Wfm/s)
- HMO3042 - HV452 - Bandwidth upgrade from 400MHz to 500MHz (2 channel)
- HMO3042 - HV114 - Upgrade voucher for Segmented Memory option HOO14
- HMO3042 - HO720 - USB-Device/RS-232 dual interface card
- HMO3042 - HO740 - IEEE-488 (GPIB) interface card, galvanically isolated
- HMO3042 - HO3508 - Logic probe with 8 channels (required for MSO functionality)
- HMO3042 - HO3516 - Logic probe double pack with 16 channels (required for MSO functionality)
| Model | HMO3042 |
|---|
The HMO3042 400 MHz 2 channel oscilloscope offers excellent performance at an attractive price. The standard MSO functionality allows you to analyse along all channels plus up to an additional 16 digital channels. Offers hardware-accelerated signal triggering and decoding for all protcols.
Key Features
- 4 Gsample/s realtime sampling rate, low-noise flash A/D converter
- 8 Mpoint memory, zoom up to 200 000:1
- Automatically or manually adjustable memory depth
- Segmented memory option (HOO14)
- MSO functionality included as standard (HO3508/HO3516 logic probe with 8/16 logic channels required)
- Vertical sensitivity down to 1 mV/div
- Trigger modes: slope (A/B), pulse width, video, logic, serial buses (optional), hold-off
- Serial bus trigger and hardware-accelerated decode including list view options: I2C + SPI + UART/RS-232 (HOO10/HOO11), CAN + LIN (HOO12)
