Hameg

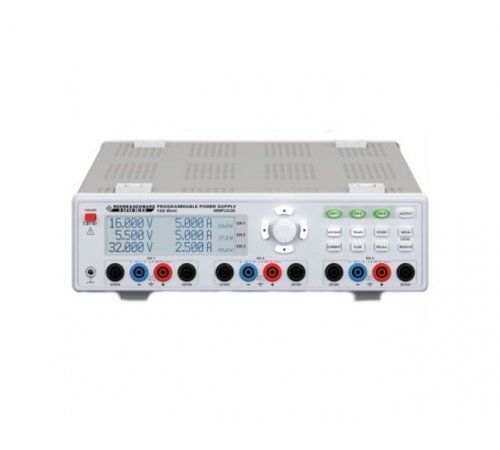

Hameg HMP2020 Programmable 2 Channel Power Supply
2 canales Número de canales
0 - 32 V por canal Tensión de salida máxima
0 - 5 A por canal Corriente de salida máxima
188 W Potencia total máxima
USB e interfaz RS-232 integradas Interfaz de programación
| Atributo | Valor |
|---|---|
| Número de canales | 2 canales |
| Tensión de salida máxima | 0 - 32 V por canal |
| Corriente de salida máxima | 0 - 5 A por canal |
| Potencia total máxima | 188 W |
| Interfaz de programación | USB e interfaz RS-232 integradas |
| Pantalla | Pantalla LCD retroiluminada de alta resolución |
| Resolución de tensión | 1 mV |
| Resolución de corriente | 1 mA |
| Modos de operación | Regulación de tensión constante (CV) y corriente constante (CC) |
| Tensión de alimentación | 115 / 230 V AC, 50/60 Hz |
Hameg HMP2020 Programmable 2 Channel Power Supply Options:
- HMP2020 - HO730 - Dual-Interface Ethernet/USB
- HMP2020 - HO740 - Interface IEEE-488 (GPIB), galvanically isolated
| Model | HMP2020 |
|---|
Hameg HMP2020 programmable 2 channel high-performance power supply with an operating performance of 188 watt. Output power is displayed in real time and safety shutdown is also available.
In the parallel operation mode channels can be bundled to achieve higher currents and the integration power management function also ensures intelligent power distribution over each channel in this operation mode. Also the V/I tracking function is also available in this mode.
It is compact, easy-to use and has a great price-performance ratio.
Key Features
- 1x0?32V/0?10A 1x0?5.5V/0?5A, 188W max
- 188W output power realized by intelligent power management
- Low residual ripple: ?150?Vrms due to linear post regulators
- High setting- and read-back resolution of 1mV/0.1mA
- Galvanically isolated, earth-free and short circuit protected output channels
