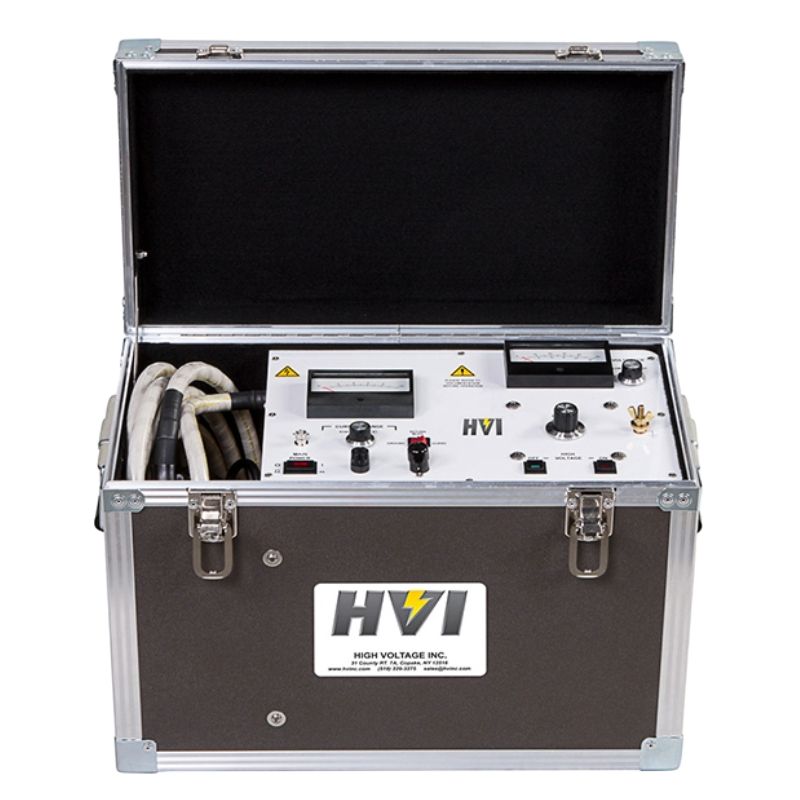

HIGH VOLTAGE INC PFT-503CM AC HiPot Test Set
The High Voltage Inc. PFT-503CM AC HiPot Test Set is designed for conducting AC over-voltage withstand tests on high voltage apparatus such as switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, and more. This versatile device offers continuously adjustable AC voltage for pass/fail testing. With a gapped core transformer design, it provides up to 3 kVA of output power while drawing only 1.5 kVA, making it compatible with standard 120Vac or 230Vac inputs.
The PFT-503CM comes equipped with a two-range voltmeter, three-range cur meter, and a guard circuit for precise leakage cur measurements, the PFT-503CM ensures accurate testing. It features a convenient one-piece, field portable design with protective features like transit-protected meters, overload settings, and an external safety interlock. The PFT-503CM is a highly portable and easy-to-use solution for AC high voltage dielectric testing, offering output in the range of 0-50 kV AC with various load capacities.
Specifications for the HIGH VOLTAGE INC PFT-503CM AC HiPot Test Set Include:
| Output Range | 0 - 50 kV AC, 1 kVA resistive load |
| Voltmeter | 3.5 ", scaled 0-25/50 kV AC, ±2% F.S. |
| Cur Meter | 3.5 ", scaled 0-1 mA, ±2% F.S. with range multipliers of x1, x10, x100 |
| Distortion | Less than 5% |
