Hipotronics H815PL-A
| Atributo | Valor |
|---|---|
| Voltaje de salida máximo | 15 kV |
| Corriente de salida máxima | 5 mA |
| Potencia máxima | 75 VA |
| Tipo de prueba | Prueba de hipot (alta tensión en corriente continua) |
| Tensión de alimentación | 115/230 V CA, 50/60 Hz |
| Tipo de salida | Corriente continua (DC) |
| Rango de detección de fallos | 0 a 5 mA ajustable |
| Indicación de medición | Medidor analógico de corriente de fuga |
| Función de seguridad | Interruptor de parada de emergencia y circuito de retorno a tierra |
| Diseño del equipo | Unidad portátil de sobremesa con panel frontal de control |
Hipotronics H815PL-A Options:
- H815PL-A - 815PL-A - 15 kV, 5 mA DC Hipot, 120 V 50/60 Hz input
- H815PL-A - 815PL-B - 15 kV, 5 mA DC Hipot, 230 V 50/60 Hz input
- H815PL-A - SPK1-815PL - Spare Parts Kit for 815PL
| Model | H815PL-A |
|---|

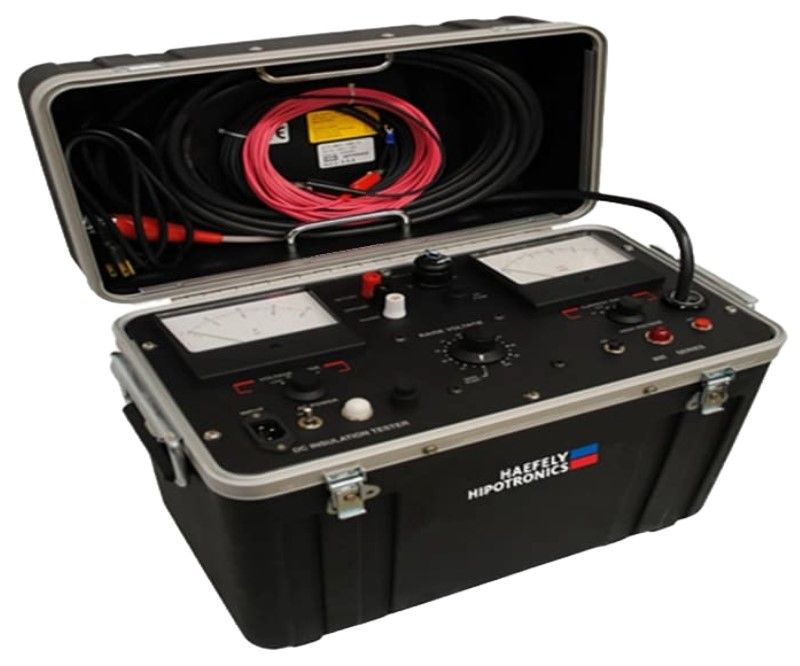

Hipotronics H815PL-A DC Hipot Tester
The Hipotronics H815PL-A DC Hipot Tester is an economical solution to DC field testing of cables, terminations, motors, generators and other electrical apparatus. The Hipotronics H815PL-A and is self-contained in a single, rugged and durable enclosure, which is complete from input line cord to high voltage output cable. Cable storage space is conveniently located inside. Hipotronics H815PL-A DC Hipot Tester is compact and lightweight in design which makes it suitable for field orientated applications.
The Hipotronics H815PL-A DC Hipot Tester features accurate kV meter readings regardless of load current. Accurate voltage and cur measurements are assured via voltage readings that are taken directly at the output of the high voltage transformer and cur measurements are taken in the return leg. Safe discharging of both the test object and the high voltage transformer occur whenever the high voltage is turned off. Output power is provided by means of a full-wave voltage doubling rectifier circuit with silicon rectifiers.
Specifications for the Hipotronics H815PL-A DC Hipot Tester Include:
| Output Voltage | 0 -15 kV |
| Output Current | 5 mA |
| Metering Accuracy | ±2% of full scale |
| Ripple | 0.5% per mA with rated resistance |
