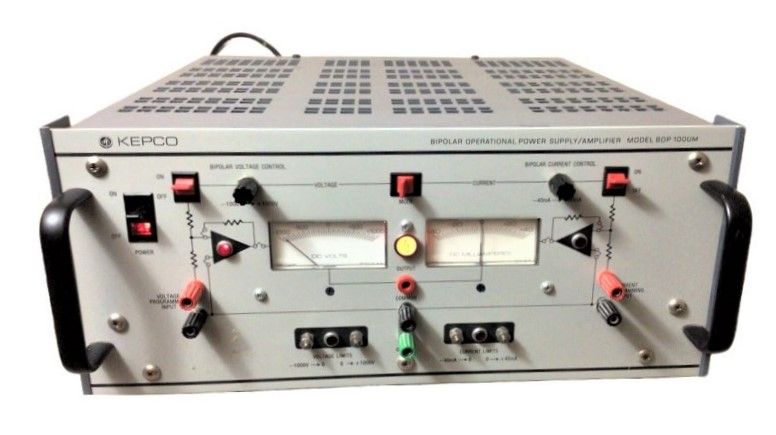

Kepco BOP1000M
| Atributo | Valor |
|---|---|
| Tensión de salida máxima | ±1000 V |
| Corriente de salida máxima | ±0,5 A |
| Potencia máxima | 500 W |
| Modo de operación | Dos y cuatro cuadrantes (fuente y carga) |
| Regulación de línea (tensión) | 0,01% de la salida máxima |
| Regulación de carga (tensión) | 0,01% de la salida máxima |
| Interfaz de programación | Analógica (0 a ±10 V) y GPIB/IEEE-488 (opcional) |
| Ancho de banda | Hasta 10 kHz (pequeña señal) |
| Tensión de alimentación | 115/230 V CA, 50/60 Hz |
| Factor de forma | Montaje en rack 19", 3U |
Kepco BOP1000M Options:
- BOP1000M - DM - Digital meter (substitute suffix "DM" for "M")
- BOP1000M - -4886 - Optional digital control via GPIB or RS 232 (add suffix -4886)
| Model | BOP1000M |
|---|
The Kepco Model BOP 500M and BOP 1000M are high voltage power sources, up to ±500V or ±1000V, respectively. These combine the capabilities of fast programmable power supplies with a Class A output stage, which can respond bi-directionally from zero. The BOP-HV can be operated in either a €œvoltage stabilizing " or €œcur stabilizing " operating mode (selectable by a front panel switch).
The term bipolar means that the voltage and cur outputs can be made to vary smoothly and linearly through their entire plus and minus rated ranges, passing through zero with no polarity switching.can source or sink up to 100% of their cur rating at any voltage setting, depending on the duty cycle. The separate bipolar voltage and cur control channels are backed by four independently adjustable (and programmable) limits. Four front panel LEDs tell you whether the unit is operating in the voltage or cur mode, or against the voltage limit or cur limit. A mode switch on the front panel selects the operating channel.
Features of the Kepco BOP1000M Power Supply include:
- 40 watts, linear 4-quadrant operation
- FET output stage preamplifiers for summing and scaling arbitrary input signals.
- Wide bandwidth.
- Voltage and cur stabilization with automatic crossover to cur and voltage limits.
- Output Range:
- ±1000V
- ±40mA
