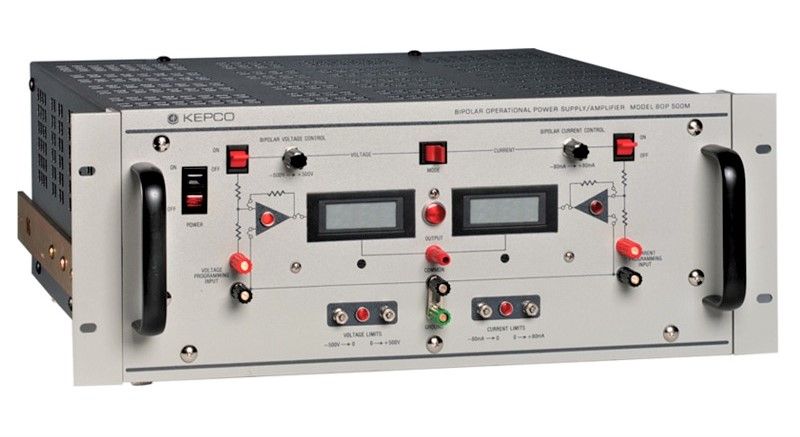

Kepco BOP500M
| Atributo | Valor |
|---|---|
| Tensión de salida | ±500 V |
| Corriente de salida | ±200 mA |
| Potencia máxima | 100 W |
| Modo de operación | Fuente de alimentación de dos cuadrantes (tensión y corriente) |
| Interfaz de programación | GPIB, RS-232 |
| Regulación de línea | 0,01% de la salida máxima |
| Regulación de carga | 0,01% de la salida máxima |
| Rizado y ruido | Menos de 15 mV RMS (tensión), menos de 3 mA RMS (corriente) |
| Tensión de alimentación | 105–125 V CA / 210–250 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 425 mm x 133 mm x 597 mm (formato rack 3U) |
Kepco BOP500M Options:
- BOP500M - DM - Digital meter display (substitute suffix "DM" for "M")
- BOP500M - -4886 - Optional digital control via GPIB or RS 232 (add suffix -4886)
| Model | BOP500M |
|---|
KEPCO BOP500M
The Kepco Model BOP 500M and BOP 1000M are high voltage power sources, up to ±500V or ±1000V, respectively. These combine the capabilities of fast programmable power supplies with a Class A output stage, which can respond bi-directionally from zero. The BOP-HV can be operated in either a €œvoltage stabilizing " or €œcur stabilizing " operating mode (selectable by a front panel switch).
The term bipolar means that the voltage and cur outputs can be made to vary smoothly and linearly through their entire plus and minus rated ranges, passing through zero with no polarity switching.can source or sink up to 100% of their cur rating at any voltage setting, depending on the duty cycle. The separate bipolar voltage and cur control channels are backed by four independently adjustable (and programmable) limits. Four front panel LEDs tell you whether the unit is operating in the voltage or cur mode, or against the voltage limit or cur limit. A mode switch on the front panel selects the operating channel.
Features of the Kepco BOP500M Power Supply include:
- 40 watts, linear 4-quadrant operation
- FET output stage preamplifiers for summing and scaling arbitrary input signals.
- Wide bandwidth.
- Voltage and cur stabilization with automatic crossover to cur and voltage limits.
Output Range:
- ±500V
- ±80mA
