Keysight (Agilent)
Keysight (Agilent) 11636A
Power Divider, DC to 18 GHz
DC a 18 GHz Rango de frecuencia
APC-7 (7 mm) Tipo de conector
50 Ohmios Impedancia
Divisor de potencia de dos vías Tipo de divisor de potencia
6 dB (nominal) Pérdida de inserción
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 18 GHz |
| Tipo de conector | APC-7 (7 mm) |
| Impedancia | 50 Ohmios |
| Tipo de divisor de potencia | Divisor de potencia de dos vías |
| Pérdida de inserción | 6 dB (nominal) |
| Aislamiento entre puertos | Mínimo 20 dB |
| Potencia máxima de entrada | 1 W (30 dBm) |
| SWR (Relación de onda estacionaria) | Máximo 1,25 |
| Temperatura de operación | 0 °C a +55 °C |
| Dimensiones aproximadas | 63,5 mm x 38,1 mm x 19,1 mm |
Keysight (Agilent) 11636A Options:
- 11636A - 1250-1743 - Precision 3.5 mm (m) to type-N (m) adapter
- 11636A - 1250-1750 - Precision 3.5 mm (m) to type-N (f) adapter
- 11636A - 1250-1744 - Precision 3.5 mm (f) to type-N (m) adapter
- 11636A - 1250-1745 - Precision 3.5 mm (f) to type-N (f) adapter
- 11636A - 1250-1746 - Precision 3.5 mm (m) to Precision 7 mm adapter
- 11636A - 1250-1747 - Precision 3.5 mm (f) to Precision 7 mm adapter
- 11636A - 85027-60007 - Precision 3.5 mm (m) to Precision 3.5 mm (m) adapter
- 11636A - 85027-60005 - Precision 3.5 mm (f) to Precision 3.5 mm (f) adapter
- 11636A - 85027-60006 - Precision 3.5 mm (m) to Precision 3.5 mm (f) adapter
- 11636A - 11752-60105 - 3.5 mm gage set (f) for periodic gaging of connectors
- 11636A - 11752-60106 - 3.5 mm gage set (m) for periodic gaging of connectors
- 11636A - 8710-1765 - Torque wrench, 5/16", 96 N-cm (8 in-lb) for mating two precision 3.5 mm connectors
- 11636A - 8710-1582 - Torque wrench, open-end, 5/16", 60 N-cm (5 in-lb) for mating a precision 3.5 mm connector to an SMA connector
| Model | 11636A |
|---|

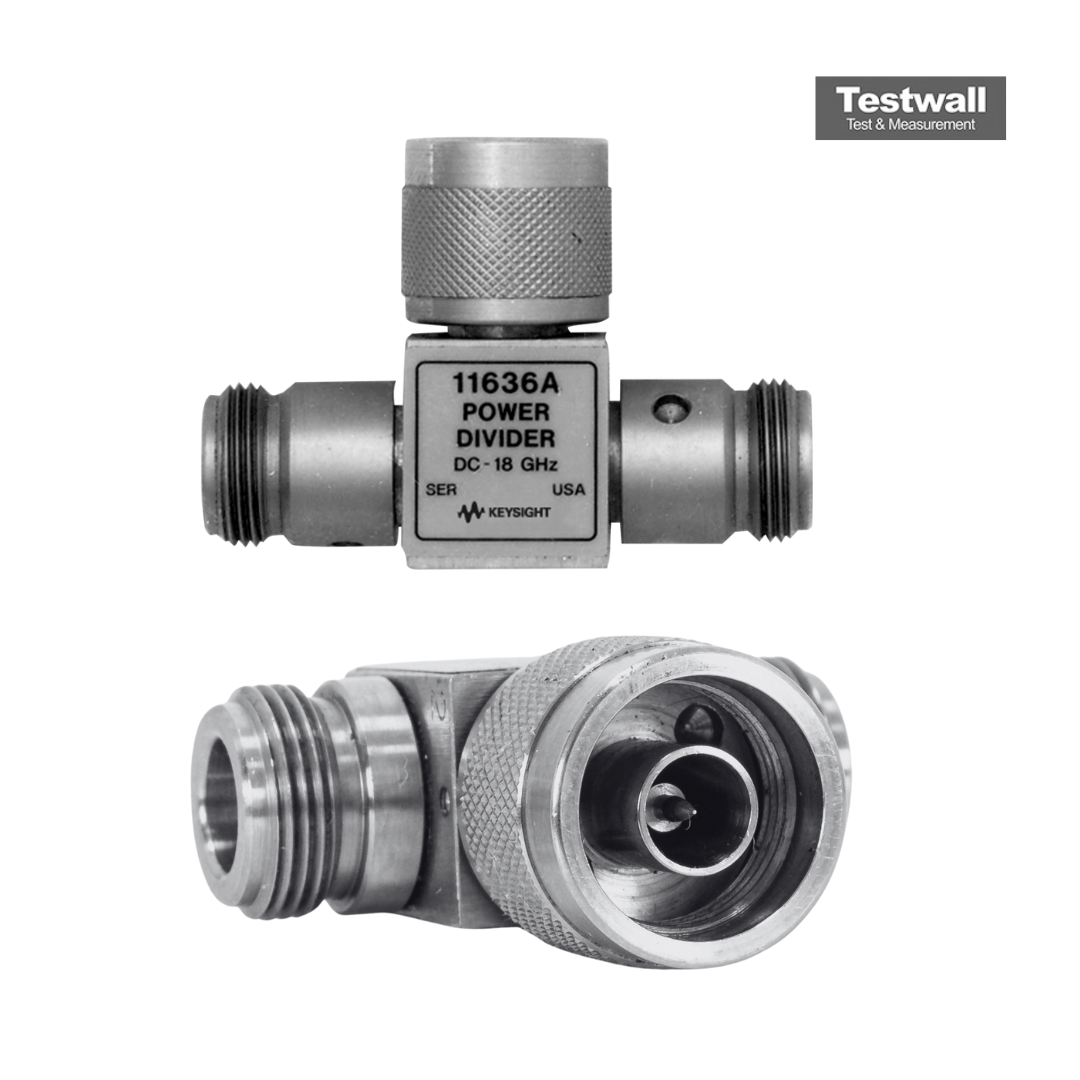

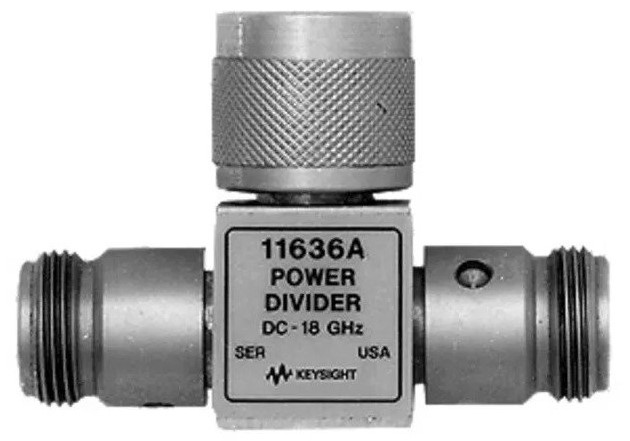

The Agilent 11636A is a dc to 18 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent 11636A power divider/combiner is recommended when making wideband comparison measurements with an Agilent 8757 scalar vector network analyzer.
- Maximum SWR: 1.35
- Insertion loss: 6.0 dB typical
- Maximum amplitude tracking: 0.5 dB
- Maximum phase tracking: 2 deg typical
