Keysight (Agilent)
Keysight (Agilent) 11667L
Power Splitter, DC to 2 GHz
DC a 18 GHz Rango de frecuencia
50 Ohmios Impedancia
SMA (hembra) Tipo de conector
1 W (30 dBm) Potencia máxima de entrada
0,1 dB máximo Pérdida de inserción
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 18 GHz |
| Impedancia | 50 Ohmios |
| Tipo de conector | SMA (hembra) |
| Potencia máxima de entrada | 1 W (30 dBm) |
| Pérdida de inserción | 0,1 dB máximo |
| VSWR | 1,25:1 máximo |
| Tipo de divisor de potencia | Divisor de potencia de dos vías (Power Splitter) |
| División de potencia | 3 dB (división equitativa entre dos puertos) |
| Temperatura de operación | 0 °C a +55 °C |
| Aislamiento entre puertos | 20 dB mínimo |
Keysight (Agilent) 11667L Options:
- 11667A - 001 - Type-N male on the input and type-N female on the output ports
- 11667A - 002 - Type-N female on the input and APC-7 on the output ports
| Model | 11667L |
|---|

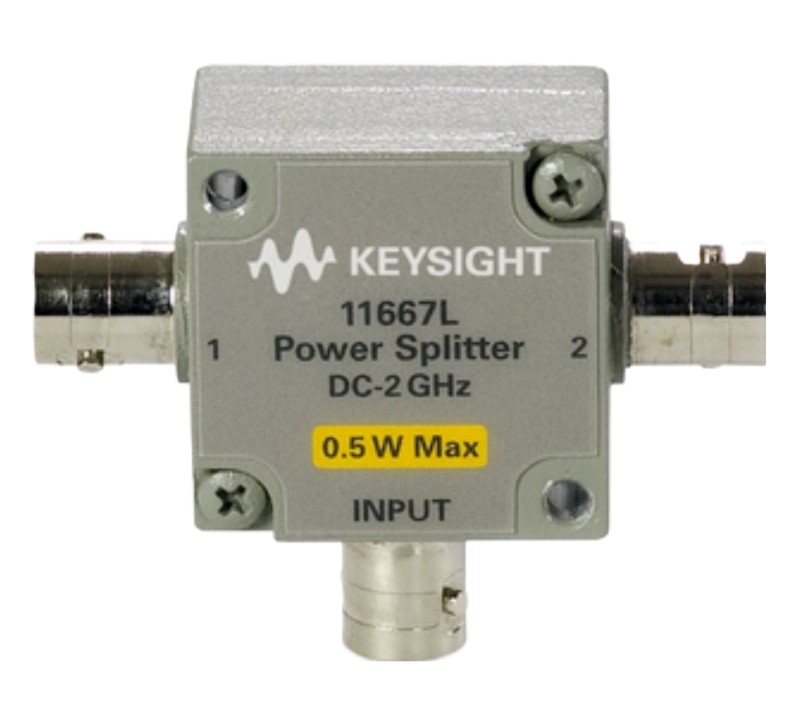

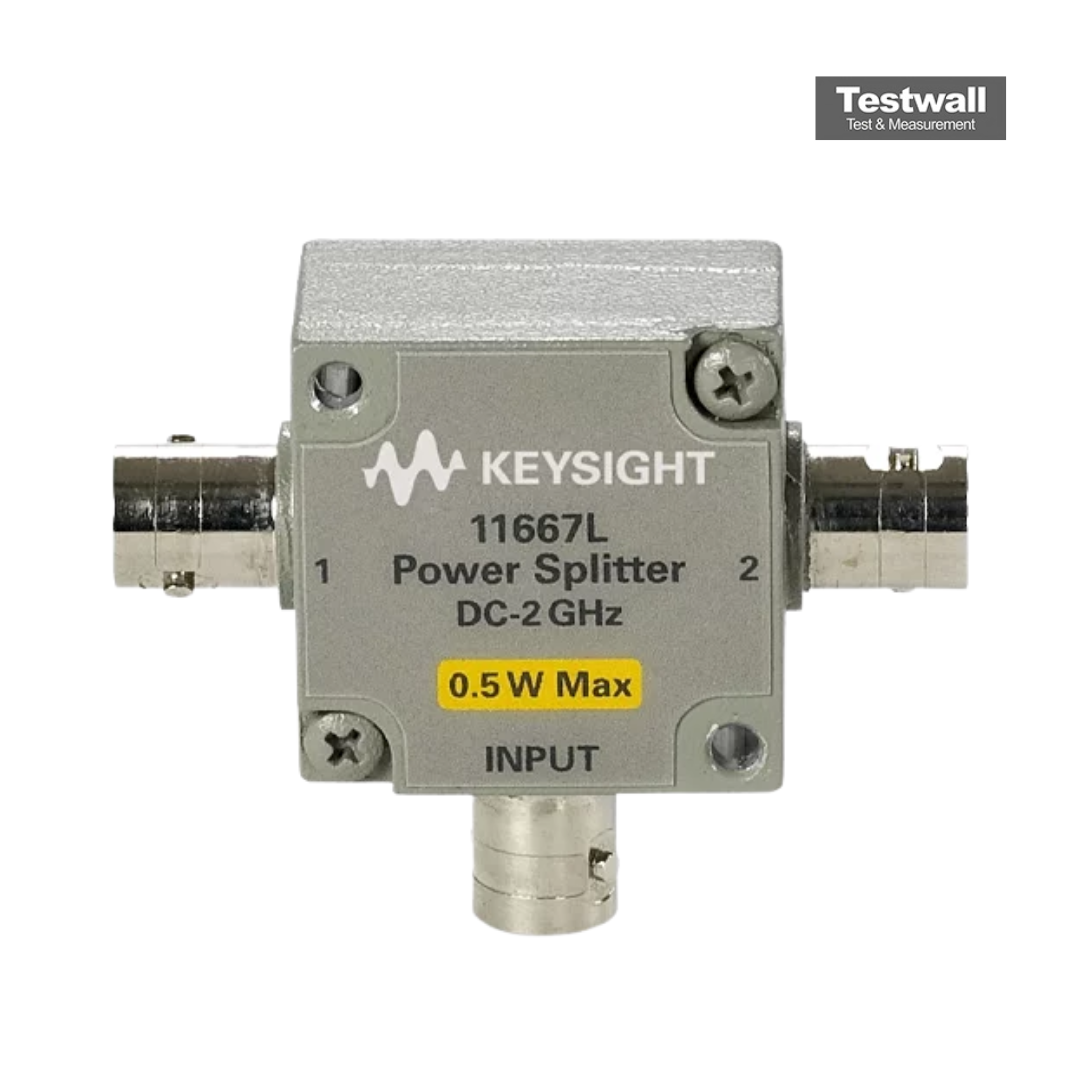

Keysight (Agilent) 11667L Power Splitter
The Keysight 11667L is a 50 ohm two-resistor type power splitter that provides exceptional amplitude and phase tracking for highly accurate power splitting. Offering excellent output power symmetry between the two output ports, the 11667L is recommended for applications that require external source leveling, ratio measurements and for other legacy network/ gain-phase analyzers that do not have built-in power splitters or directional bridges.
Specifications for the Keysight (Agilent) 11667L Power Splitter Include:
| Frequency Range | DC to 2 GHz |
| Connector | BNC (f) all ports |
| Insertion loss (dB) | 6 dB nominal |
| Max input power | +27 dBm |
