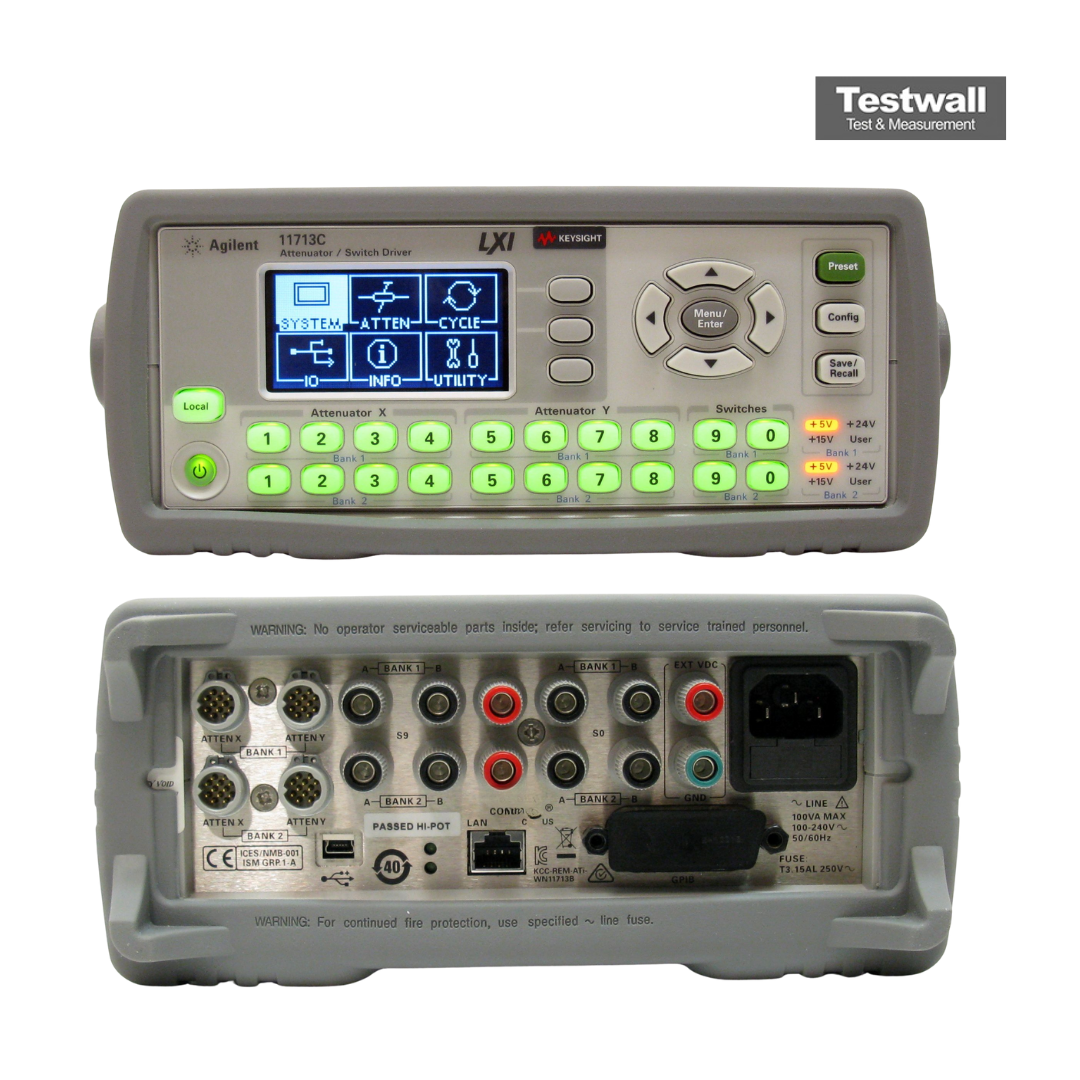

Keysight (Agilent) 11713C
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 26,5 GHz |
| Número de canales de atenuador | 2 canales independientes |
| Voltaje de control de salida | 0 V a +15 V CC |
| Corriente de salida máxima | 100 mA por canal |
| Interfaz de control | GPIB (IEEE-488), USB, LAN (LXI) |
| Compatibilidad con atenuadores | Compatible con atenuadores de paso Keysight series 8494, 8495, 8496 y 84904/05/06 |
| Alimentación eléctrica | 100/120/220/240 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 212,6 mm x 88,1 mm x 348,3 mm (media unidad de rack) |
| Peso | Aproximadamente 2,5 kg |
| Temperatura de funcionamiento | 0 °C a 55 °C |
Keysight (Agilent) 11713C Options:
- 11713C - 001 - Viking connector to 10-pin DIP connector
- 11713C - 101 - Viking connector to viking connector
- 11713C - 201 - Viking connector to 12-pin conductor cable, bare wire
- 11713C - 301 - Viking connector to (4) ribbon cables
- 11713C - 401 - Dual-viking connector to 16-pin DIP connector
- 11713C - 501 - Viking connector to (4) 9-pin Dsub connectors
- 11713C - 601 - Viking connector to 16-pin DIP connector
- 11713C - 701 - Viking connector to 14-pin DIP connector
- 11713C - 801 - Viking connector to (4) 10-pin DIP connectors
- 11713C - 908 - Rack mount kit for one instrument
- 11713C - 909 - Rack mount kit for two instruments
| Model | 11713C |
|---|

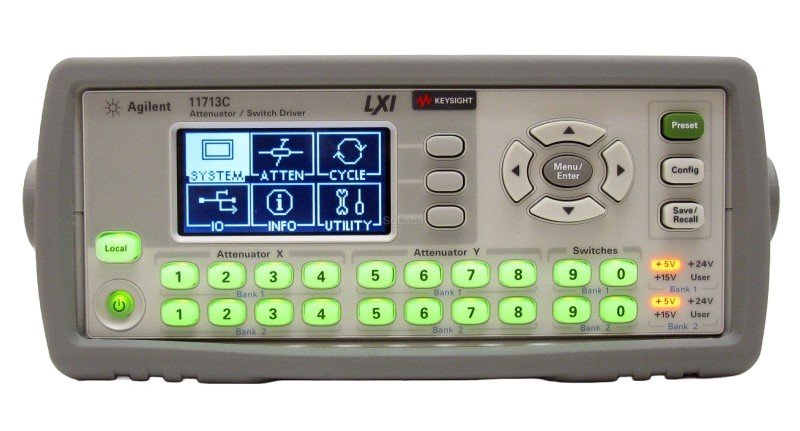

Keysight (Agilent) 11713C LXI-Compliant Attenuator/Switch Driver
The Keysight LXI-compliant 11713C attenuator / switch driver provides remote or front-panel drive control for four programmable attenuators and four SPDT switches. The Keysight 11713C can also be used to independently control up to 20 switches. Designed for both benchtop and ATE environments, this flexible, stand-alone driver provides an intuitive user interface, a variety of switching options, software programmability, and remote control features for quick, easy design validation and automated testing.
An integrated power supply eliminates the need for an external power source. Each Keysight 11713C is offered with nine optional plug-in drive cables to provide point-to-point connection to Keysight programmable attenuators and switches. The driver response time is less than 10 microseconds. Front panel push-buttons and an easy-to-read LCD display simplify the setup of functions such as voltage, TTL functions, IP address, etc. Powerful software programming and a choice of GPIB, USB, and LAN connectivity and software instrument drivers provide instrument and programming compatibility.
Specifications for the Keysight (Agilent) 11713C LXI-Compliant Attenuator/Switch Driver Include:
| Drives up to: | 20 SPDT switches |
| Voltage | 5, 15, & 24 V |
| Votage drive | 2 independent banks of outputs |
| Switch types | Any attenuator or switch |
