Keysight (Agilent)

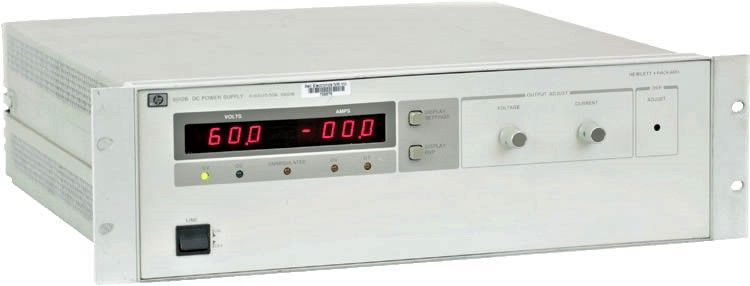

Keysight (Agilent) 6012B
Power Supply, 60V, 50A, 1200W
60 V Tensión de salida máxima
50 A Corriente de salida máxima
1000 W Potencia máxima de salida
≤ 5 mV Regulación de tensión en línea
≤ 15 mA Regulación de corriente en línea
| Atributo | Valor |
|---|---|
| Tensión de salida máxima | 60 V |
| Corriente de salida máxima | 50 A |
| Potencia máxima de salida | 1000 W |
| Regulación de tensión en línea | ≤ 5 mV |
| Regulación de corriente en línea | ≤ 15 mA |
| Rizado y ruido (tensión) | ≤ 3 mV rms |
| Tensión de alimentación de entrada | 115/230 V CA, 47-63 Hz |
| Interfaz de programación | GPIB (IEEE-488) |
| Dimensiones (An x Al x Pr) | 425 mm x 133 mm x 597 mm |
| Peso | 39 kg |
Keysight (Agilent) 6012B Options:
- 6012B - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6012B - Opt 220 - 191 to 233 Vac, 48 to 63 Hz
- 6012B - Opt 240 - 209 to 250 Vac, 48 to 63 Hz
- 6012B - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6012B - Opt 909 - Rack-mount Kit with Handles (p/n 5062-3983)
- 6012B - Opt 0L1 - Full documentation on CD-ROM, and printed standard documentation package
- 6012B - Opt 0L2 - Extra copy of standard printed documentation package
- 6012B - Opt 0B0 - Full documentation on CD-ROM only
- 6012B - Opt J01 - Stabilization for loads up to 10 Henries
| Model | 6012B |
|---|
AGILENT 6012B
Agilent 6012B is part of the 601x series of autoranging power supplies which provide maximum power over a wide range of voltage and cur combinations without having to manually select the proper output range.
Features and specifications of the HP 6012B include:
- Voltage: 0 to 60 Vdc
- Current: 0 to 50 A
- Ripple & noise (voltage/rms peak-peak/cur rms): 8 mV/50 mV/120 mA
- Load regulation: 0.01% +5 mV; 0.01% +15 mA
- Autoranging outputs provide maximum power at a variety of operating points
- Overvoltage features protect DUTs quickly and automatically
- Auto-parallel or auto-series connections enable greater output flexibility
- Ten-turn pots for precise local control
