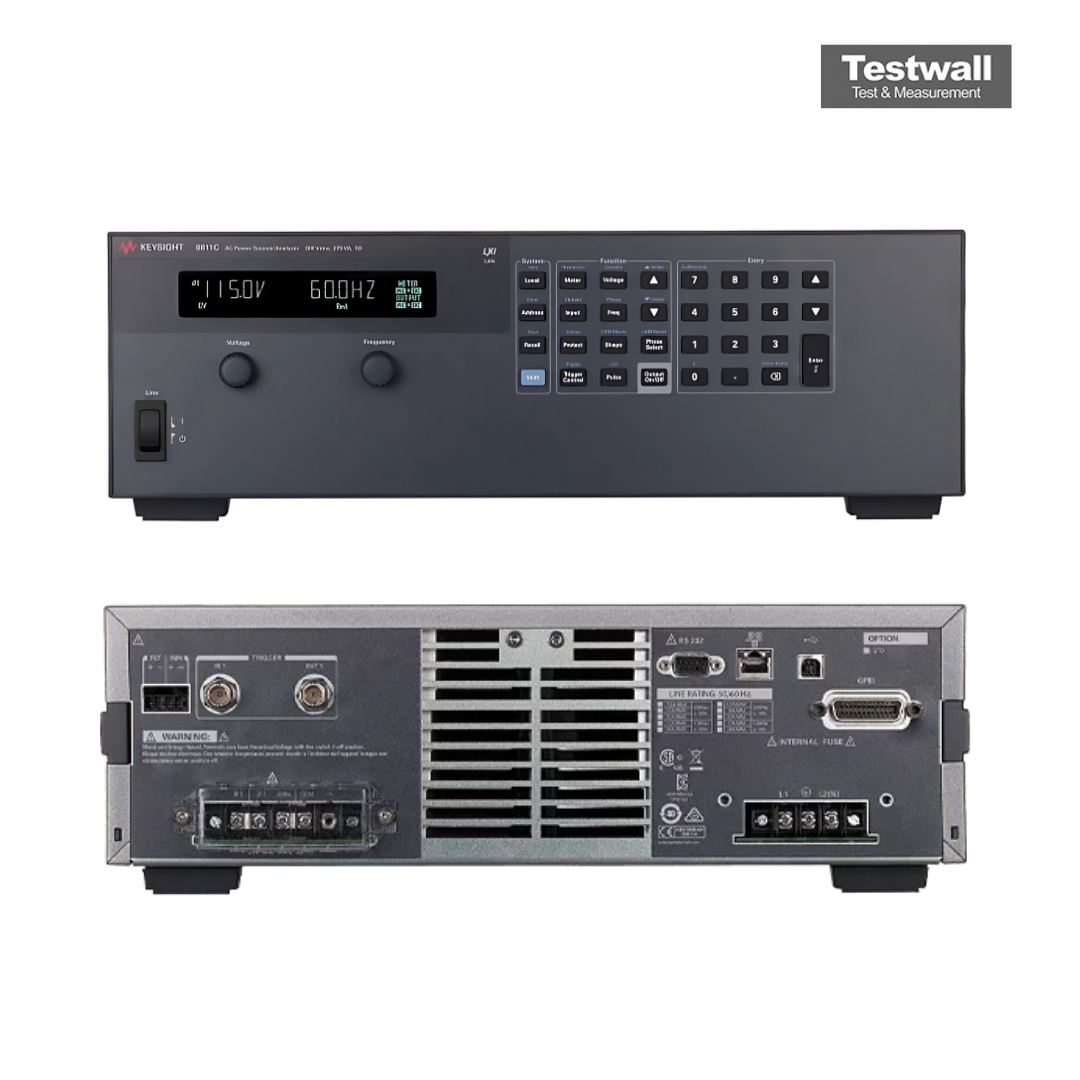

Keysight (Agilent) 6811C
| Atributo | Valor |
|---|---|
| Tensión de salida máxima | 300 V CA |
| Corriente de salida máxima | 3,5 A RMS |
| Potencia aparente máxima | 375 VA |
| Rango de frecuencia | 45 Hz – 1000 Hz |
| Distorsión armónica total (THD) | 0,25% (típico) |
| Resolución de tensión | 0,01 V |
| Resolución de frecuencia | 0,001 Hz |
| Interfaz de comunicación | GPIB, RS-232 |
| Tensión de entrada (alimentación) | 104 – 127 V CA / 208 – 240 V CA, 50/60 Hz |
| Dimensiones (An x Al x P) | 425 mm x 133 mm x 520 mm (3U) |
Keysight (Agilent) 6811C Options:
- 6811C - 020 - Dual Power Analyzer Option
- 6811C - 100 - 87 to 106 VAC (100 VAC nominal), 47-63 Hz, Japan only
- 6811C - 120 - 104-127 VAC (120 VAC nominal), 47-63 Hz
- 6811C - 208 - 174 to 220 VAC (208 VAC nominal), 47-63 Hz
- 6811C - 230 - 191 to 254 VAC (230 VAC nominal), 24-63 Hz
| Model | 6811C |
|---|

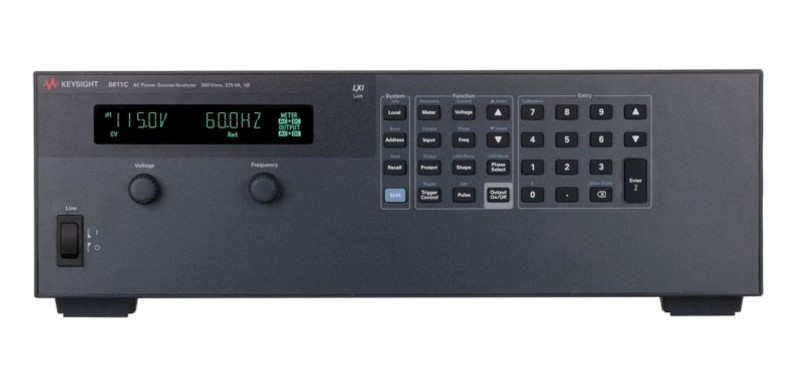

Keysight (Agilent) 6811C Performance AC Power Source
Keysight Technologies 6811C AC power source/analyzers provide a complete AC test solution. As AC sources, they combine the capabilities of a power amplifier and an arbitrary waveform generator. This allows you to simulate normal waveforms and many types of distorted power waveforms. The built in power analyzer combines the capabilities of a multimeter, oscilloscope, harmonic analyzer and power analyzer. These instruments may also be used to produce DC power, either alone or as a DC offset to an AC waveform. There are many standard preprogrammed waveforms, or you can use the transient generation system to simulate sophisticated and repeatable AC line disturbances. DC power can also be generated, either as a DC offset or as a pure DC signal.
The powerful built-in power analyzer in Keysight 6811C AC power source/analyzers provides everything that you need to make AC measurements at the AC input to your DUT. Option 020 provides an additional power analyzer, complete with a precision cur shunt. This second analyzer can even be used for tests where the AC power source/analyzer is not providing power, thus expanding the usefulness of this instrument to many more test configurations. In addition to overcurrent, overvoltage, overpower and overtemperature protection, the 6811C offers output disconnect relays and remote inhibit capability (quickly disabling the output of the AC power source/analyzers via a TTL signal) to protect the device under test.
Specifications for the Keysight (Agilent) 6811C Performance AC Power Source Include:
| Voltage | 300V |
| Current | 3.25A |
| Total Power | 375VA |
| Frequency Range | DC; 45 Hz to 1 kHz |
