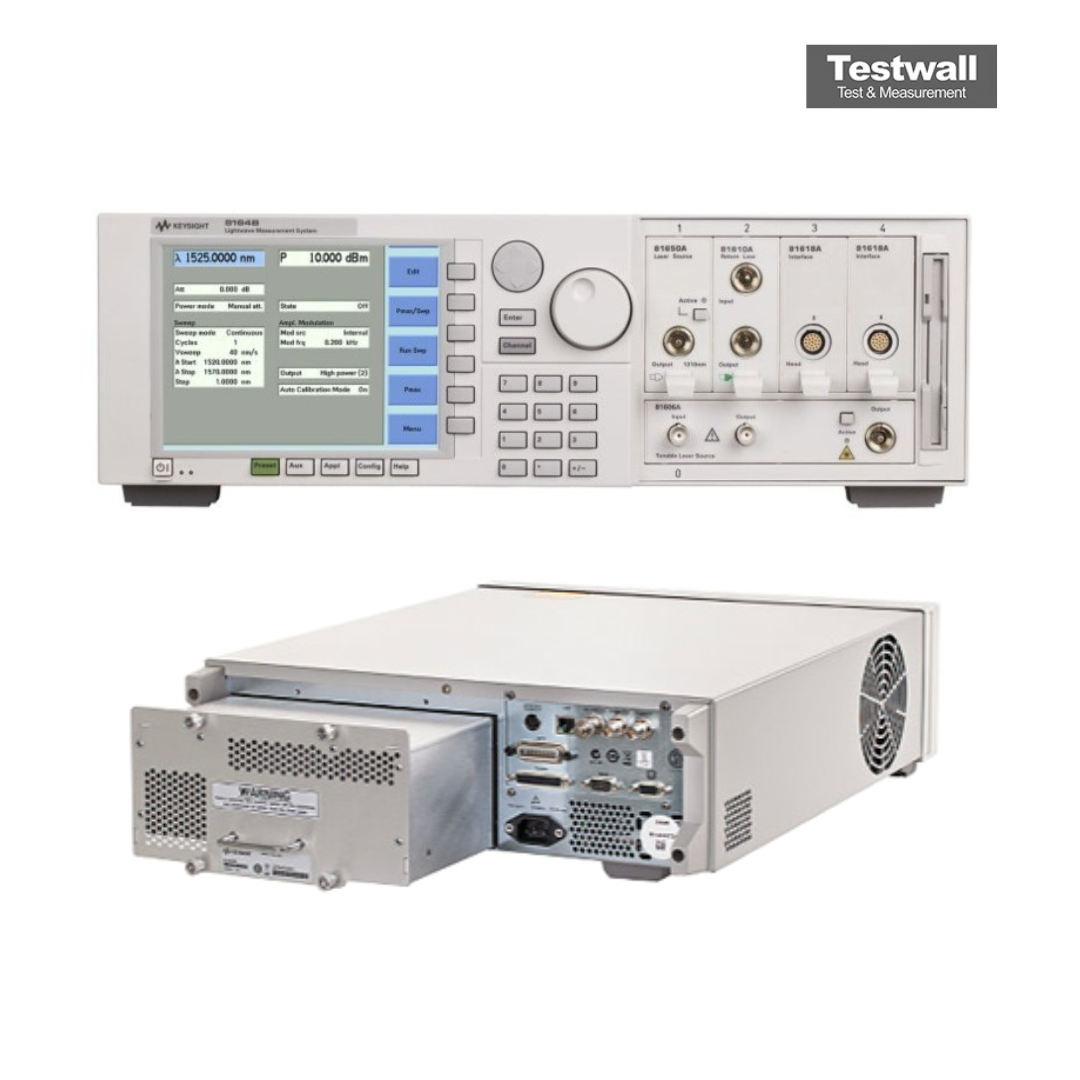

Keysight (Agilent) 81606A
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1270 nm – 1650 nm |
| Potencia de salida máxima | +13 dBm |
| Anchura de línea | < 100 kHz |
| Resolución de ajuste de longitud de onda | 0,1 pm |
| Exactitud de longitud de onda | ±3 pm |
| Estabilidad de potencia | ±0,005 dB (durante 1 hora) |
| Relación de extinción de polarización (PER) | > 25 dB |
| Tipo de conector de fibra | FC/APC |
| Interfaz de comunicación | GPIB / USB / LAN |
| Factor de forma | Módulo para chasis Keysight serie 8164/8166 |
Keysight (Agilent) 81606A Options:
- 81606A - 216 - Tunable laser source 1450 nm to 1650 nm, top-line, high power with lowest SSE
- 81606A - 116 - Tunable laser source 1490 nm to 1640 nm, top-line, high power with lowest SSE
- 81606A - 113 - Tunable laser source 1240 nm to 1380 nm, top-line, high power with lowest SSE
| Model | 81606A |
|---|

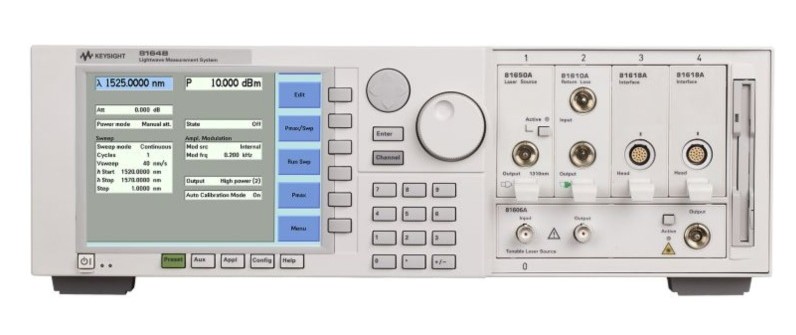

KEYSIGHT 81606A
The Keysight 81606A Tunable Laser Source is the top line module for the . It has been designed to reach a new accuracy level and to increase test efficiency by enabling faster swept-wavelength tests with lower cost of ownership. This accelerates the automated adjustment of wavelength-selective devices with sub-picometer repeatability, best-in-class accuracy and the new two-way sweep mode at up to 200 nm/s speed. The 81606A Tunable Laser Source helps optical component developers, designers and manufacturers test more devices per hour and improves test margins with significantly enhanced functionality over the , the industry standard for more than a decade.
Features and specifications of the Keysight 81606A Tunable Laser includes:
- 15 dB more dynamic range through high signal power at lowest spontaneous emission, enabled by the new cavity and laser module design,
- A 4-fold improvement in absolute accuracy with increased real-time tracking speed and resolution, enabled by the novel wavelength reference unit,
- Sweeps at up to 200 nm/s without impacting the specified dynamic accuracy, enabled by enhanced feedback controls and drive mechanics.
- Wavelength: 1240-1380 nm or 1450-1650 nm or 1490-1640 nm
- Sweep speeds: up to 200 nm/s, bidirectional
- Max. power: > +12 dBm peak (Options 116, 216) or > +13 dBm peak (Option 113)
- Signal to SSE ratio: ‰¥ 80 dB/nm typical
- Absolute wavelength accuracy: ±1.5 pm typical
