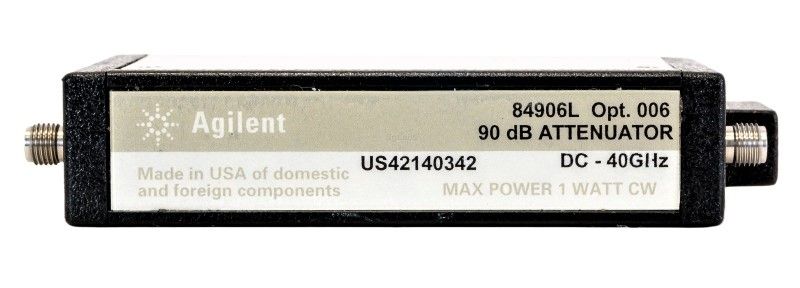

Keysight (Agilent) 84906L
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 26.5 GHz a 40 GHz |
| Atenuación Máxima | 110 dB |
| Paso de Atenuación | 10 dB por paso |
| Tipo de Conector | 2.92 mm (K) |
| Impedancia | 50 Ohmios |
| Potencia Máxima de Entrada | 1 W (30 dBm) |
| Precisión de Atenuación | ±1.0 dB (típico) |
| VSWR Máximo | 1.5:1 |
| Tipo de Dispositivo | Atenuador Programable Paso a Paso |
| Temperatura de Operación | 0 °C a +55 °C |
Keysight (Agilent) 84906L Options:
- 84906L - 011 - 5 V dc supply voltage
- 84906L - 015 - 15 V dc supply voltage
- 84906L - 024 - 24 V dc supply voltage (standard option)
- 84906L - 006 - 2.92 mm female connector, 2.92 mm female connector (UK6 not available with this option)
- 84906L - 100 - 2.4 mm male connector, 2.4 mm female connector
- 84906L - 101 - 2.4 mm female connector, 2.4 mm female connector (standard option)
- 84906L - 106 - 2.92 mm male connector, 2.92 mm female connector (UK6 not available with this option)
- 84906L - UK6 - Calibration data
| Model | 84906L |
|---|
KEYSIGHT 84906L
The Keysight 84906L programmable step attenuator offers coaxial measurements to 40 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life greater than 5 million switching cycles per section) and an attenuation range of 0 to 90 dB in 10-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of saphire substrate. Insertion loss is outstanding, with with only 2.4 dB of loss at 40 GHz. The compact size of the unit, 35% smaller than the Keysight 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.
Fantastic RF Performance
- Frequency range: dc to 40 GHz
- Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
- Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz
Repeatability and Life Span
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
Power Handling
- Maximum RF input power: 1 W (average), 50 W (peak)
Features
- Connector type: choice of 2.4 mm female, 2.4 mm male/female
- Programming connector: 10-pin sockets
