Keysight (Agilent) 86122C
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 600 nm – 1700 nm |
| Precisión de longitud de onda | ±0,1 pm (típico) |
| Resolución de longitud de onda | 0,001 pm |
| Número de puertos de entrada | 2 puertos ópticos |
| Rango de potencia óptica | -90 dBm a +20 dBm |
| Precisión de potencia | ±0,5 dB |
| Capacidad de medición multicanal | Hasta 1000 longitudes de onda simultáneas |
| Interfaz de comunicación | GPIB, USB, LAN (LXI) |
| Tiempo de barrido | Menos de 2 segundos por medición |
| Tipo de conector óptico | FC/APC (adaptadores opcionales disponibles) |
| Model | 86122C |
|---|

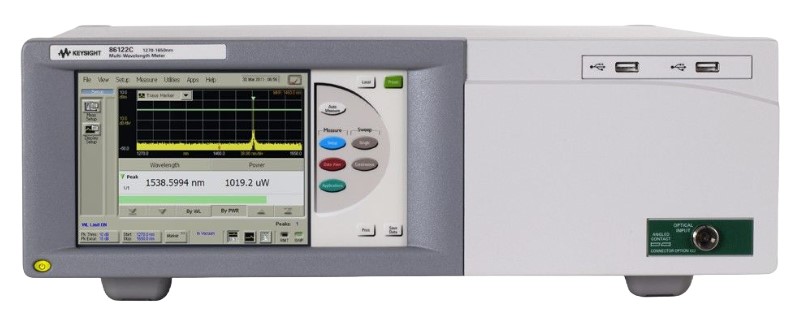

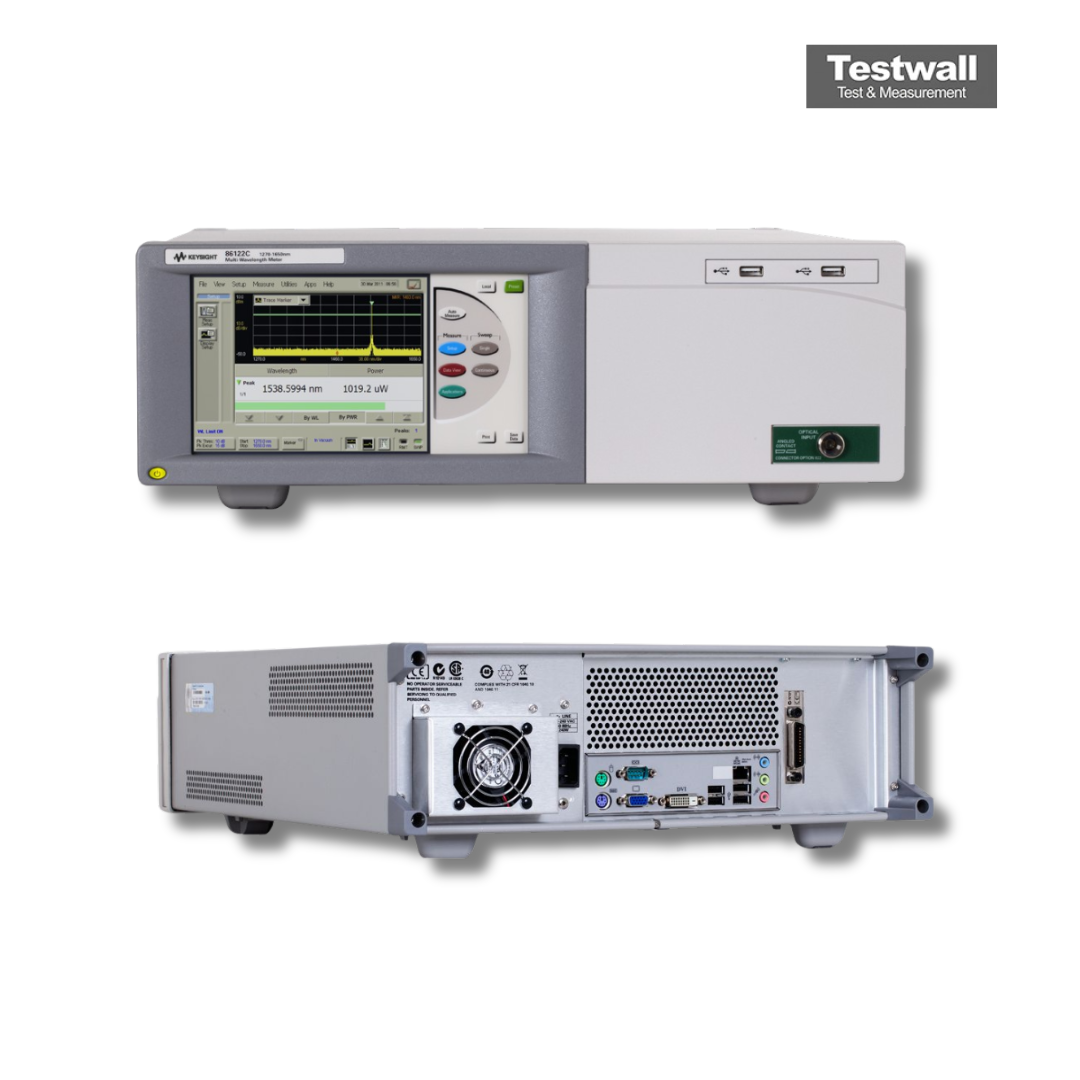

Keysight (Agilent) 86122C Multi-Wavelength Meter
The Keysight (Agilent) 86122C Multi-Wavelength Meter is a sophisticated instrument, designed to accurately measure and characterize multiple wavelengths of light in optical systems. Its wavelength range of 1270 to 1650 nm covers all fiber-to-the-home, metro and long-haul transmission systems. The instrument can measure the spectra of up to 1,000 laser lines at once, which is more than sufficient for fully populated dense-wavelength-division multiplexed systems (DWDM).
Keysight (Agilent) 86122C Multi-Wavelength Meter is capable of simultaneously measuring and displaying multiple wavelengths of light within a wide spectral range. This feature is essential for characterizing optical signals containing multiple wavelengths, such as those used in telecommunications, fiber optics, and laser systems. The built-in applications for optical signal-to-noise ratio, wavelength and power drift allow smart stand-alone test stations, which reduces footprint requirements and costly test procedure development. Keysight (Agilent) 86122C Multi-Wavelength Meter is having built-in HeNe reference laser which guarantees an accurate absolute wavelength measurement real-time determined against the standard anytime and ensures accurate and reproducible experimental results.
Specifications for the Keysight (Agilent) 86122C Multi-Wavelength Meter Include:
| Absolute Wavelength Accuracy | ± 0.2 ppm |
| Best Power Accuracy | ± 0.5 dB |
| Minimum resolvable separation | 5 GHz |
| Maximum Linewidth in Narrowband Mode | 2.5 GHz |
