Keysight (Agilent) B2200A
| Atributo | Valor |
|---|---|
| Número de entradas | 14 entradas de una sola vía |
| Número de salidas | 4 salidas de una sola vía |
| Tensión máxima de conmutación | 200 V |
| Corriente máxima de conmutación | 2 A por canal |
| Resistencia de contacto | 1 Ω máximo |
| Aislamiento entre canales | 10¹⁴ Ω mínimo |
| Interfaz de comunicación | GPIB (IEEE 488.2) y USB |
| Compatibilidad | Compatible con analizadores de parámetros semiconductores Keysight B1500A y B1505A |
| Tipo de relé | Relés de señal de baja resistencia |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
Keysight (Agilent) B2200A Options:
- B2200A - B2210A - fA Leakage Switch Module (12 triaxial ports per module, max 4 modules/48 ports)
- B2200A - 16443A - Light pen for B2200A/B2201A
- B2200A - 16494A - Triaxial cable
- B2200A - 16493K - Kelvin triaxial cable (for input port, between 4155/56 series or E5270 series and B2200/2201A input port)
- B2200A - 16494B - Kelvin triaxial cable (for output port)
- B2200A - 16494F - CMU input cable
- B2200A - 16493N - GND cable (between GND of E5270/41501 and B2201A/B2200A)
| Model | B2200A |
|---|

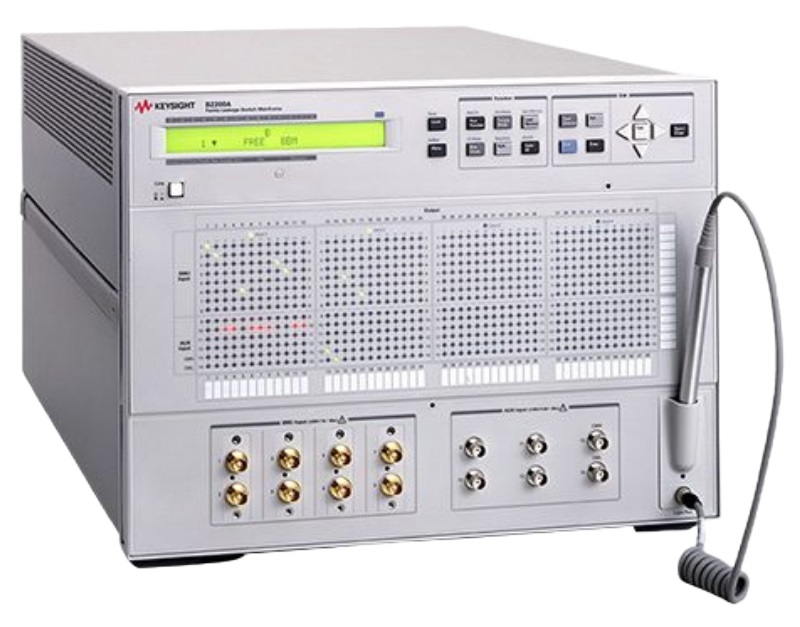

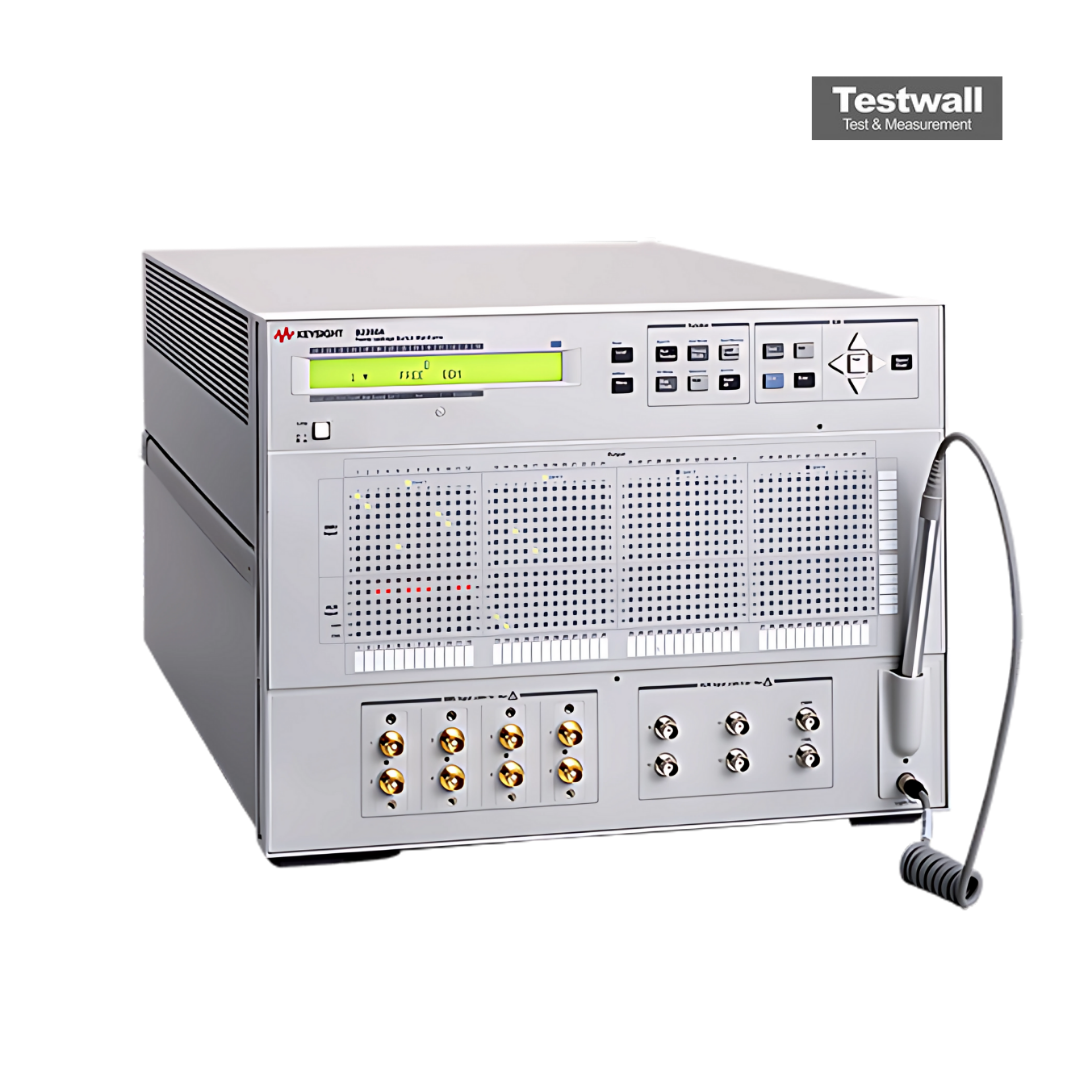

KEYSIGHT/AGILENT B2200A Femto Leakage Switch Mainframe
The Keysight (Agilent) B2200A Femto Leakage Switch Mainframe is used for making precise measurments on semiconductor devices, especially at very low cur levels. It reduces the cost of test by enabling automatic characterization tests without compromising the measurement performance of the semiconductor parameter analyzer. The B2200A enables highly sensitive cur measurements down to 1 femtoamp (fA) through the switch. It offers exceptional channel isolation of 100 teraohms (TΩ) for low-cur paths, minimizing interference between measurements. Keysight (Agilent) B2200A Femto Leakage Switch Mainframe
Keysight (Agilent) B2200A Femto Leakage Switch Mainframe features 14 concur internal paths enabling you to use all 8 triaxial inputs and all 6 BNC inputs at the same time. It supports a bandwidth of 30MHz, suitable for various dynamic measurements. B2200A is having bright display of the relay status for fast verification and debug of measurement setups. Front panel control supported via keypad or optional light pen. Keysight (Agilent) B2200A Femto Leakage Switch Mainframe works seamlessly with Keysight EasyEXPERT software for automated switch configuration and measurement control through an intuitive graphical user interface (GUI).
Specifications for the KEYSIGHT/AGILENT B2200A Femto Leakage Switch Mainframe Include:
| Maximum Output Ports | 48 |
| Isolation | 100 TΩ |
| Bandwidth | 30 MHz |
| Minimum Cur Measurement Resolution | 1 fA |
