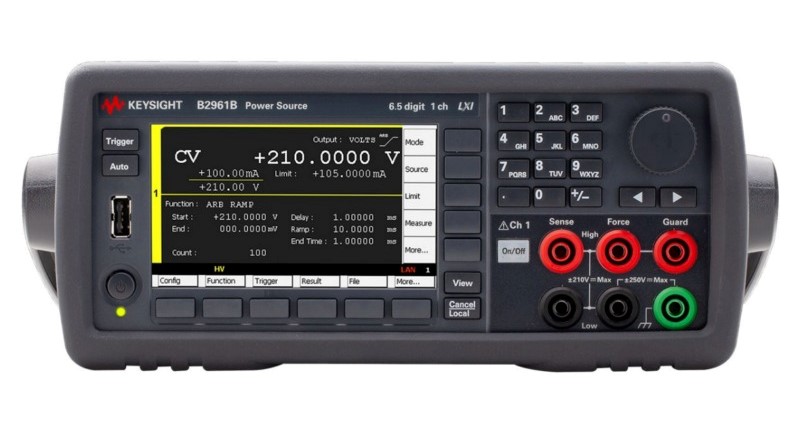

Keysight (Agilent) B2961B
| Atributo | Valor |
|---|---|
| Número de canales | 1 canal |
| Rango de voltaje | ±210 V |
| Rango de corriente | ±10 mA / ±100 nA (modo de baja corriente) |
| Resolución de voltaje mínima | 100 nV |
| Resolución de corriente mínima | 10 fA |
| Exactitud de voltaje | 0,03% + 300 µV |
| Exactitud de corriente | 0,03% + 100 fA |
| Velocidad de generación de forma de onda | Hasta 100.000 puntos/segundo |
| Interfaz de comunicación | USB, LAN (LXI), GPIB (opcional) |
| Potencia máxima de salida | 42 W |
Keysight (Agilent) B2961B Options:
- B2961B - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- B2961B - A6J - ANSI Z540-1-1994 Calibration
- B2961B - UK6 - Commercial Calibration Certificate with Test Data
| Model | B2961B |
|---|

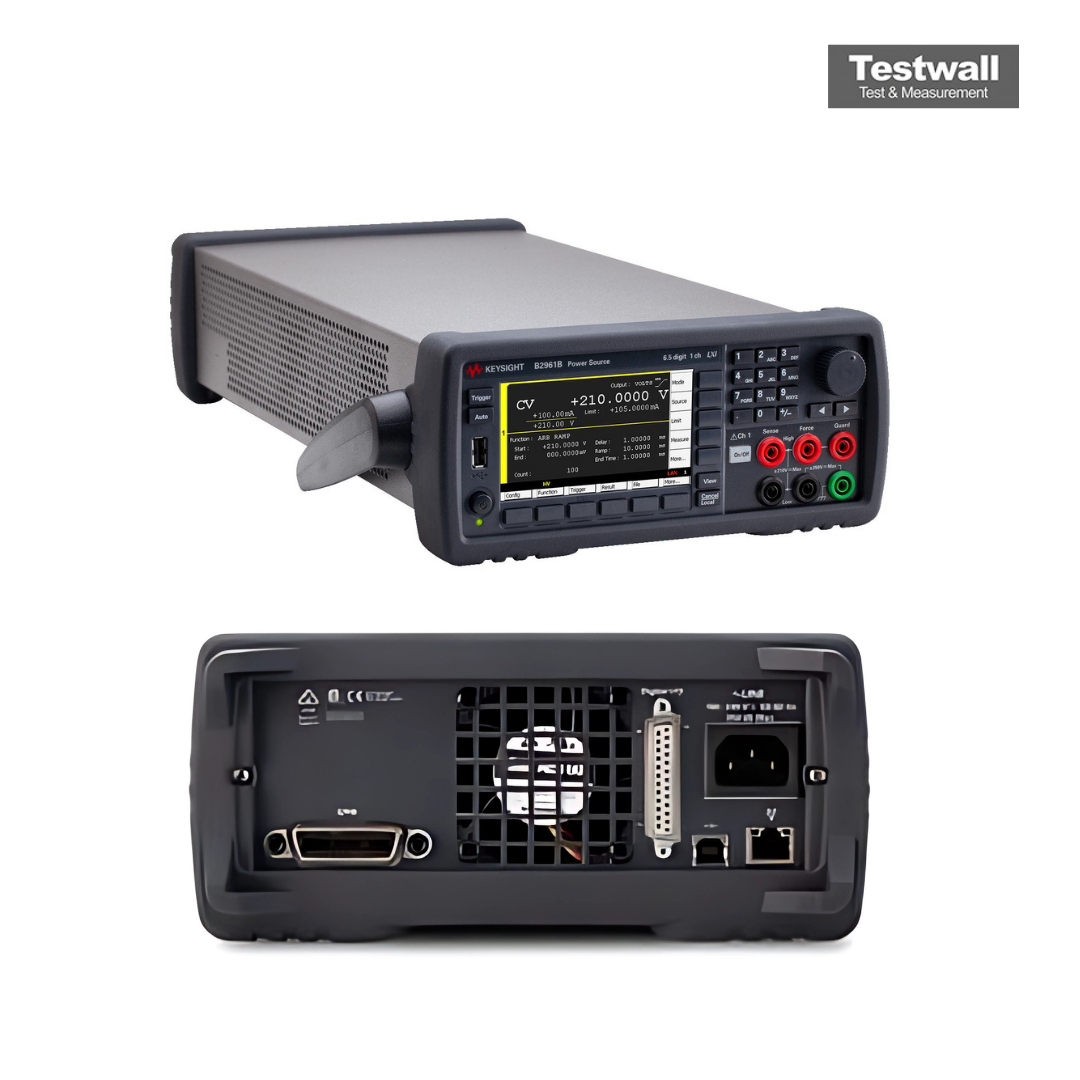

Keysight (Agilent) B2961B Low Noise Power Source
The Keysight B2961B 6.5 Digit Low Noise Power Source is a new bench-top power supply/source with revolutionary capabilities and functions not previously available. Its unique features include bipolar cur sourcing and sinking, a programmable output resistance feature, and a timedomain waveform viewer supported in the graphical user interface (GUI). In addition to these innovative bench-top power supply/source features, the B2961B can be controlled remotely using Keysight PC-based Pathwave BenchVue, Quick I/V Measurement Software or through any LXI compliant web browser.
The Keysight B2961B's superior performance and innovative functions make these instruments ideal companion power supplies/sources for use with other instruments such as network analyzers, spectrum analyzers, digital multimeters, and nano-voltmeters. For added convenience, the B2961B provides multiple viewing modes: single view and graph view. These capabilities not only increase test and evaluation efficiency, but they also make the instrument easy to use without the need to struggle through paper manuals.
Specifications for the Keysight (Agilent) B2961B Low Noise Power Source Include:
| Max. voltage | ± 210 V |
| Max. current | ± 3.03 A |
| Minimum resolution | 100 nV /10 fA |
| Channels | 1 |
