Keysight (Agilent) B2983B
| Atributo | Valor |
|---|---|
| Rango de medición de corriente | 100 fA a 20 mA |
| Resolución de corriente mínima | 100 aA (0,1 fA) |
| Rango de voltaje de fuente | 0 V a ±1000 V |
| Resolución de voltaje de fuente | 0,5 mV |
| Rango de medición de resistencia | Hasta 10 PΩ (10 × 10¹⁵ Ω) |
| Rango de medición de carga | Hasta 2 nC |
| Fuente de alimentación | 100/120/220/240 V CA, 50/60 Hz |
| Interfaz de comunicación | USB, GPIB, LAN (LXI) |
| Pantalla | Pantalla LCD a color de 4,3 pulgadas |
| Dimensiones (An × Al × Pr) | 213 mm × 88 mm × 459 mm |
Keysight (Agilent) B2983B Options:
- B2983B - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- B2983B - A6J - ANSI Z540-1-1994 Calibration
- B2983B - UK6 - Commercial calibration certificate with test data
| Model | B2983B |
|---|

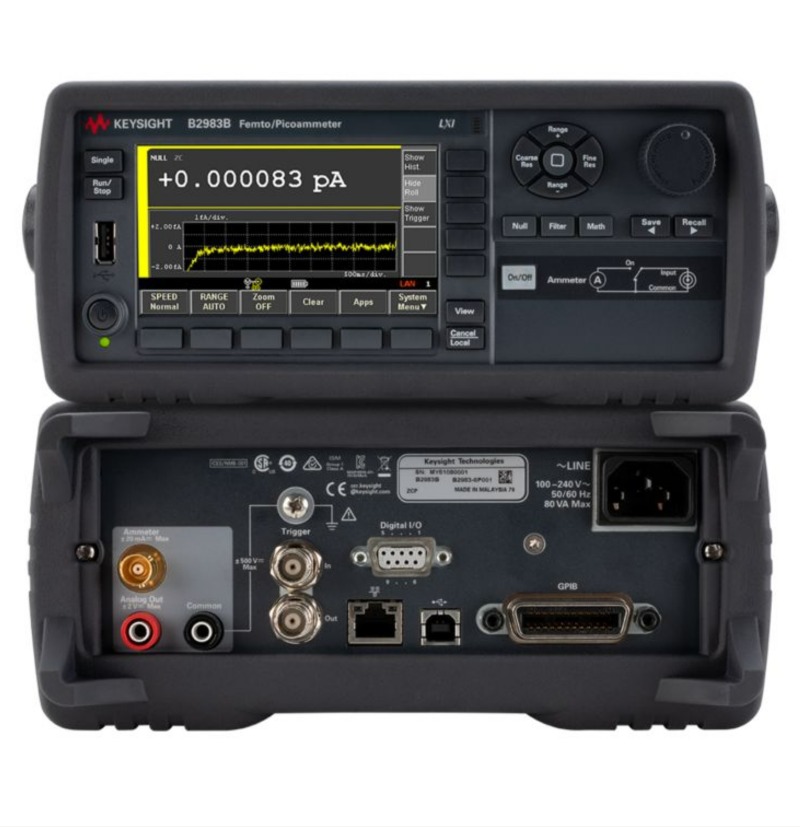

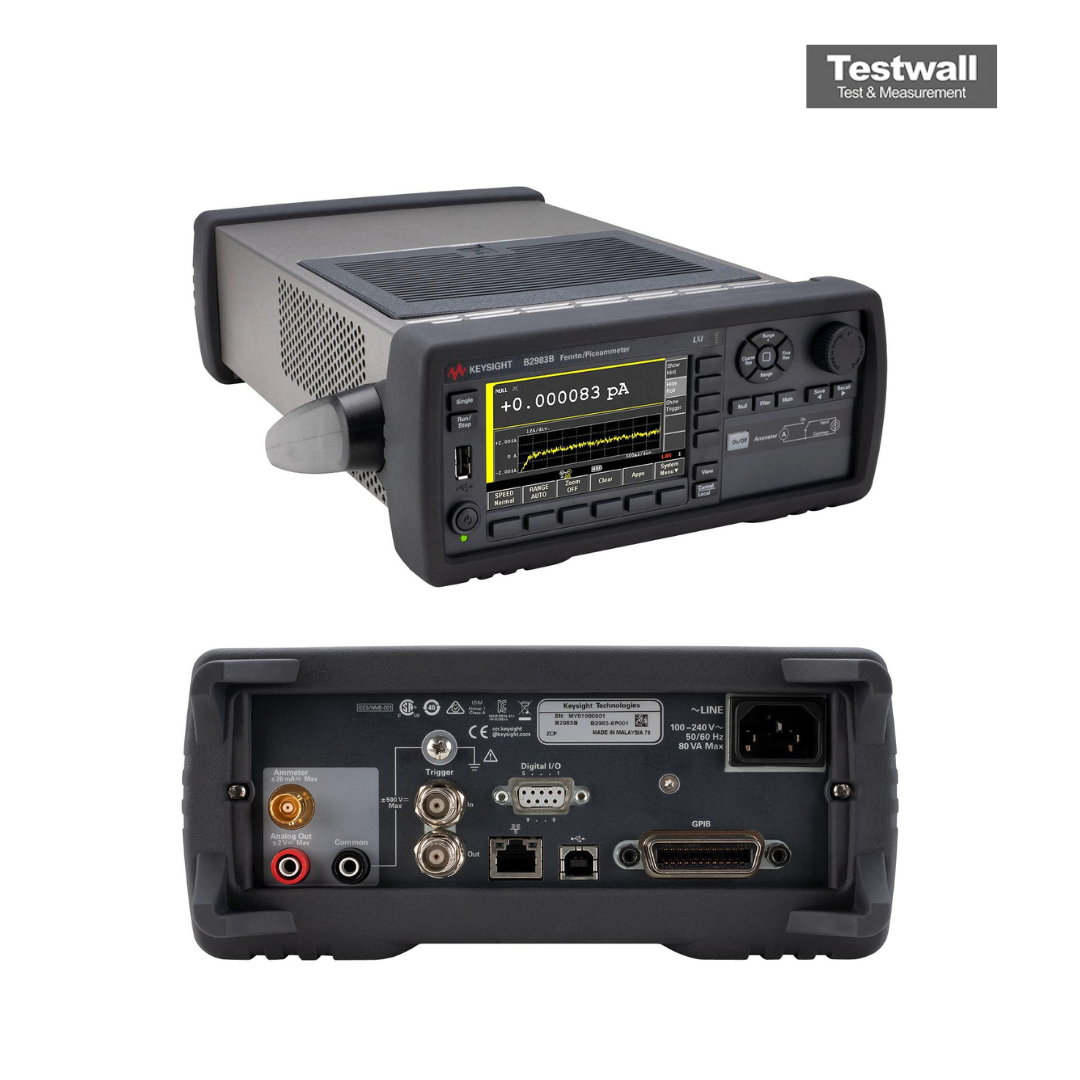

Keysight (Agilent) B2983B Femto/Picoammeter
The Keysight B2983B Femto/Picoammeter is the world's only graphical picoammeter that allows you to confidently measures small currents with 0.01 fA (0.01 x 10-15 A) resolution. In addition, battery operation eliminates AC line noise from your critical measurements. It possesses a 4.3 " color LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behavior and perform quick statistical analyses without a PC.
In addition to these impressive measurement capabilities, the Keysight B2983B has easy-to-use and convenient measurement assist functions that permit users with limited or no electrical engineering training to perform complicated electrical characterization operations with ease. Even when operating in AC mode with 0.1 PLC integration time, the B2983B's advanced design provides cur measurement performance that is much better than conventional picoammeters.
Specifications for the Keysight (Agilent) B2983B Femto/Picoammeter Include:
| Measurement resolution | 6.5 digits |
| Cur measurement | 0.01 fA - 20 mA |
| Minimum range | 2 pA |
| Maximum reading rate | 20,000 rdg/s |
